Product Details
Place of Origin: | Guangdong, China | Brand Name: | Sunnysam | Model Number: | SH-10W |
Specification: | Mini | Application: | Home | Output Voltage (V): | 18V |
Load Power (W): | 6~16W | Solar Power (W): | 10KW | Work Time (h): | 8-24 HOURS |
Product Description
Long time life energy saving solar power system for home
Solar Power (W): 10w
Work Time (h): 10h
Lead-acid battery:12v/7A

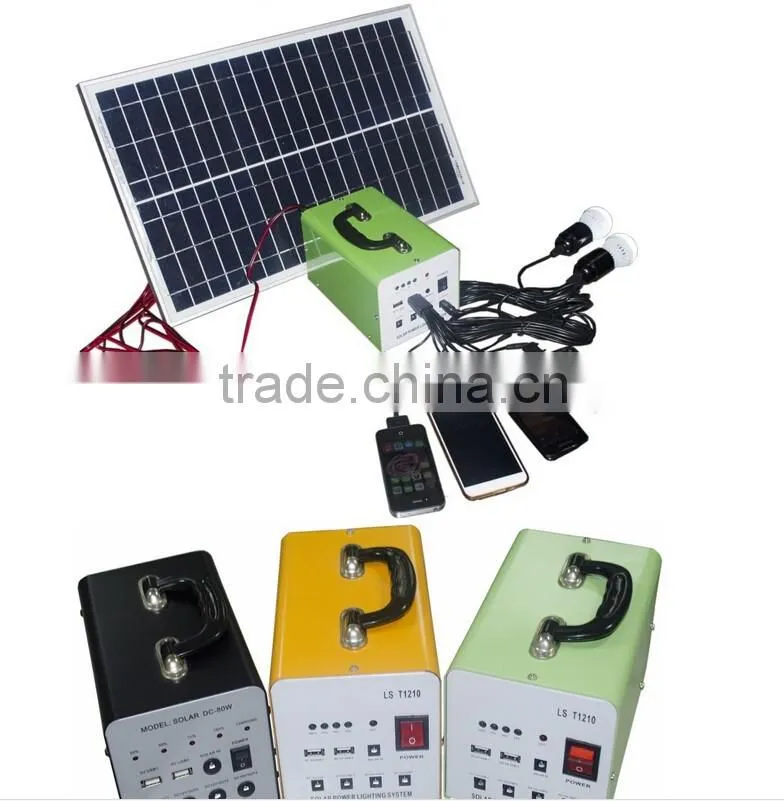

Product pictures:
Advantages:
1. Solar power system
2. Solar energy
3. Low cost
4. Quite
5. Environmental friendly, No emission
1. Features
1. Solar powered. Invert cost-free sunlight into power without consuming oil, gas, or coal. Improve life in area out of electricity network.
2. Durable, easy for transportation with appealing appearance. Made of polycrystal (monocrystal) high-efficient solar panel and toughened glass and framed by aluminum.
3. Equipped with LED display monitoring instant status of system.
4. Highly operable input and output system, requiring no adjustment for installation.
5. Equipped with maintenance-free storage battery, with protection from over-charge, over-discharge, over-load, and short circuit.
6. 4 output ports at 12V, 1 USB ports at 5.0V/2.0A.
7. Quite, fear-free from vibration and dust, environmental friendly. This system is definitely your first choice of green power supply where there is no electricity network.
2. Technical Specification
1. Solar panel: 10W/20W (polycrystal / monocrystal)
2. Storage batter capacity: 12V7AH/ 12V17AH
3. Controller capacity: 12V/7A
4. Operating time capacity: depends on actual load
5. Operating temperature: -20°C-60°C.
6. Size: 225MM*85MM*185MM
7. Net.: 5.8KG(7AH)9.8KG(17AH)
8. Useful life: ≥500 cycles of full charge and full discharge of the built-in battery.
9. Output Interface: 4 ports with output at 12V/1A, 1 USB Port with output at 5.0v/2A
3. Operating Instructions
1. Charging: place the solar penal exposed to direct sunlight; insert the plug of the solar penal into power outlet on the main device. Battery indicator illustrated by ‘High’,’ Middle’ and ‘ Low’ shows charging status as well as how much charge is left in the battery. Charging from other electricity source is optional.
2. Using with load: the system has three outputs and protection from overload and short circuit. In case of overload and short circuit, battery indicator keeps fleshing. Lifting overload by lowering the actual load will resume operation of the device. When batter power is low, battery indicator appears red as well as ‘Low’. Timely recharging resumes operation of the device and prolongs useful life of the battery. If possible, connect the main device to solar penal permanently.
3. USB output is 5.0V/1A, usable for digital products including mobile phones and cameras. Due to the variety of digital products, please prepare your own USB connection cables.
4. Product schematic
1. Solar panel input
2. DC power
3. 5V USB output
4. Power meter
5. 12V output
5. Disclaimer and Trouble shooting
1. Dismantling and modifying without permission are prohibited. Our company takes no responsibility for any intentional damage or any damage resulting from the abovementioned prohibited behavior and improper use.
6. Support Wholesale online
Contact Information:
Contact person: Mr. Michael or Mr.Sam
Company name: Shenzhen Sunnysam Technology Co., Ltd
Add:Fuwei Industrial Zone,Fuyong Street,Baoan District,Shenzhen City,Guangdong Province,China
Tel: 0086-15916916475
Skype: sunnysam-michael
