High Efficiancy Monocrystaline Silicon Portable Solar Indoor Night Light

High Efficiancy Monocrystaline Silicon Portable Solar Indoor Night Light thumbnail-1
High Efficiancy Monocrystaline Silicon Portable Solar Indoor Night Light photo-1
US$ 51.00 - 100.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sunnysam
Model Number:
SH-10W
Contact Supplier Request Quote Chat Now
Shenzhen SunnySam Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sunnysam
Model Number SH-10W
Specification Mini
Application Home
Output Voltage (V) 18V
Load Power (W) 24W
Solar Power (W) 20W
Work Time (h) 8-24 HOURS

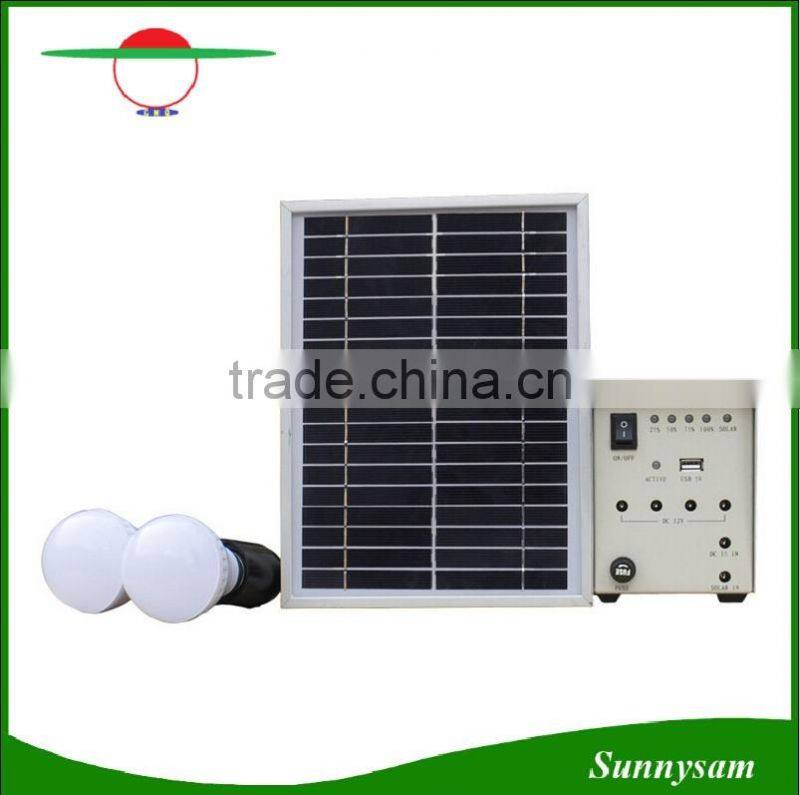

High efficiancy monocrystaline silicon portable solar indoor night light

Product Description





High efficiancy monocrystaline silicon portable solar indoor night light







 1. Features

1. Solar powered. Invert cost-free sunlight into power without consuming oil, gas, or coal. Improve life in area out of electricity network.

2. Durable, easy for transportation with appealing appearance. Made of polycrystal (monocrystal) high-efficient solar panel and toughened glass and framed by aluminum.

3. Equipped with LED display monitoring instant status of system.

4. Highly operable input and output system, requiring no adjustment for installation.

5. Equipped with maintenance-free storage battery, with protection from over-charge, over-discharge, over-load, and short circuit.

6. 4 output ports at 12V, 1 USB ports at 5.0V/2.0A.

7. Quite, fear-free from vibration and dust, environmental friendly. This system is definitely your first choice of green power supply where there is no electricity network.

 2. Technical Specification

1. Solar panel: 10W/20W (polycrystal / monocrystal)

2. Storage batter capacity: 12V7AH/ 12V17AH

3. Controller capacity: 12V/7A

4. Operating time capacity: depends on actual load

5. Operating temperature: -20°C-60°C.

6. Size: 225MM*85MM*185MM

7. Net.: 5.8KG(7AH)9.8KG(17AH)

8. Useful life: ≥500 cycles of full charge and full discharge of the built-in battery.

9. Output Interface: 4 ports with output at 12V/1A, 1 USB Port with output at 5.0v/2A



Model

SH-20W

Solar panel

10W/18V

Controller

12V/7A

Battery

12V7AH (maintenance free sealed lead acid storage battery)

Type

Solar light/  solar home system

Intelligent control

PCBA

Output voltage

DC12.0V(4Pcs)

USB5V(1Pcs)

Size

225MM*85MM*185MM

Weight

5.8KG(7AH)

9.8KG(17AH)

Panel Size

350M*290M*18MM(10W)

Fully charge time from solar panel

12hours

Working time of 3W LED Light

20 hours (7AH)

Accessory

4Pcs * 3W LED Bulb 5m Wire cable   (17AH)

1Pcs *USB charger connector

20 feet container

1140 pcs(7AH)



3. Operating Instructions

1. Charging: place the solar penal exposed to direct sunlight; insert the plug of the solar penal into power outlet on the main device. Battery indicator illustrated by ‘High’,’ Middle’ and ‘ Low’ shows charging status as well as how much charge is left in the battery. Charging from other electricity source is optional.

2. Using with load: the system has three outputs and protection from overload and short circuit. In case of overload and short circuit, battery indicator keeps fleshing. Lifting overload by lowering the actual load will resume operation of the device. When batter power is low, battery indicator appears red as well as ‘Low’. Timely recharging resumes operation of the device and prolongs useful life of the battery. If possible, connect the main device to solar penal permanently.

3. USB output is 5.0V/1A, usable for digital products including mobile phones and cameras. Due to the variety of digital products, please prepare your own USB connection cables.



4. Product schematic

1. Solar panel input

2. DC power

3. 5V USB output

4. Power meter

5. 12V output



5. Disclaimer and Trouble shooting

1. Dismantling and modifying without permission are prohibited. Our company takes no responsibility for any intentional damage or any damage resulting from the abovementioned prohibited behavior and improper use.



6. Support Wholesale online
