Technical parameters
Model |
KX-5188A18 |
Rated Power output |
18KVA |
Frequency rang |
100-200KHZ |
Single- phase input |
One-phase 220V /50HZ |
Current input |
5-140Ax3 |
Efficiency |
95% |
Duty cycle |
100% |
Volume(mm 3) |
550mmx250mmx500mm |
Net Weight |
28KG |
Gross weight |
40KG |
Cooling water flow |
hydraulic pressure≥0.2MPa,flow rate:5-20L/Min |
Cooling water temperature |
≤ 40°C |
Waterway of power supply |
Control box: 2 inlets ,2 outlets |
Application |
Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc fastener local heating, forging, melting, high frequency induction heating equipment. |

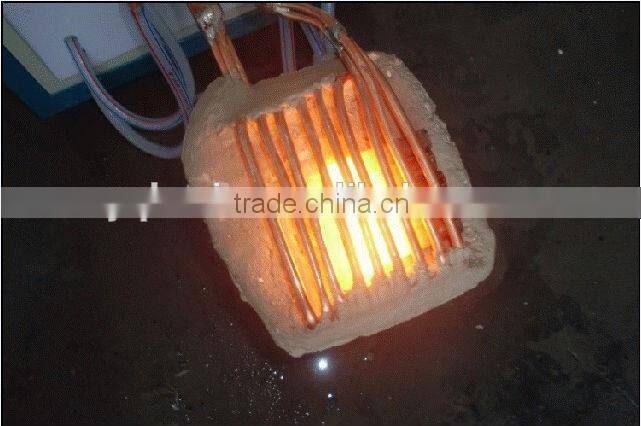

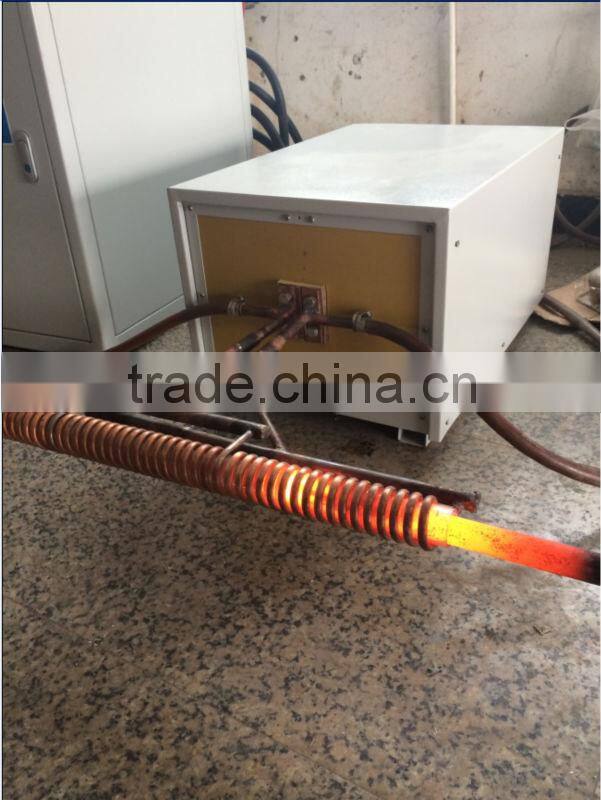

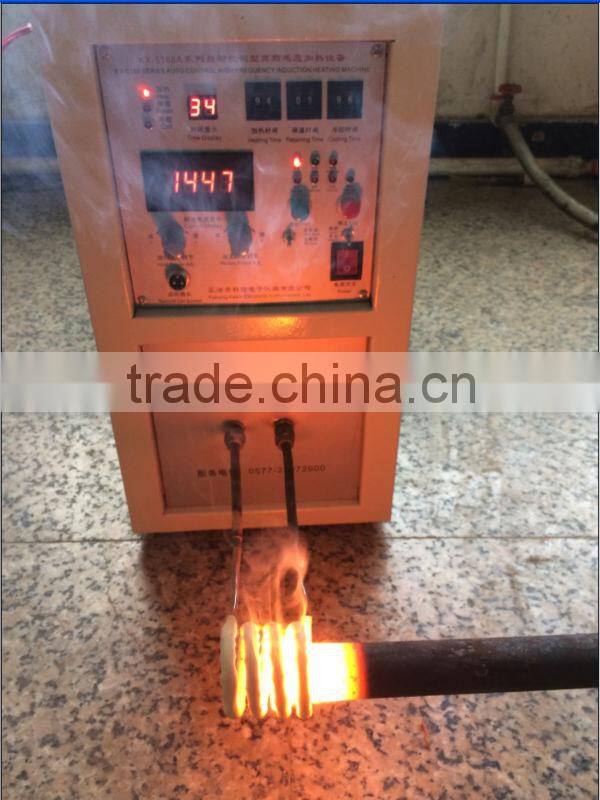

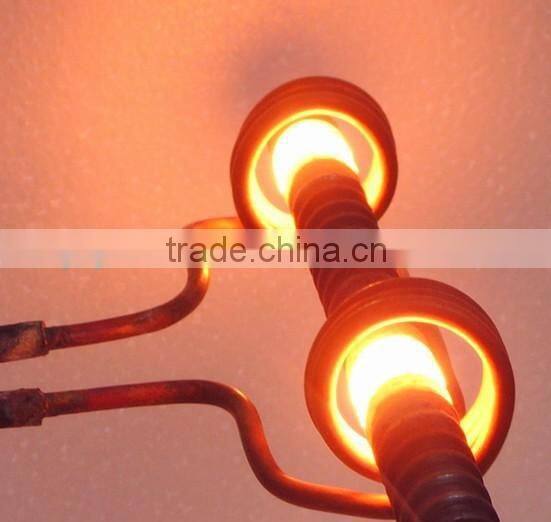

Renderings:
Characteristics
1)The digit phase locked:
The digit phase locked the technique realizes the frequency is automatic to follow,can adapt to every kind of inductor automatically.
2)The module piece turns the design:
The adoption drives module a control,insuring the dependable of the equipments,maintaining easily.
3)The resonance flaps to change frequency technique :
The adoption resonance flaps to change frequency then equipments the whole efficiency ≥90%, efficiently, economyenergy,consume the electricity measures only for electronics the tube inductor 20%-30% of the heating equipments.
4)The Whole solid turns:
Adoption IGBT inverter device, high frequency, The physical volume is small, the weight is light.
5)Simpleton type design:
Install simple,have no to need to adjust to try, usage convenience.
6)The safety is dependable:
The equipments has no ten thousand the high voltageope ration safety, can continue 24 hours work.
Product details
1. deeply the heat shaping (change to high frequency):
A. Various standard a tight firmware and other machine piece, hardware tool, handle drill, keep the hot upsetting. keep the hot cutting. it circle steel of the diameter 16 mms. heat 3s-5s or so proceeding to squeeze to squeeze to shaping then.
B. to the metals mate rail. to neat or to back the fire, in order to pull to stretch, the shape presses flower etc. , for example the steel pipe pulls to stretch. bend the tube and hit head, the steel wire, steel wire heats to make the nail. the stainless steel products to anneal ,pulling to stretch, rising the type .
2.the heat treatment ( Chang to High frequency first)
Various hardware tool, electricity-moves components, liquid-presses components, Gas-moves components, Auto car-components, Motorcar-components, etc. machine metals parts, the Quenching for surface, of inside bore or part or for the whole. for example :Quenching for hammer knife. shear. pliers and every kind of stalk. cam. chain belt gears etc. and large machine beds lead the orbit with the cast-iron the Quenching Ductile Iron.
domestic numerous factory productions chain and machine tool leading the orbit they are many have adopted the equipments of our company proceeds the heat treatment.
3.WELD,DRILL (change to high frequency)
Carbide cutting tools weld, for example: Tuning tool, Milling cutter, Planning tool, Diamond saw-toothed weld, Saw tooth weld, grinding machine tool welds, drill the machine tool welds blade tool welds .The other metals material reunites to welds. Such as the brass welds ,red copper parts welds, valve door welds. stainless steel a bottom welds etc.
Welding Display
Packing Details:Export standard packing,inner carton outer wooden box,double protection
Delivery Details:In stock,in one day after geting payment

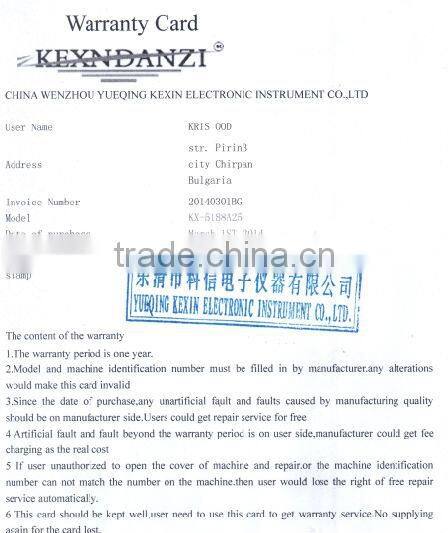

Guarantee And Off Sale Service:
1 One year guarantee for the whole machine except for the shipping cost of warramty parts.
2 24 hours technical support by mail or skype.
3 Using pictures or video to guide user in time.
Anything Need Help,Pls Be Free To Contract:
China supplies induction heating power supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use ShangHai port, it can appoint as you like.
5. How about the payment terms and delivery time?
Payment terms for any machines: 100% T/T/ Western Union
The machine delivery time is in 1 day if no any special adjustment requirest from clints.
6. If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade platform and has been mature those
Years, every supplier on it has paid large integrity fund, and we have Chinese business licenses which can be checked
On China official website or we can show it to you, so that situation will never appear, please be assured.
7. Is your goods has CE certificate?
Yes, all our goods has CE certificate. All machines are high quality goods.
8. What is your nature of your company: Dealer or factory?
We are manufacturer and have a big factory, warmly welcome to visit our factory and contact us.
