China best high quality machine KX-5188A18 high frequency induction welding device
Technical Features
Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.
High frequency circuit are all worked as following:
Technical Parameters
Model |
KX-5188A18 |
Rated Power output |
18 KW |
Frequency rang |
30-80 KHz |
Three- phase input |
One-phase 220V /50HZ |
Current input |
5-45A |
Efficiency |
95% |
Duty cycle |
100% |
Volume(mm 3) |
550mmx250mmx500mm |
Net Weight |
28KG |
Gross weight |
40KG |
Cooling water flow |
hydraulic pressure≥0.2MPa,flow rate:5-20L/Min |
Cooling water temperature |
≤ 40°C |
Waterway of power supply |
Control box: 2 inlets ,2 outlets |
Application |
Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc fastener local heating, forging, melting, high frequency induction heating equipment. |

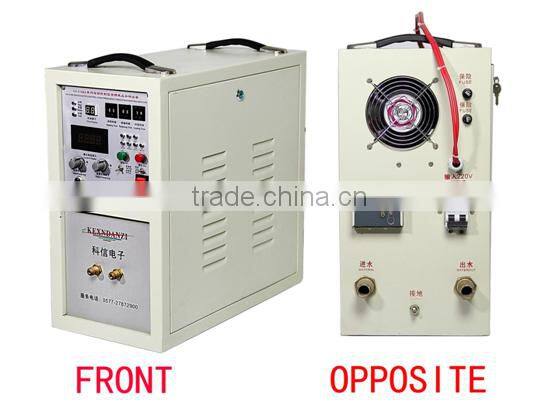

Product details figure

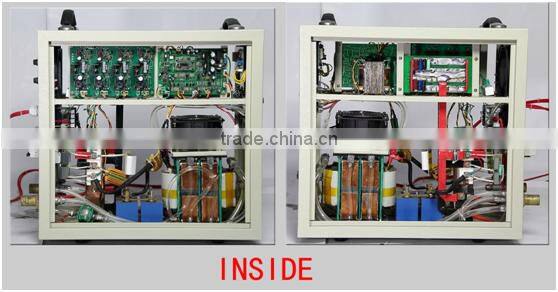

Main Parts Introduction
1) Germany SIEMENS INFINEON IGBT Module(40-60KHZoscillation frequency,fast response time, high arcstability, almost spatter-free welding)
2) Japan Nichicon electrolytic capacitor(filter capacitor)
3)signal circuit, drive circuit board ,control circuit board and components are adopted:Toshiba, Hitachi,Motorola,China's top manufacturers
4)international advanced all-solid-state semiconductor power devices
5)imported transistor integrated block
6)high speed control tube

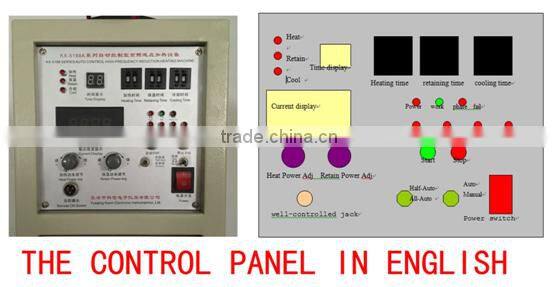

7)with perfect control,protection,alarm display circuit,machine could get full automatic tracking frequency, continuous adjustable power,safe and dependable protection,clear and accur data display and etc technical advantage
8)according to the frequency and power,we offer various model of different types and design.
9) Superiority :fast heating,wide application,portable volume,easy installation,simple operation
10)Wide applied to different kind of work piece melting,annealing,welding,quenching,forging,hardening and other heat treatment

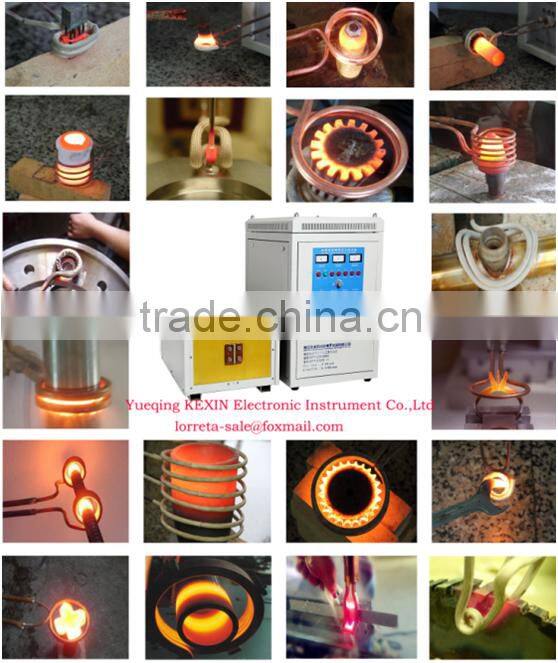

Application range:
Heat Treatment (surface hardening, quenching, annealing, tempering)
1. Hardening parts of automobile, motorbike, mold, agricultural machinery.
2. Quenching machinery parts, such as: all kinds of gear wheel, chain wheel.
3. Hardening the industrial of machine tool, such as bed guide way of machine tool.
4. Heat treatment pliers, spanner, screwdriver, drill, axes, spiker
5. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
Melting
Non-ferrous and ferrous metals melting
Precious metal melting, like gold, sliver, platinum,etc.
Semiconductor material melting
Specialized steel, iron, copper melting
Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy,etc.
Welding
1.welding diamond saw blade, carbide saw blade welding and diamond cutting tools, grinding tools, drilling welding.
2. carbide cutting tools for machining welding. Such as turning, milling cutter welding.
3. mining tools, welding, such as "one" bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, a variety of shearer, boring machine pick a variety of welding.
4.The welding of various wood working tools, such as various woodworking planer, milling, and welding a variety of woodworking drill.
Forging
Hot forming all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed.
Packaging & Shipping
Packing Details:Export standard packing,inner carton outer wooden box,double protection
Delivery Details:In stock,in one day after getting payment.
Our Team
Our exhibition
Public welfare charity
Company Information
Our Services
Pre-sale service:
We will recommend the most suitable machine for customers according to their requirements
In-sale service:
(1) We will strictly manufacture the machine according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly check up the machine,before delivery, only good machine will be sent to customers.
(4) We will delivery on time.
After-sale service:
(1)We will be free to guide the installation, commissioning and test run, by sending the installation drawings, and sometimes to call or send e-mail.
(2)We will carry out a one-year warranty period (e.g. excluding normal wear and tear parts and parts damage compensation caused by improper operation.
(3)We will be free to replace all equipment components during warranty period. The potential problems of customer service and customer service after sales.
(4)Provide long term technical support. Also for different work pieces, to guide and help to produce the inductor.
FAQ
1. Which countries your products are exported to?
Our products have been sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty period, the spare parts for replacement are free. And we provide life long technical support and other assistance.
3. How to install your machine?
We have installation instruction papers and videos, we will teach till you can do it yourself.
4. What about delivery?
We offer assistance on seeking best shipping way and suitable forwarder .
Any loading port and any destination city address are both OK for us.
5. How about the payment terms and delivery time?
Payment terms for any machines: 100% T/T/ Western Union/ESCROW with buyer protection.
We have machine in stock,so we surely will send out the machine after getting payment in one day ,if no any special adjustment request from clients.
6. If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade website and it has run very well these years.
Every supplier on it has paid a large amount membership fee, and spare much effort to manage their business well.
We have Chinese business licenses which can be checked on Chinese official website or we can show it to you,and these licenses are also kept back-up on Alibaba
If we do anything illegal without honest,we would get punished very badly after you Sued that your concern will never appear, please do not worry
7. Is your goods has CE certificate?
Yes, all our goods has CE certificated. All machines are high quality goods.
8. What is your company: Trader or Manufacturer ?
We are manufacturer and have a big factory , warmly welcome to visit our factory and contact us.
