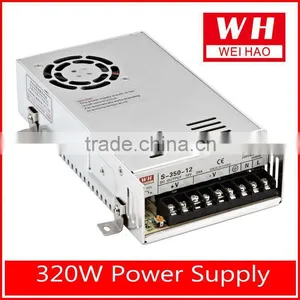

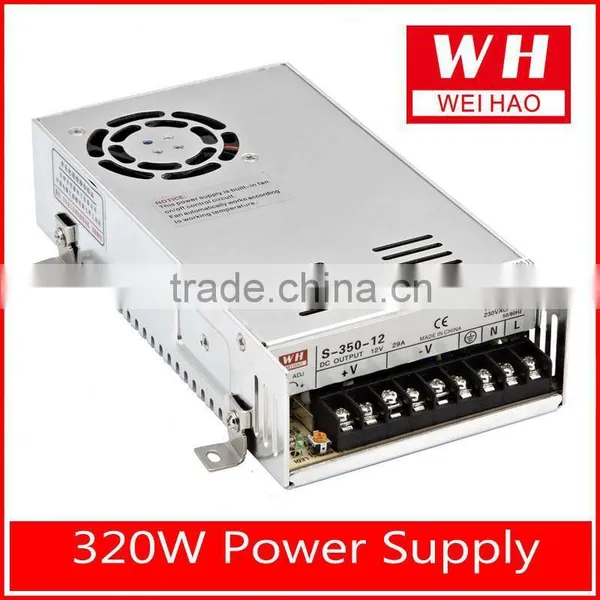

Different Types 320w Cctv Psu

Name: Different Types 320w Cctv Psu
Brand: WeHo
SKU: 120504885

Different Types 320w Cctv Psu thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

WeHo

Model Number:

S-320-13.5

Output Power:

301 - 400W

Contact Supplier Request Quote Chat Now

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name WeHo

Model Number S-320-13.5

Output Power 301 - 400W

Output Type Single

Output Voltage 13.5V

Output Frequency 50Hz/60Hz

Output Current 23.7A

320w Cctv Psu

S-320 switch power supply,cctv psu
1.CCC CE RoHs approved
2.100% full load burn-in test
3. AC input selectable by switctch

1.Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. Forced air cooling by built-in DC fan

4. Cooling Fan ON-OFF auto control

5. 100% full load burn-in test

6. Fixed switching frequency at 90KHz

7. Low cost, high reliability

8. 18 months warranty

2.Specification:

Model	S-320-5	S-320-7.5	S-320-12	S-320-13.5	S-320-15	S-320-24	S-320-27	S-320-48
DC output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage range(Note:2)	2%	2%	1%	1%	1%	1%	1%	1%
Rated output current	50A	36A	25A	22A	20A	12.5A	11A	6.5A
Output current range	0-50A	0-36A	0-25A	0-22A	0-20A	0-12.5A	0-11A	0-6.5A
Wave and noise(Note:3)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Inlet stability(Note:4)	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Load stability(Note:5)	1%	1%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
DC output power	250W	270W	300W	297W	300W	300W	297W	312W
Efficiency	73%	76%	74%	79%	78%	81%	82%	83%
Adjustable range for DC voltage	4.5~5.6V	6~9V	10~13.2V	12~15V	13.5~18V	20~26.4V	26~32V	41~56V
Input current	6A/115V 3.5A/230V
AC inrush current	18A/115V 36A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~135% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	5.75~6.75V	9.4~10.9V	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	33.7~39.2V	57.6~67.2V
High-temperature protection	ERH3>=65~70c Fan on, <=55~60c Fan off,>=80~85c, Cut off ouput(5~15)~(24~48V)
Setup, rise , hold up time	2ms,20ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC

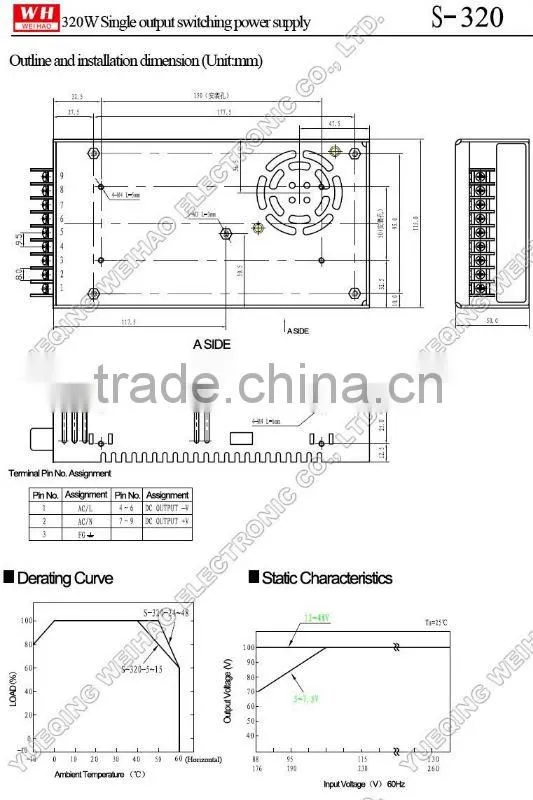

Working temperature and humidity	-10c~+60c(Refer to output derating curve), 20%~90%RH
Weight	1.15Kgs
Safety standards	Design refer to Ul 1950
EMC standards	Design refer to FCC Part 15J Part 15 J class A
Note: 1. The testing condition for the paramenter above is: 230VAC input, rated load, 25c 70% RH. Temperatuer. 2. Error: include the setting error, line stability and load stability.(Note:5). 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inlet woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100%
