Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > CE RoHS Approved 600w Large Power Switch Power Supply

CE RoHS Approved 600w Large Power Switch Power Supply

Name: CE RoHS Approved 600w Large Power Switch Power Supply
Brand: WeHo
SKU: 120504979
Availability: InStock

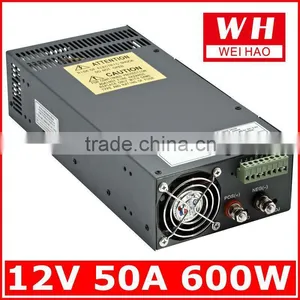

CE RoHS Approved 600w Large Power Switch Power Supply thumbnail-1

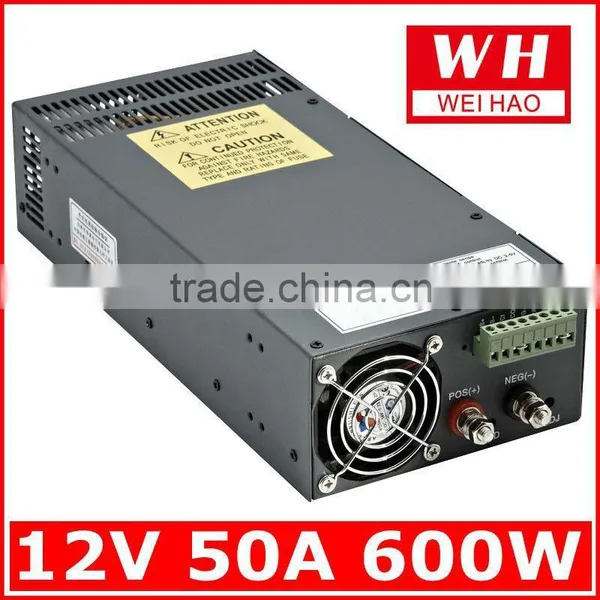

CE RoHS Approved 600w Large Power Switch Power Supply photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

WeHo

Model Number:

SCN-600

Output Power:

Other, >500W

Contact Supplier Request Quote Chat Now

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name WeHo

Model Number SCN-600

Output Power Other, >500W

Output Type Single

Input Voltage 220V

Output Voltage 12VDC

Output Frequency 50HZ

Output Current 50A

600w Large Power Switch Power Supply

large power switch power supply
1.CE RoHS approved
2.2years warranty
3.84% efficiency
4.100% test

large power switch power supply

1.Specification:

MODEL		SCN-800-12	SCN-800-15	SCN-800-24	SCN-800-48
OUTPUT	DC Voltage	12V	15V	24V	48V
	Voltage Tolerance	1%	1%	1%	1%
	Rated Current	66A	54A	33A	16.6A
	Current Range	0-66A	0-54A	0-33A	0-16.6A
	Rated Power	800W	800W	800W	800W
	Ripple & Noise	150mVp-p	150mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	5%; Can adjust from 40%~100% output voltage by external control 2-5V
	Setup, Rise, Hold Time	800ms, 50ms, 16ms at full load
INPUT	Voltage Range	90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC
	AC Current	13A/115 VAC 8.0A/ 230 VAC
	Efficiency	80%	81%	85%	87%
	Inrush Current	60A/230V
	Leakage Current	3.5 mA/240VAC
PROTECTION	Over Load	110%~135%
		Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
	Over Voltage	110%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temp	TSW1(Power transistor) When temp. >100 C, shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10C~+65C,20%~90 %RH
	Storage Temp., Humidity	-20C~+85C,10%~95 %RH
	Vibration	10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
	Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL1950,CSA22.2,IEC60950
	EMC Standard	Design refer to FCC Part 15 Class A
OTHERS	Weight	2.3Kg;
	Packing	8pcs/24.0kg/CARTON
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.
	3.Tolerance: includes set up tolerance, line regulation and load regulation.
	4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
