Competitive 50w Dual Power Supplied Ce

Competitive 50w Dual Power Supplied Ce thumbnail-1
Competitive 50w Dual Power Supplied Ce photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
weihao
Model Number:
D-50B
Output Power:
101 - 200W
Contact Supplier Request Quote Chat Now
Zhejiang Weihao Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name weihao
Model Number D-50B
Output Power 101 - 200W
Output Type Dual
Input Voltage 110V
Output Voltage 5V 24V
Output Frequency 50HZ
Output Current 6A 1A
50w Dual Power Supplied Ce

supply rs power
1.CE RoHS
2.2 years warranty
3.87% efficiency
4.high quality

supply rs power supply rs power

1.Specification:

Model D-50A

D-50B
CH1 CH2

CH1

 CH2
DC output voltage 5V 12V

5V

 24V
Output voltage range(Note:2) 2% +5,-8%%

2%

 8%
Rated output current 6A 2A

6A

 1A
Output current range 1-6A 0.3-2A

1-6A

 0.2-1A
Wave and noise(Note:3) 50mVp-p 100mVp-p

50mVp-p

 100mVp-p
Inlet stability(Note:4) 0.5% 1%

0.5%

 1%
Load stability(Note:5) 0.5% 5%

0.5%

 8%
DC output power 54W

54W
Efficiency 73%

73%
Adjustable range for DC voltage CH1; +10, -5% CH1; +10, -5%
Input current

1.3A/115V0.65A/230V
AC inrush current

Cold-start current 18A/115V 36A/230V
Leakage current

<0.5mA/240VAC
Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient

0.03%/c(0~50c)ON+5V
Setup, rise , hold up time

200ms,50ms, 30ms
Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance Input and output internal: Input and enclosure, Output and enclosure:500VDC/100M
Working temperature and humidity -10c~+60c(Refer to output derating curve), 20%~90%RH
Overall dimension

159×97×38mm
Weight

0.52Kgs
Safety standards

Meet UL requirement (Not apply for the mark)

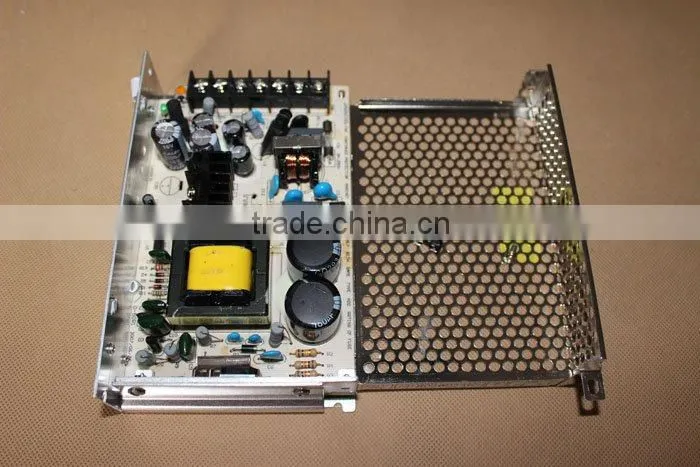

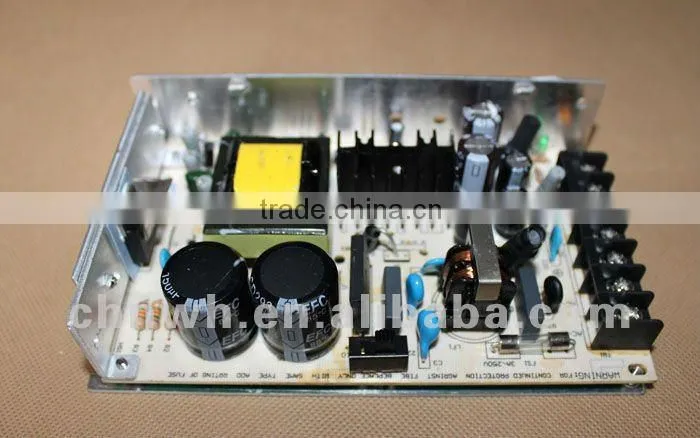

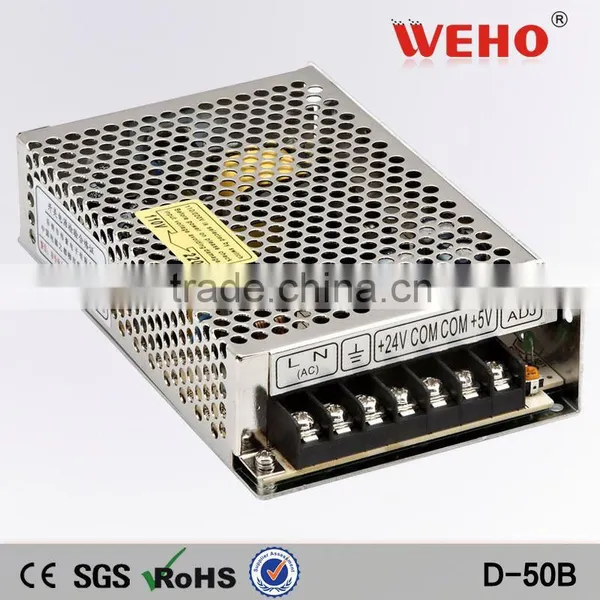

2.Products showcase:

supply rs power

3. Packing:supply rs power

we use 4 trips to reinforce our carton,

the international standards package methods guaranteed our goods safety during transportation

4.Certificate:supply rs power

we are a professional manufacturer of power supplies ,

all of our products have approved CE ROHS and ISO9001:2008

5.Feedback :supply rs power

We get a good feedback from our customers ,what we want to do is make your business easy .
