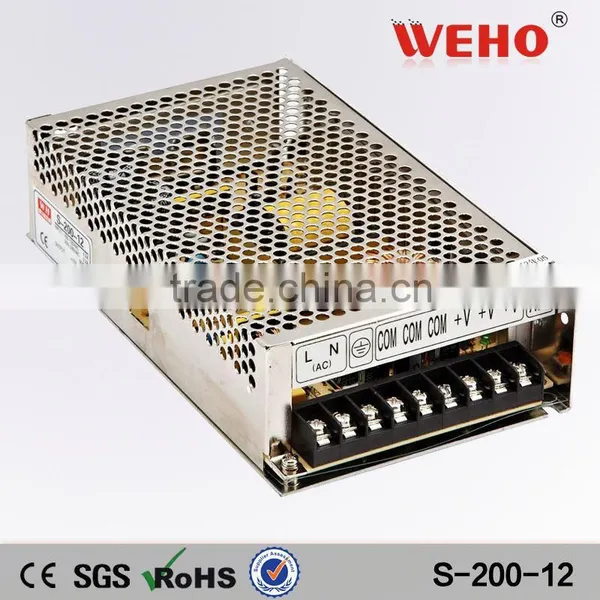

CE RoHS Approved Factory Outlet Power Electronics

CE RoHS Approved Factory Outlet Power Electronics thumbnail-1
CE RoHS Approved Factory Outlet Power Electronics photo-1
US$ 10 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WeHo
Model Number:
S-200-12
Output Power:
101 - 200W
Contact Supplier Request Quote Chat Now
Zhejiang Weihao Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Guangzhou Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WeHo
Model Number S-200-12
Output Power 101 - 200W
Output Type Single
Input Voltage 220V
Output Voltage 12V,if not you need , we will customize to u
Output Frequency 50Hz
Output Current 16.5A

Power Electronics

1.Specification:

Model S-200-5 S-200-12 S-200-24 S-200-48
DC output voltage 5V 12V 24V 48V
Rated output current 40A 16.7A 8.3A 4.2A
Output current range 0-40A 0-16.7A 0-8.3A 0-4.2A
Wave and noise 100mVp-p 100mVp-p 150mVp-p 150mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5%
Load stablity 1% 0.5% 0.5% 0.5%
Efficiency 80% 85% 85% 86%
Adjustable range for DC voltage 10% 10% 10% 10%
AC input voltage range 85~132VAC/176~264VAC selected by switch
Input current 4.5A/115VAC 2.5A/230VAC
AC INnrush current Cold-start current 20A/115V 35A/230V
Over load protection 105%~150% rated output power
Protection:Hiccup mode,recover automatically
Over voltage protection 5.6~6.6V 13.8~16V 27.5V~32V 55~64V
Protection:Shut down output voltage
Setup rise hold up time 200s,100ms,20ms
Withstand voltage I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity

-10C~+60C,20~90%RH
Overall dimension 199*110*50mm /20pcs per carton
Safety standards Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
Weight 0.85Kgs

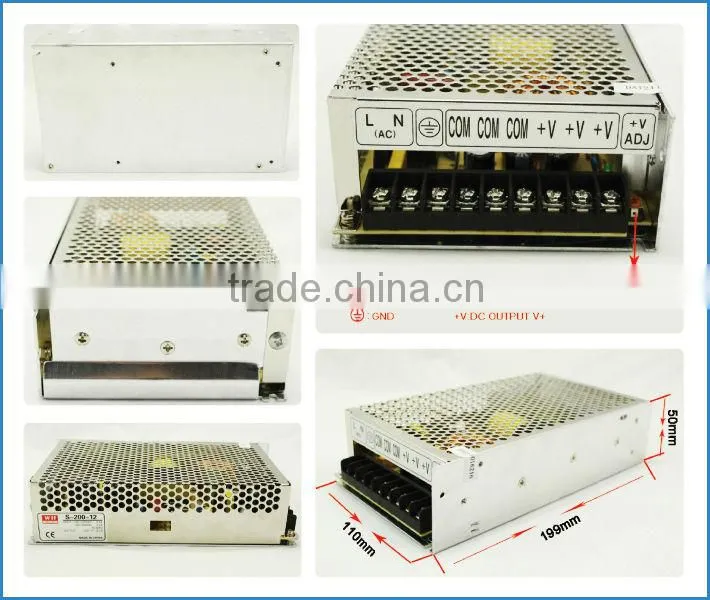

2.Model Show:Power Electronics



3. Packing:Power Electronics

we use 4 trips to reinforce our carton,

the international standards package methods guaranteed our goods safety during transportation

4.Certificate:Power Electronics

we are a professional manufacturer of power supplies ,

all of our products have approved CE ROHS and ISO9001:2008

5.Feedback :$zhanwei$

We get a good feedback from our customers ,what we want to do is make your business easy .
