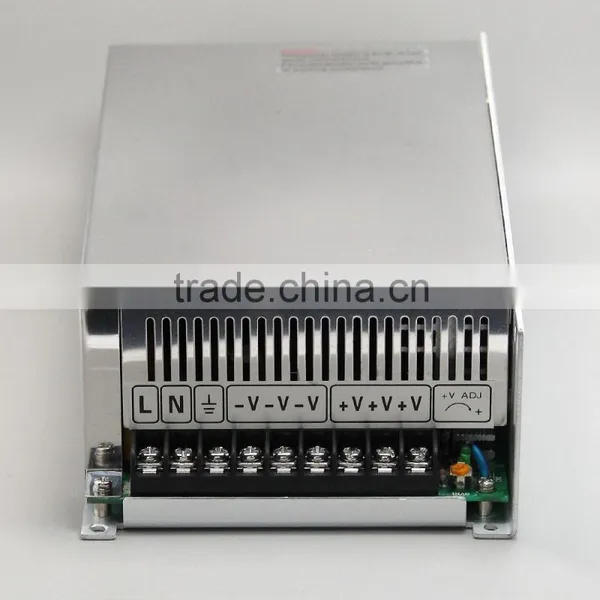

2 Years Warranty 30v Indoor Led Driver Power Supply
US$ 32 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
weho
Model Number:
S-500-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Price 110v Dc/dc ConverterNegotiableMOQ: 1 Piece -
CE ROHS Apporoved 350w Smps dc 12v Single Output Power SupplyUS$ 16 - 20MOQ: 1 Piece
-
CE RoHS Approved Factory Outlet S-200-12 12v Switching PowerUS$ 10 - 15MOQ: 1 Piece
-
CE RoHS Approved Factory Outlet Power ElectronicsUS$ 10 - 15MOQ: 1 Piece
-
CE RoHS Approved Factory Outlet Led Driver ManufacturerUS$ 10 - 15MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
weho
Model Number
S-500-12
Output Power
401 - 500W
Output Type
Single
Input Voltage
220V
Output Voltage
12V,110v or 220v
Output Frequency
50Hz
Output Current
40A

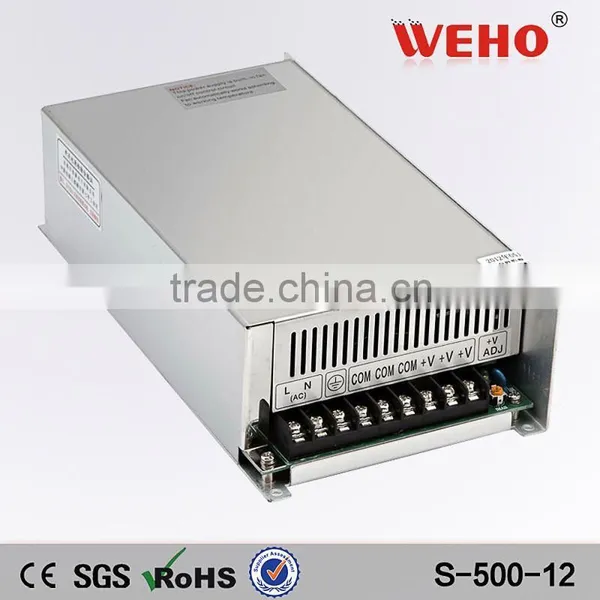

2 Years Warranty 30v indoor led driver Power Supply
Product Description
| MODEL | S-500-12 | S-500-13.5 | S-500-15 | S-500-24 | S-500-27 | S-500-48 | |
| OUTPUT | DC VOLTAGE | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 40A | 36A | 32A | 20A | 18A | 10A | |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 36A | 0 ~ 32A | 0 ~ 20A | 0 ~ 18A | 0 ~ 10A | |
| RATED POWER | 480W | 486W | 480W | 480W | 486W | 480W | |
| RIPPLE & NOISE (max.) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | 10 ~ 13.2V | 12 ~ 15V | 13.5 ~ 18V | 20 ~ 26.4V | 26 ~ 32V | 41 ~ 56V | |
| VOLTAGE TOLERANCE | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | |
| LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | |
| LOAD REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | |
| SETUP, RISE, HOLD TIME | 200ms, 50ms, 20ms at full load | ||||||
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC (110VAC input can be custom-made) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 84% | 84% | 84% | 86.0% | 87.0% | 88% | |
| AC CURRENT | 7A/115V 3.5A/230V | ||||||
| INRUSH CURRENT (max.) | 18A/115V 36A/230V | ||||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 135% of rate load | |||||
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 18 ~ 21V | 27.6 ~ 32.4V | 31 ~ 36.5V | 57.6 ~ 67.2V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | |||||||
| FAN CONTROL,O.T.P. | RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down | ||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60ºC, 20 ~ 90% RH non-condensing | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | 0.03%/ºC (0 ~ 50ºC) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UL1950, TUV EN60950-1 | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | ||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A | ||||||
| OTHERS | MTBF | 138.6K hrs min. MIL-HDBK-217F (25ºC) | |||||
| DIMENSION | 240*125*65mm (L*W*H) | ||||||
| PACKING | 1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB | ||||||
Packaging & Shipping
Company Information
Our Services
We devote ourselves to offering humanized serving for each customer! No matter the business is big or small, we are always doing our best to offer our best services to our customers, and developing together
1. Two years warranty for each Item Power supply
2. strict quality control inspection before shipment
3. shockproof & high quality blister packing to protect the item from damaging during shipment
4. OEM design & OEM packing welcome
5. Strong production ability
6. Top 5 Global E-business Company of Alibaba
7. Service online,reply to you within 6 hours
8. Quality is the heart of our factory and service is the soul!
