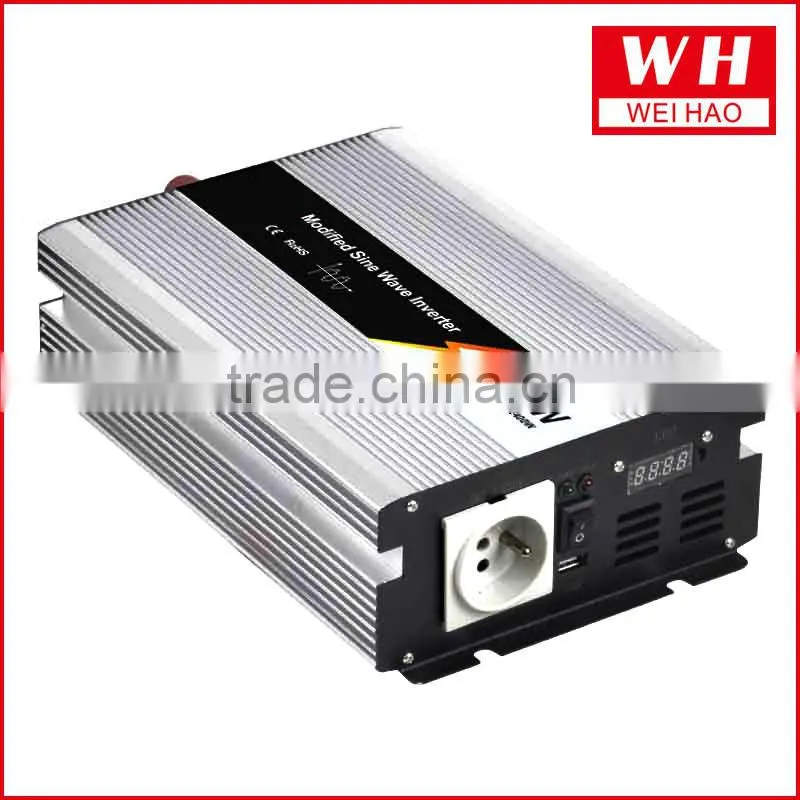

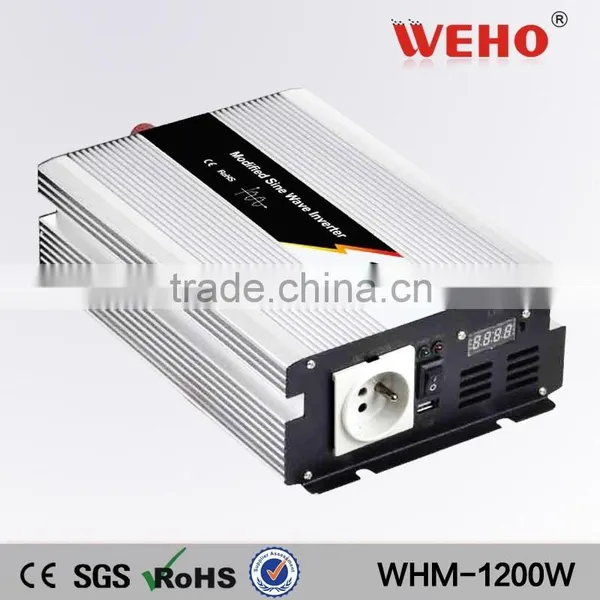

Aluminum Shell 1200w Power Inverter 12v 110v 220v Modified Wave Inverter

Aluminum Shell 1200w Power Inverter 12v 110v 220v Modified Wave Inverter thumbnail-1
Aluminum Shell 1200w Power Inverter 12v 110v 220v Modified Wave Inverter photo-1
US$ 37 - 42 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
weho
Model Number:
WHM-1200, WHM-1200w
Contact Supplier Request Quote Chat Now
Zhejiang Weihao Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name weho
Model Number WHM-1200, WHM-1200w
Output Power 1 - 200KW
Output Type Single
Size 300x180x75mm (L*W*H), 300*180*75mm
Weight 2600g
Input Voltage 12V,24V, 48v
Output Voltage 110V,230V
Type Other, DC/AC Inverters, DC/AC Inverters
Output Frequency 50/60Hz±3
Output Current -

Aluminum shell 1200w power inverter 12v 110v 220v modified wave inverter

Notice:

a.We do have enough ability to produce your customized order .

b.Samples are available.

c.High quality and competive price .

d.2 years warrenty ,buy with confidence.





1.1200w power inverter 12v 110v 220v Features:

General Specification :



Product Description:
 Modified sine wave inverters is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently. 1200W inverter It convert 12V/24VDC to 100-120V/220-240V AC, you can power for your electric appliances which rated power less 1200W continuously. There is DC cable with cigarette lighter plug and the DC cable clips included in packing, you can use in your car by plug into cigarette lighter socket or directly with batteries. The optional USB output port offer one more choise for user. It can charge for some digital equipments as you want.
Product Features:
·Anodized alluminum case provides durability & max heat dissipation
·DC cigarette lighter accessory plug and heavy -duty cable clamps for high-output direct battery connections both included.
·Automatic restart function.
·USB output port : 5V500mA (optional )
·ON/OFF switch control the inverter by hand
·The inverter is compact , light weight and easy to operate.
·Loads can be powered directly from the AC outlets.
·The inverter is equipped with numerous protection features to guarantee safe and trouble-free
Protection Function:
·Low voltage alarm & Shut down
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected

Product parameters



Model
WHM1.2K-121
WHM1.2K-122
WHM1.2K-241
WHM1.2K-242
WHM1.2K-481
WHM1.2K-482
Rated Power
1200W
Peak Power

2400W (few seconds)
Output Voltage
110V
230V
110V
230V
110V
230V
Frequency
50/60Hz±3
USB Port
5V,500mA(Optional)
Output Waveform
Modified Sine Wave
Protection Function
Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity
Input Voltage
12V
24V
48V
Dimension
300x180x75mm(L×W×H)
N.W./unit
2600g
QTY/Ctn
5Pcs
Packing
Gift box
Meas./Ctn
56.5×34.8×38.5cm
Warranty
18Months





Product Applications:



· Power tools series:Electric Saw,Drilling Machine,Ginder,Sand blast Machine,Puching Machine,Weeding Machine,Air Compressor etc.



· Office series:Computer,Printer,LCD Monitor,Scanning Machine etc.



·Household Appliance series:Dust Collector,Fan Lamp or LED ,Sewing Machine etc.



·Kitchen Appliance series:Microwave Oven, Fridge, Freezr, Coffemarker etc.



· Industrial Equipemnt series:shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.



· Electrical filed series:TV,VCRS,Radio ect.



2. 1200w power inverter 12v 110v 220v Showcase:

Aluminum shell 1200w power inverter 12v 110v 220v modified wave inverter

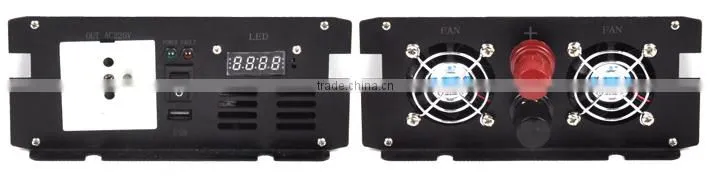

SOCKER and PLUG



3.1200w power inverter 12v 110v 220v Packing:

we use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation



4.1200w power inverter 12v 110v 220v Certificate:

we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008

5.1200w power inverter 12v 110v 220v Feedback :

We get a good feedback from our customers ,what we want to do is make your business  easy .

6.1200w power inverter 12v 110v 220v network:

We export the goods to every where in the world

7.1200w power inverter 12v 110v 220v Factory :





8.1200w power inverter 12v 110v 220v Our Sale team:

9.1200w power inverter 12v 110v 220v Service:
