factory outlet 2000w pure sine wave power inverter
WH pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect WH pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility.
Products Features:
·Input & output fully insolated
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grounding Protection : there is terminal in front panel,you can grouding the inverter.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding protection
| Model | JYP-2K-1 | JYP-2K-1 | JYP-2K-1 | JYP-2K-2 | JYP-2K-2 | JYP-2K-2 |
| Rated power | 2000W | |||||
| Peak power | 4000W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 1.1A | 0.7A | 0.5A | 1.1A | 0.7A | 0.5A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Pure Sine Wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| USB port | 5V 1A | |||||
| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||
| Dimension(mm) | 396x180x78 mm | |||||
| Packing(mm) | 445x240x145 mm | |||||
| Net./gross weight(g) | 3935/4676g | |||||
| QTY/Ctn | 4 Pcs | |||||
| Meas./Ctn(mm) | 520x480x420 mm | |||||
| Gross weight/Ctn(g) | 18904g | |||||
| Warranty | 1 years | |||||
| Configuration | Standard | |||||
| Cooling method | Intelligent air cooling | |||||
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | ||||||

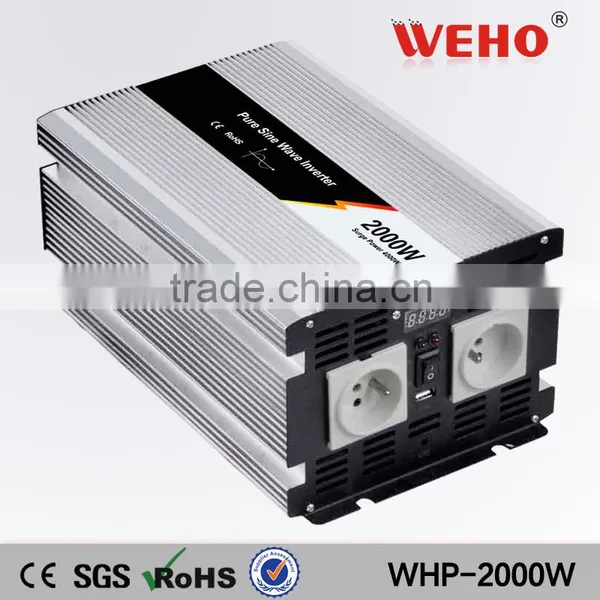

2.Model show:
Socket &Plug:
we use 4 trips to reinforce our carton,the international standards package methods
guaranteed our goods safety during transportation.
5.Certificate:
we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008.
7.Our services:
Terms and Conditions:
1. Prices are FOB NingBo, ShangHai .
2. MOQ: 1pcs
3. Lead Time:sample have instock ,3~5days depending on order quantity.
4. Package: Standard Export package for long-distant ocean shipment and tough handling.
5. Warranty: 1 years.
