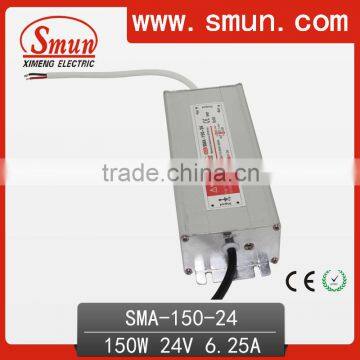

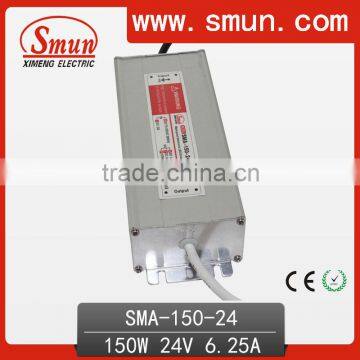

150W 12-24V Waterproof IP67 Constant Current LED Driver
· 1. Constant current power supply
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. 170~264VAC input range
· 5. Cooling by free air convection
· 6. Fully encapsulated with IP67 level
· 7. 100% full load burn-in test
· 8. 2 years warranty
| Model |
|
SMA-150-12 | SMA-150-24 | SMA-150-36 |
| Output | DC output Voltage | 6-12V | 12-24V | 18-36V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 12.5A | 6.25A | 4.2A | |
| Related Power | 150w | 150w | 150w | |
| Wave&Noise | 50mVp-p | 50mVp-p | 100mVp-p | |
| Set up,rise,hold up time | 200ms 100ms 30ms | |||
| Input | Voltage Range | 170-264VAC 47-63HZ | ||
| Input Current | 0.3A/230VAC | |||
| Efficiency | 75% | 82% | 85% | |
| AC inrush current | Cold start current 30A /230VAC | |||
| Leakage current | <1mA/240VAC | |||
| Protection | Overload | Related output power 105-135% start overload protection | ||
| Protection type: hiccup mode, recovery after restart power | ||||
| Over voltage | Reted output power 135-150% start over voltage protection | |||
| Protection type: hiccup mode, recovery after restart power | ||||
| Over temperature | When temp of transistor inner is over 150, start over temp protection | |||
| pretect mode:cutoff output,auto-recover after temperature become normal | ||||
| water-proof degree | IP67 | |||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | ||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | |||
| Withstand vibration | 10-500Hz,2G 10min/Ccle, period for 60min, each axes | |||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA | ||
| Isolation resistance | I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC | |||
| Standard | Safety standard | Fit UL1012 | ||
| EMC standard | Fit EN55022 CLASSA | |||
| Size | size | L240*W68*H43mm | ||
| Package | 2.8kg, 12pcs/32kg | |||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
