Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) thumbnail-1
Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) thumbnail-2
Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) thumbnail-3
Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) photo-1

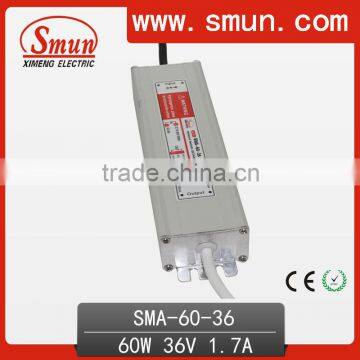

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) photo-2

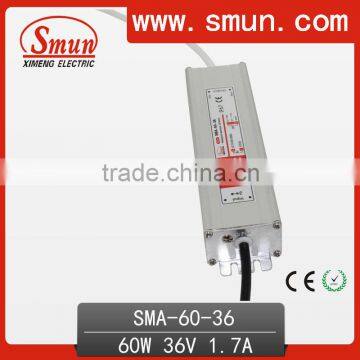

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36) photo-3
US$ 8 - 11 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SMUN
Model Number:
SMA-60-36
Contact Supplier Request Quote Chat Now
Zhejiang Ximeng Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SMUN
Model Number SMA-60-36
Output Power Other, 60W
Output Type Single
Input Voltage Other, 170~264VAC
Output Voltage 18~36V
Output Frequency 47~63Hz
Output Current 1.7A

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Welcome

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Instruction

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

· 1. Constant current power supply

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. 170~264VAC input range

· 5. Cooling by free air convection
· 6. Fully encapsulated with IP67 level

· 7. 100% full load burn-in test

· 8. 2 years warranty

Product Description

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Model
 		 SMA-60-12 SMA-60-24 SMA-60-36
Output DC output Voltage 6-12V 12-24V 18-36V
Voltage tolerance ±1.0% ±1.0% ±1.0%
Rated Current 5A 2.5A 1.7A
Related Power 60w 60w 60w
Wave&Noise 50mVp-p 50mVp-p 100mVp-p
Set up,rise,hold up time 200ms  100ms  30ms
Input Voltage Range 170-264VAC  47-63HZ
Input Current 0.3A/230VAC
Efficiency 75% 82% 85%
AC inrush current Cold start current 30A /230VAC
Leakage current <1mA/240VAC
Protection Overload Related output power 105-135% start overload protection
Protection type: hiccup mode, recovery after restart power
Over voltage Reted output power 135-150% start over voltage protection
Protection type: hiccup mode, recovery after restart power
Over temperature When temp of transistor inner is over 150, start over temp protection
pretect mode:cutoff output,auto-recover after temperature become normal
water-proof degree IP67
Environment Working temp humidity -10~+60°C 20%~90%RH
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Withstand vibration 10-500Hz,2G 10min/Ccle, period for 60min, each axes
Safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA
Isolation resistance I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC
Standard Safety standard Fit UL1012
EMC standard Fit EN55022 CLASSA
Size size L178*W68*H43mm
Package 0.97kg, 30pcs/30kg



Inner Structure

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Certifications

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

Our Services

Waterproof IP67 60W 18-36V Constant Current LED Driver(SMA-60-36)

1.Your email will be replied with 24 hours

2.All qustions will be answered by our power supply engineer.

3.We have strictly management on the production and quality control.

4.We are real factory and have professional engineer team,can provide cust service.

>More than 500 pieces,can print logo on the products.

>More than 2000 pieces,can customize the package.

5.We have independent IMP&EMP rights.

6.Sample available.

7.Warranty Clarify:

>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.

>We will send a new one to you if product can't work as quality problem in first year after comfirmation.

>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.

8.Shipping methods:By sea,by air,by express.

9.Customized accepted.

>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.

>Output voltage:5V,9V,12V,15V,24V,36V,48V.

>Frequency:47-63Hz
