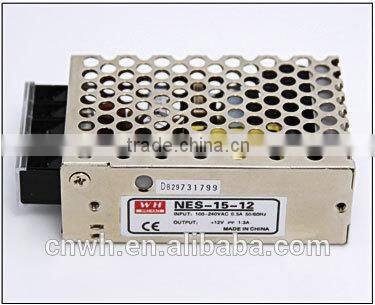

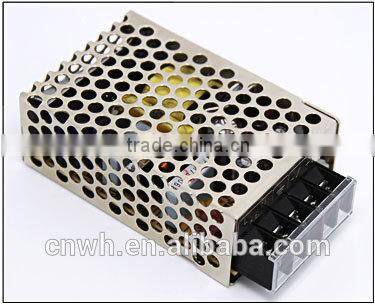

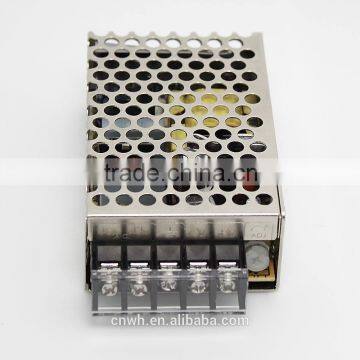

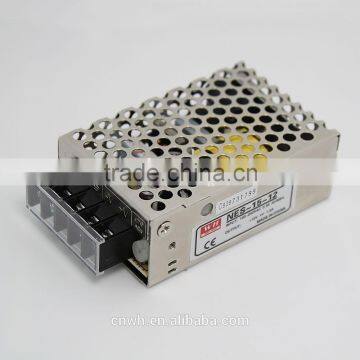

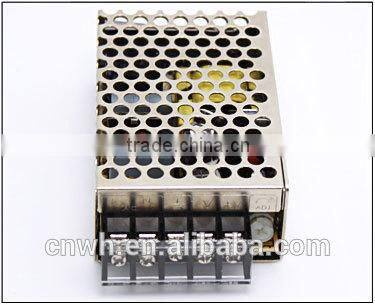

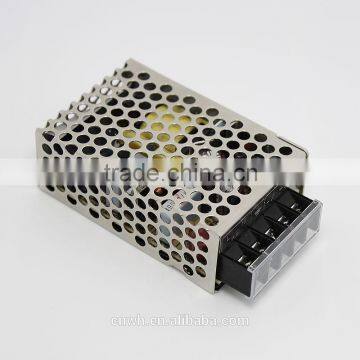

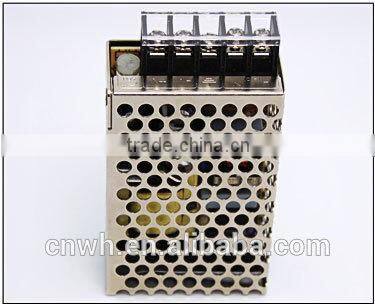

CE ROHS NES-15-48 15W NES Series dc Power Supply 48volt, With 2 Years Warranty

Name: CE ROHS NES-15-48 15W NES Series dc Power Supply 48volt, With 2 Years Warranty
Brand: weho
SKU: 120498301
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 4 - 5.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weho

Model Number:

NES-15-48

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weho

Model Number NES-15-48

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 48V

Output Frequency 47~63Hz

Output Current 0.35A

CE ROHS NES-15-48 15W NES Series dc Power Supply 48volt, with 2 years warranty

NOTICE:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Related Products

Related Products

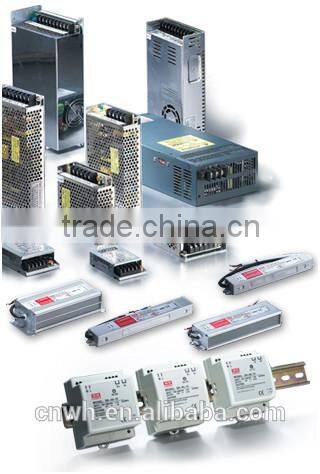

	Wattage	15W~1500W
	Features	High number of economic type safety with series 3.3V, 5V, 7.5V, 9V, 12V, 15V, 24V, 27V,36V, 48V

	Model No. Date Link	MS Series MS-15W MS-25W MS-35W MS-50W MS-60W MS-100W
		S Series S-15W S-25W S-35W S-50W S-60W S-75W S-100W S-120W S-145W S-150W S-200W S-201W S-250W S-300W S-350W S-400W S-500W S-600W
		SCN Series SCN-600W SCN-800W SCN-1000W SCN-1500W
		DR Series DR-30W DR-45W DR-60W DR-75W DR-120W DR-240W
		MDR Series MDR-20W MDR-40W MDR-60W
		LPV Series LPV-15W LPV-20W LPV-30W LPV-50W LPV-60W LPV-100W LPV-150W LPV-200W LPV-250W
		NES Series NES-15W NES-25W NES-35W NES-50W NES-75W NES-100W NES-350W

Product Description

Model		NES-15-5	NES-15-12		NES-15-15		NES-15-24
output	DC voltage	5V	12V		15V		24V
	Voltage tolerance	2%	1%		1%		1%
	Rated current	3A	1.2A		1A		0.6
	Current range	0~3A	0~1.2A		0~1A		0~0.6A
	Rated power	15W	15W		15W		15W
	Ripple&noise	80mvp-p	120mvp-p		120mvp-p		200mvp-p
	DCvoltage ADJ.range	-9%~+10%	10%		10%		10%
input	Voltage range	90~264VAC,125~373VDC
	frequency	47~63HZ
	AC current	0.75A/115VAC,0.5A/230VAC
	efficiency	78%	81%		82%		85%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 2mA/240VAC
protection	Over load	Rated output power110%~150% start over load protection
		protection type:hiccup mode,auto-recovery after fault condition is removed
	over voltage	6.8~8.2V		15.6~17.8V		18.6~20.8V	30.6~33.2V
		protection type:hiccup mode,auto-recovery after fault condition is removed
environment	Working temp,humidity	-20C~+60C,20%~90%RH
	Storagetemp,humidity	-40C~+85C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Fit EN55022,CLASSA
others	Dimension	785128mm(LWH)
	Weight/packing	0.27kg/50pcs/14.5kg/0.027m³/0.96CUFT
