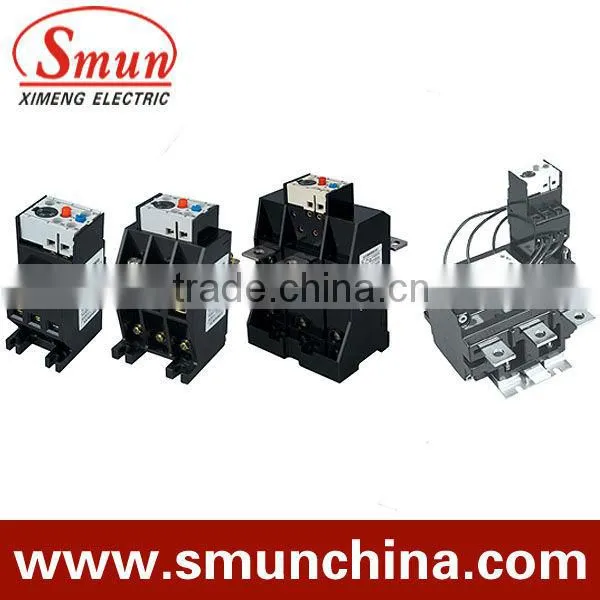

JR20 thermal overload relay

Electronic Overload Relay  Thermal Relay  relayJR20 series thermal relay is suitable for the power system of AC 50/60Hz, main circuit rated voltage up to 660V, current up to 630A, used as protecting AC three-phase motor against overload and phase losing, and forming electromagnetic with starter CJ20 series AC contactor. It has functions of phase-losing protection temperature compensation, trip indication. It can manually and automatically get back. The product conforms to GB14048.4, IEC60947-4 standards.

2. Motion Characteristic: Three-phase Balance Motion Time

No

Times of the

Setting current

Motion time

Start conidition

Ambient

Temperature

1

1.05

>2h

Cold state

20±5oC

2

1.2

<2h

Heat state

3

1.5

<4min

(Following the No.1 test)

4

7.2

10A

2<Tp≤10s

≤63A

Cold state

10

4s<Tp≤10s

>63A



3.Main Technical Specifications

Type

Number

5WSetting Range(A)

For Contactor

JR20-10L

1R

0.1-0.15

CJ20-10

2R

0.15-0.23

3R

0.23-0.35

4R

0.35-0.53

5R

0.53-0.8

6R

0.8-1.2

7R

1.2-1.8

8R

1.8-2.6

9R

2.6-3.8

10R

3.2-4.8

11R

4-6

12R

5-7

13R

6-8.4

14R

7-10

15R

8.6-11.6

JR20-16L

1S

3.6-5.4

CJ20

-10

-16

2S

5.4-8

3S

8-12

4S

10-14

5S

12-16

6S

14-18

JR20-25L

1T

7.8-11.6

CJ20

-16

-25

2T

11.6-17

3T

17-25

4T

21-29

JR20-63L

1U

16-24

CJ20

-40

-63

2U

24-36

3U

32-47

4U

40-55

5U

47-62

6U

55-71

JR20-160L

1W

33-47

CJ20

-100

-160

2W

47-63

3W

63-84

4W

74-98

5W

85-115

6W

100-130

7W

115-150

8W

130-170

9W

144-176

JR20-250L

1X

130-195

CJ20

-250

2X

167-250

JR20-400L

1Y

200-300

CJ20

-400

2Y

267-400

JR20-630L

1Z

320-480

CJ20

-630

2Z

420-630
