CE Approved 500w Adapter S-500-36 ac Contactor 36v

Zhejiang Weihao Electronic Co., Ltd.
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-1
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-2
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-3
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-4
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-5
CE Approved 500w Adapter S-500-36 ac Contactor 36v thumbnail-6
CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-1

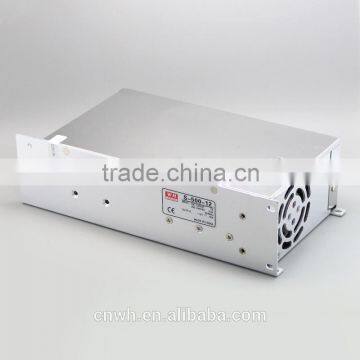

CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-2

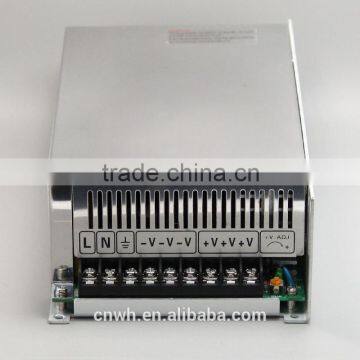

CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-3

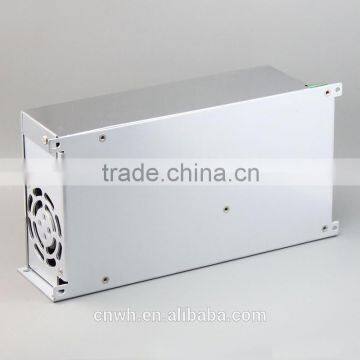

CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-4

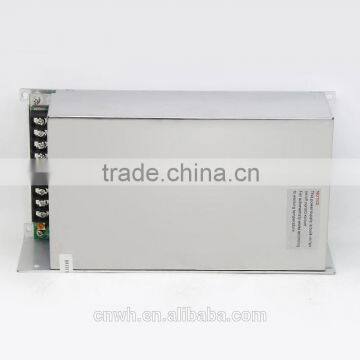

CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-5

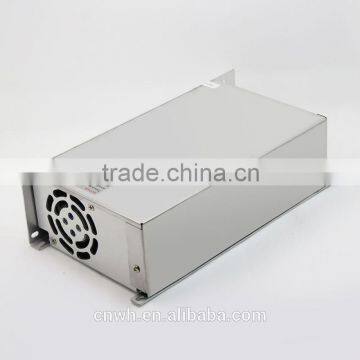

CE Approved 500w Adapter S-500-36 ac Contactor 36v photo-6
US$ 10.99 - 29.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
weihao
Model Number:
S-500-36
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name weihao
Model Number S-500-36
Output Power 401 - 500W
Output Type Single
Input Voltage 220V
Output Voltage 36V
Output Frequency 47~63HZ
Output Current 14A

Power supply

CE approved 500w adapter S-500-36 ac contactor 36v



MODELS-500-12S-500-13.5S-500-15S-500-24S-500-27S-500-48
OUTPUTDC VOLTAGE12V13.5V15V24V27V48V
RATED CURRENT40A36A32A20A18A10A
CURRENT RANGE0 ~ 40A0 ~ 36A0 ~ 32A0 ~ 20A0 ~ 18A0 ~ 10A
RATED POWER480W486W480W480W486W480W
RIPPLE & NOISE (max.)240mVp-p240mVp-p240mVp-p240mVp-p200mVp-p300mVp-p
VOLTAGE ADJ. RANGE10 ~ 13.2V12 ~ 15V13.5 ~ 18V20 ~ 26.4V26 ~ 32V41 ~ 56V
VOLTAGE TOLERANCE1.0%1.0%1.0%1.0%1.0%1.0%
LINE REGULATION0.5%0.5%0.5%0.5%0.5%0.5%
LOAD REGULATION0.5%0.5%0.5%0.5%0.5%0.5%
SETUP, RISE, HOLD TIME200ms, 50ms, 20ms at full load
INPUTVOLTAGE RANGE180 ~ 264VAC (110VAC input can be custom-made)
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)84%84%84%86.0%87.0%88%
AC CURRENT7A/115V 3.5A/230V
INRUSH CURRENT (max.)18A/115V 36A/230V
LEAKAGE CURRENT
PROTECTIONOVERLOAD105 ~ 135% of rate load
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE13.8 ~ 16.2V15.5 ~ 18.2V18 ~ 21V27.6 ~ 32.4V31 ~ 36.5V57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
FAN CONTROL,O.T.P.RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down
ENVIRONMENTWORKING TEMP.-10 ~ +60ºC, 20 ~ 90% RH non-condensing
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT0.03%/ºC (0 ~ 50ºC)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSDesign refer to UL1950, TUV EN60950-1
WITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATIONCompliance to EN55022 (CISPR22) Class B
HARMONIC CURRENTCompliance to EN61000-3-2,-3
EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A
OTHERSMTBF138.6K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION240*125*65mm (L*W*H)
PACKING1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB

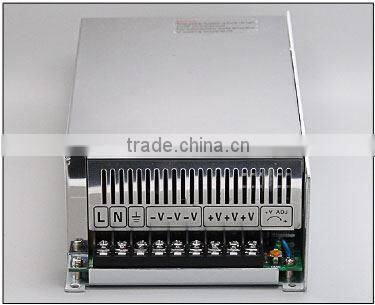

CE approved 500w adapter S-500-36 ac contactor 36v



CE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36v

CE approved 500w adapter S-500-36 ac contactor 36v

we use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation



CE approved 500w adapter S-500-36 ac contactor 36v

CE approved 500w adapter S-500-36 ac contactor 36v

we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008



 CE approved 500w adapter S-500-36 ac contactor 36v

CE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36vCE approved 500w adapter S-500-36 ac contactor 36v

CE approved 500w adapter S-500-36 ac contactor 36v:chnwh010
