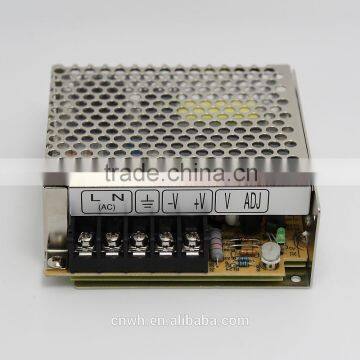

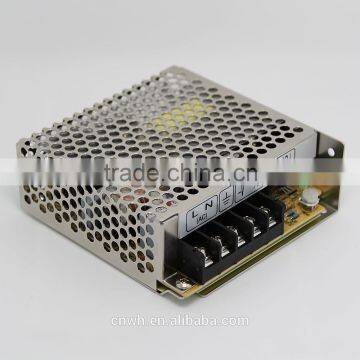

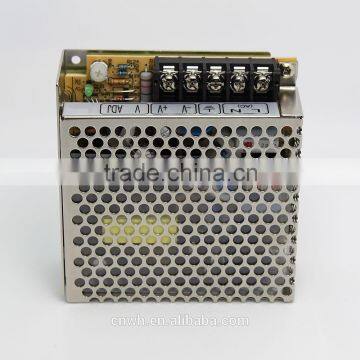

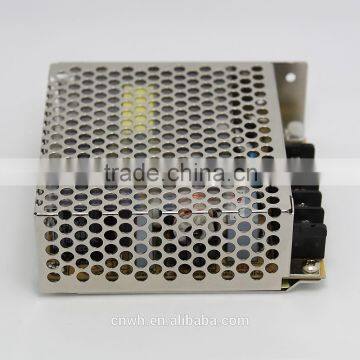

Metal Case Led ac Power 24v dc Transformer 35w Power Supply

Name: Metal Case Led ac Power 24v dc Transformer 35w Power Supply
Brand: WEHO
SKU: 120493219
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 5.5 - 7.2 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WEHO

Model Number:

NES-35-24

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WEHO

Model Number NES-35-24

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 1.5A

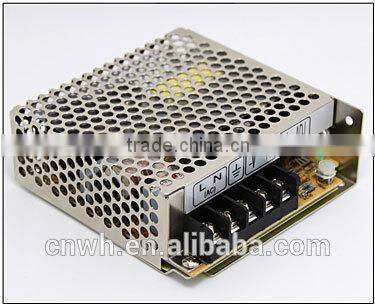

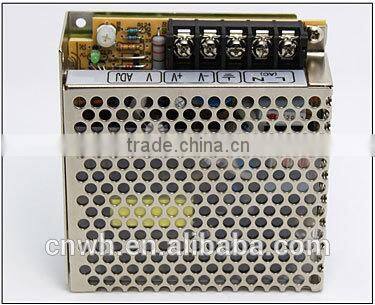

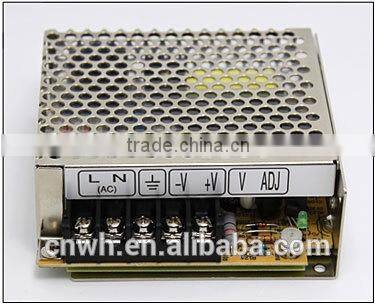

Metal case led ac power 24v dc transformer 35w power supply

NOTICE:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Related Products

Related Products

	Wattage	15W~1500W
	Features	High number of economic type safety with series 3.3V, 5V, 7.5V, 9V, 12V, 15V, 24V, 27V,36V, 48V

	Model No. Date Link	MS Series MS-15W MS-25W MS-35W MS-50W MS-60W MS-100W
		S Series S-15W S-25W S-35W S-50W S-60W S-75W S-100W S-120W S-145W S-150W S-200W S-201W S-250W S-300W S-350W S-400W S-500W S-600W
		SCN Series SCN-600W SCN-800W SCN-1000W SCN-1500W
		DR Series DR-30W DR-45W DR-60W DR-75W DR-120W DR-240W
		MDR Series MDR-20W MDR-40W MDR-60W
		LPV Series LPV-15W LPV-20W LPV-30W LPV-50W LPV-60W LPV-100W LPV-150W LPV-200W LPV-250W
		NES Series NES-15W NES-25W NES-35W NES-50W NES-75W NES-100W NES-350W

Product Description

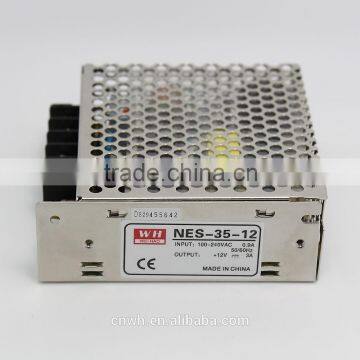

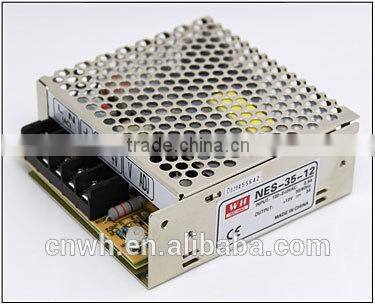

Model		NES-35-5	NES-35-12	NES-35-15	NES-35-24	NES-35-48
output	DC voltage	5V	12V	15V	24V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	7A	3A	2.4A	1.5A	0.8A
	Current range	0~7A	0~3A	0~2.4A	0~1.5A	0~0.8A
	Rated power	35W	36W	36W	36W	36W
	Ripple&noise	80mvp-p	120mvp-p	120mvp-p	200mvp-p	240mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%
	Voltage range	90~264VAC,125~373VDC
input	frequency	47~63HZ
	AC current	0.75A/115VAC,0.5A/230VAC
	efficiency	78%	81%	82%	85%	86%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 2mA/240VAC
protection	Over load	Rated output power110%~150% start over load protection
	Over load	protection type:hiccup mode,auto-recovery after fault condition is removed
	over voltage	115%~135%
	over voltage	protection type:hiccup mode,auto-recovery after fault condition is removed
environment	Working temp,humidity	-20°C~+60°C,20%~90%RH
	Storagetemp,humidity	-40°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	Fit EN55022,CLASSA
others	Dimension	989735mm (LWH)
others	Weight/packing	0.36kg;4332.524CM/60PCS/21.6KG
