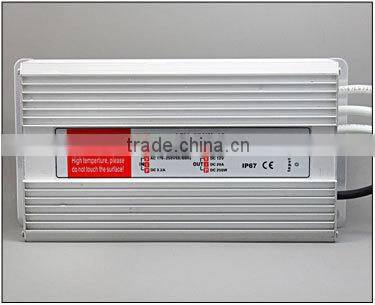

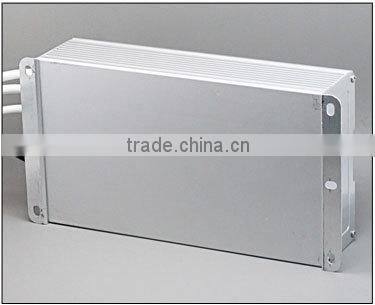

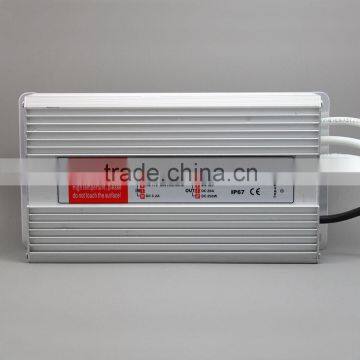

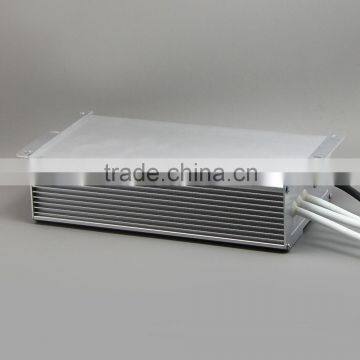

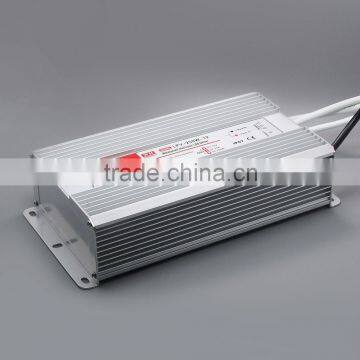

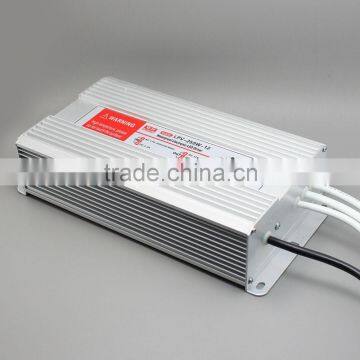

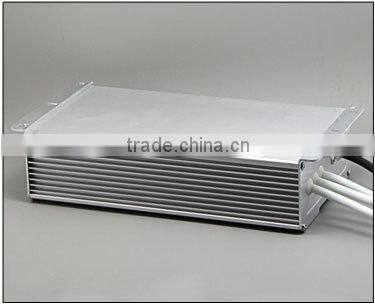

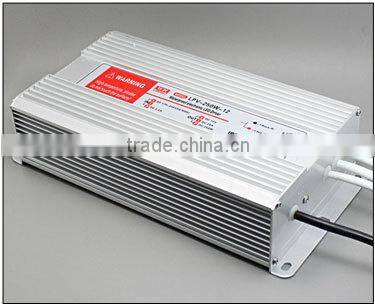

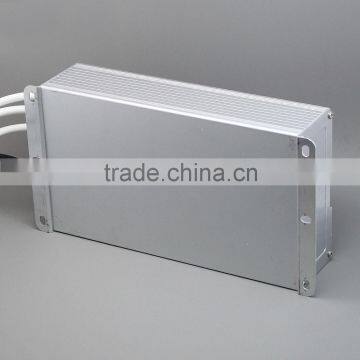

250w waterproof led driver constant voltage 24v cctv camera power supply
- 80000 Piece / Pieces per Month
- NingBo / ShangHai
- T/T Credit Card
You May Like
-
100w voltage regulator 110/220v ac 24v dc waterproof led driver power supply
-
50W waterproof output voltage 24 volt led driver switch mode power supply
-
60w waterproof led driver LPV-60-24 220v 24v switch power supply
-
15w low power Smps 24v s series power supply
-
weho best price s-25w single output power adaptor 24v 25w
-
High quality 35W 1.5A 24 volt switching power supply
Product Details
Place of Origin | Zhejiang, China | Brand Name | weihao | |
Model Number | LPV-250-24 | Output Power | 201 - 300W | |
Output Type | Single | Input Voltage | 220V | |
Output Voltage | 24V | Output Frequency | 47~63HZ | |
Output Current | 10A |
Product Description
WEHO 250w waterproof led driver constant voltage 24v cctv camera power supply
Model | LPV-250-12 | LPV-250-24 |
DC output voltage | 12V | 24V |
Output voltage error | ±1% | ±1% |
Rated output current | 20A | 10A |
Output current range | 0-20A | 0-10A |
Wave and noise | 100mVp-p | 100mVp-p |
Inlet stability | ±0.5% | ±0.5% |
Load stability | ±0.5% | ±0.5% |
DC output power | 250W | 250W |
Efficiency | 81% | 83% |
AC input voltage range | 170 ~ 264VAC | |
Input current | 0.5A/115V 0.25A/230V | |
AC impulse current | Cold-start current 13A/115V 26A/230V | |
Leakage current | <0.5mA/240VAC | |
Over load protection | 105%~150% rated output power | |
Protection:Hiccup mode | ||
Over voltage protection | 13~16V | 28~32V |
Protection:Shut down output voltage | ||
short circuit protection | Protection:Hiccup mode | |
Temperature coefficient | ±0.03%(050) | |
Setup rise hold up time | 200ms,100ms,30ms | |
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |
Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH | |
Working temperature and humidity | -10~+60°C, 20~90%RH | |
Store temperature and humidity | -20~+85°C, 10~95%RH | |
Overall dimension | 233×122×60mm | |
Weight | 2.8Kgs | |
Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |
EMC | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved |
we use 4 trips to reinforce our carton,
the international standards package methods guaranteed our goods safety during transportation
we are a professional manufacturer of power supplies ,
all of our products have approved CE ROHS and ISO9001
1.Voltage
• Output XXV on the switching power supply. XX is the voltage.
E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............
2.Current:
• Output XXA on switching power supply . XX is the current.
E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......
3.Quality
• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.
4.Delivery
• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements
5. Guarantee period
• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.
6. Applications
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
7.Distributor
We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
