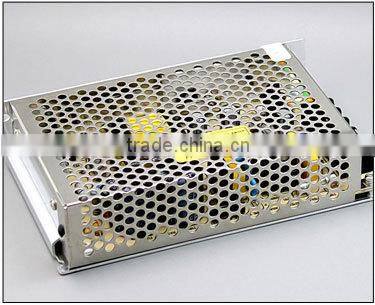

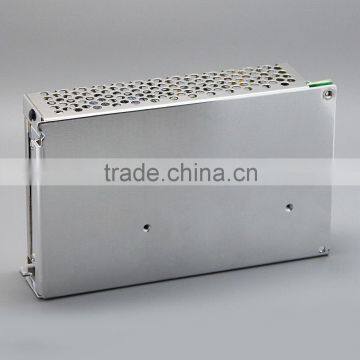

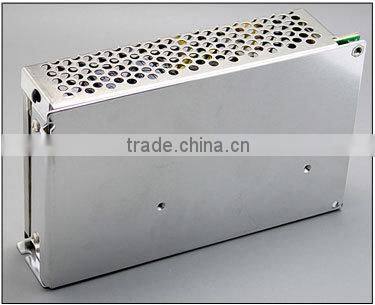

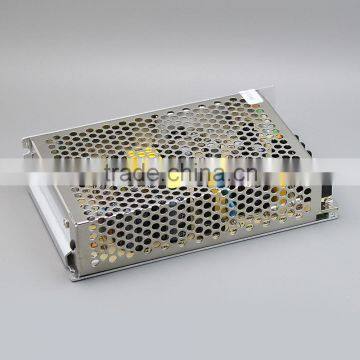

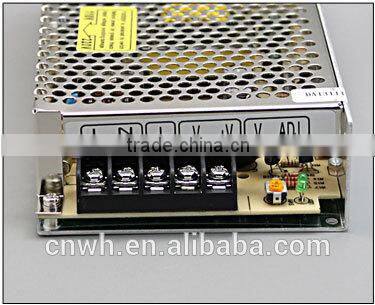

2 Years Warranty Ac-dc 15v 5a Single Output 75 Watts Power Supply
US$ 7 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHO
Model Number:
S-75-15
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN Rail 15v 2.66a 40W Ac/dc Industrial Led Driver Power SupplyUS$ 15 - 20MOQ: 1 Piece -
220v ac to 15v dc 30w Din Rail Switching Power Supply 15v 2aUS$ 11 - 15MOQ: 1 Piece
-
China Gold Supplier 1000w 13.5v Switch Power Supply Psu dc Power Supply 1000w 13.5vUS$ 115.5 - 120MOQ: 1 Piece
-
Professional Manufacturer 220v ac to 15v dc 350w 15v Switching Power SupplyUS$ 16 - 20MOQ: 1 Piece
-
Different Types Manufacture 15v 16a dc Switching Power SupplyUS$ 2.88 - 25.88MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
WEHO
Model Number
S-75-15
Output Power
101 - 200W
Output Type
Single
Input Voltage
Other, 220V, 110/220VAC
Output Voltage
15V
Output Frequency
50/60Hz
Output Current
5A
2 years warranty ac-dc 15v 5a single output 75 watts power supply
Product Description
| Model | S-75-12 | S-75-15 | S-75-24 | S-75-48 |
| DC output voltage | 12V | 15V | 24V | 48V |
| Rated output current | 6A | 5.0A | 3A | 1.5A |
| Output current range | 0-6A | 0-5A | 0-3A | 0-1.5A |
| Wave and noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 79% | 82% | 83% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range: | 85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC | |||
| AC inrush current: | Cold-start current 15A/115V 30A/230V | |||
| Overload protection: | 105%~150% Type:plusing hiccup shutdown Reset:auto recovery | |||
| Setup rise hold-up time: | 200ms,50ms,20ms | |||
| Withstand voltage:Input and output internal: | 1.5KvAC,Output and enclosure:0.5KvAC | |||
| Isolation resistance: | Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ | |||
| Working temperature | 0~50°C | |||
| Safety standards: | GB4943 UL60950 EN60950 | |||
| EMC standards: | EN55022 GB9254,class A | |||
| Overall dimension: | 159*98*38mm | |||
| Weight: | 0.56Kgs | |||
packing and shipping
The 5 layers corrugated empty carton can bear 1 person pressure,
You can rest assured about our fixed package and we use 4 trips to reinforce our carton.
The international standards package methods guaranteed our 12v led driver 6a safety during transportation.
Certifications
We are a professional manufacturer of power supplies ,all of our 12v led driver 6a have approved CE ROHS and ISO9001:2008
Company Information
Our company start in 2007,located in Yue Qing City, Zhe Jiang Province, which covers 6000 square metres.We have the direct import & export 12v led driver 6a rights.
Any interests pls contact me without any hesitate,Thank you ! Welcome inquiry ! ! !
