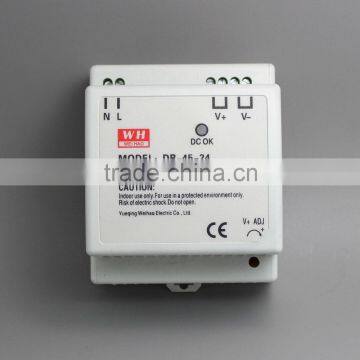

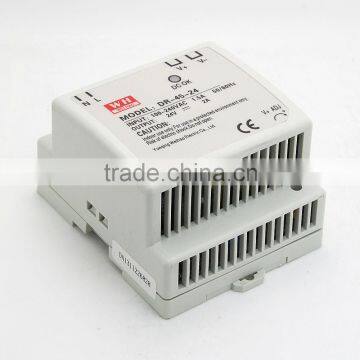

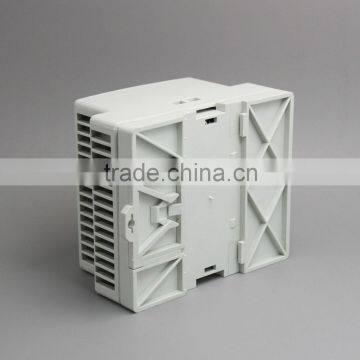

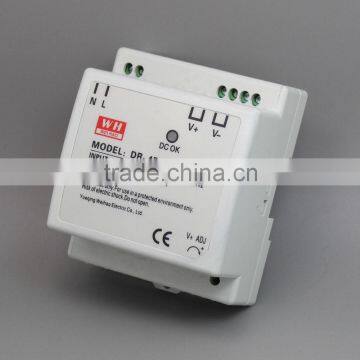

45w 15v Switch Power Supply 2.8a 15v Din Rail Switch Power Supply
US$ 12 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHO
Model Number:
DR-45-15
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DR-60-15 220v ac to 60w Single Output DIN Rail 15v dc Power SupplyUS$ 12 - 15MOQ: 1 Piece -
Dinrail 75w 5a 15v Power Supply 75w15v5a Power SupplyUS$ 16.5 - 18MOQ: 1 Piece
-
120W Single Output DIN Rail Power Transformer 15V 8AUS$ 16.5 - 18MOQ: 1 Piece
-
MDR 20w 15v 1.34a Dinrail Mode Power Supply ac 85~264v to 20w 15v dc Power SupplyUS$ 13 - 15MOQ: 1 Piece
-
Switching Power Supply With PFC Function SP-500-15 24v 32a Smps 500wUS$ 6 - 50MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
WEHO
Model Number
DR-45-15
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, 85~264VAC 120~370VDC
Output Voltage
15V
Output Frequency
47~63Hz
Output Current
2.8A
45w 15v switch power supply 2.8a 15v din rail switch power supply
Product Description
| MODEL | DR-45-5 | DR-45-12 | DR-45-15 | DR-45-24 |
| DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 5A | 3.5A | 2.8A | 2A |
| CURRENT RANGE | 0 ~ 5A | 0 ~ 3.5A | 0 ~2.8A | 0 ~ 2A |
| RATED POWER | 25W | 42W | 42W | 48W |
| RIPPLE & NOISE (max.) | 100mVp-p | 200mVp-p | 240mVp-p | 480mVp-p |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| SETUP, RISE TIME | 80ms, 60ms/230VAC at full load | |||
| HOLD TIME(Typ.) | 100ms/230VAC at full load | |||
| VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 72% | 77% | 77% | 80% |
| AC CURRENT | 1.5A/115VAC 0.75A/230VAC | |||
| INRUSH CURRENT(max.) | COLD START 28A/115VAC 56A/230VAC | |||
| LEAKAGE CURRENT | <1mA/240VAC | |||
| OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Constant current limiting,recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V |
| Protection type : Shut down o/p voltage,re-power on to recover | ||||
| OVER TEMPERATURE | Tj 135ºC typically (U1) Detect on heat sink of power transistor | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| WORKING TEMP. | -10 ~ +60ºC | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY STANDARDS | Design refer to UL508,TUV EN60950-1 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | |||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A | |||
| MTBF | 364.6K hrs min. MIL-HDBK-217F (25ºC) | |||
| DIMENSION | 93*78*67mm (L*W*H) | |||
| PACKING | 0.31Kg; 48pcs/16.1Kg/1.3CUFT | |||
packing and shipping
The 5 layers corrugated empty carton can bear 1 person pressure,
You can rest assured about our fixed package and we use 4 trips to reinforce our carton.
The international standards package methods guaranteed power supply safety during transportation.
Certifications
We are a professional manufacturer of power supplies ,all of our power supply have approved CE ROHS and ISO9001:2008
Company Information
Our company start in 2007,located in Yue Qing City, Zhe Jiang Province, which covers 6000 square metres.We have the direct import & export rights.
The advantages
1. High power density,high efficiency,long life and high reliability
2. No Load power consumption<0.5W
3. 100% full load burn-in test
4. Universal AC input range
5. All using 105°C long life electrolytic capacitors.
6. PCB soldering side with conformal coating
7. Suitable for critical applications power supply
8. Output protections:OLP/OVP/SCP
