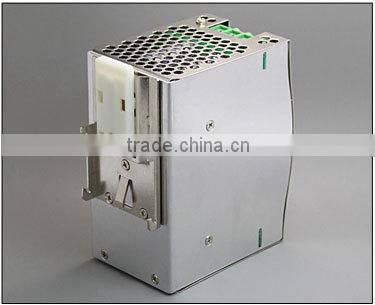

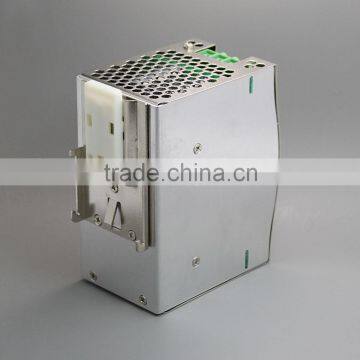

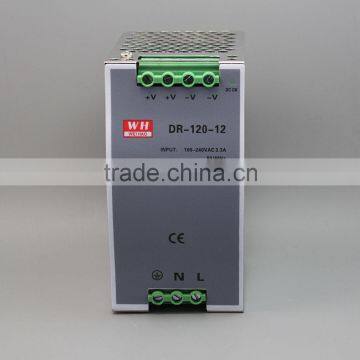

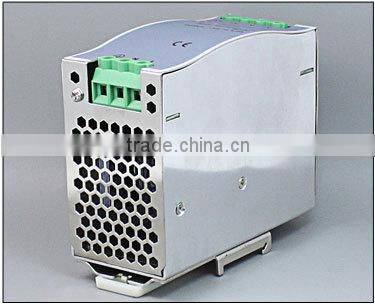

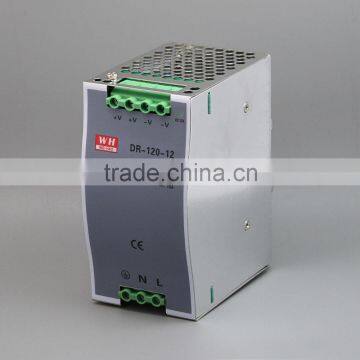

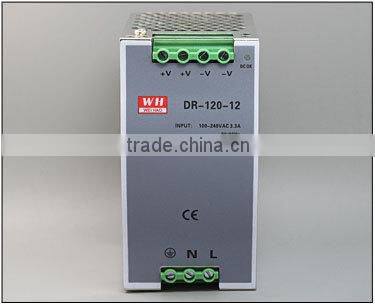

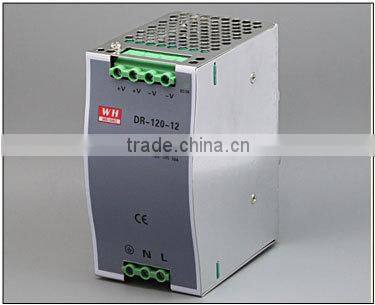

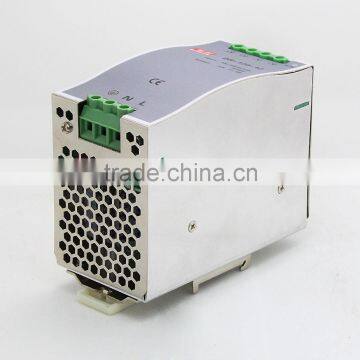

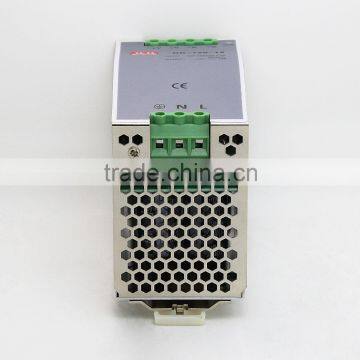

120W single output DIN Rail power transformer 15V 8A
Product Description
| Model | DR-120-12 | DR-120-15 | DR-120-24 | DR-120-48 |
| DC output voltage | 12V | 15V | 24V | 48V |
| Output voltage range | ±2% | ±2% | ±1% | ±1% |
| Rated output current | 10A | 8A | 5A | 2.5A |
| Output current range | 0-10A | 0-8A | 0-5A | 0-2.5A |
| Wave and noise | 85mVp-p | 85mVp-p | 85mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±1% | ±1% | ±1% |
| DC output power | 120W | 120W | 120W | 120W |
| Efficiency | 80% | 81% | 84% | 85% |
| Adjustable range for DC voltage | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V% | 43.2~52.8V% |
| AC input voltage range | 88~132VAC 47~63Hz;240~370VDC | |||
| Input current | 3.3A/115V 2A/230V | |||
| AC inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| Overload protection | 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery | |||
| Over-voltage protection | 13.8~16.2V | 18~21V | 27.6~32.4V | 58~62V |
| Temperature coefficient | ±0.03%/°c(0~50°c) | |||
| Setup, rise , hold up time | 500ms,70ms, 50ms/230V | |||
| Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
| Withstand voltage | Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC | |||
| Isolation resistance | Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ | |||
| Working temperature and humidity | 10°c~50°c(Refer to output derating curve), 20%~90%RH | |||
| Overall dimension | 65.5×125.2×100mm | |||
| Weight | 0.8Kgs 24PCS/19.2Kg/1.1CUFT | |||
| Safety standards | Meet UL 1012 requiement (Not apply for the mark) | |||
| EMC standards | Meet FCC PART 15 J Conduction class B | |||
The 5 layers corrugated empty carton can bear 1 person pressure,
You can rest assured about our fixed package and we use 4 trips to reinforce our carton.
The international standards package methods guaranteed power supply safety during transportation.
We are a professional manufacturer of power supplies ,all of our power supply have approved CE ROHS and ISO9001:2008
Our company start in 2007,located in Yue Qing City, Zhe Jiang Province, which covers 6000 square metres.We have the direct import & export power supply rights.
The advantages
1. High power density,high efficiency,long life and high reliability
2. No Load power consumption
3. 100% full load burn-in test
4. Universal AC input range
5. All using 105°C long life electrolytic capacitors.
6. PCB soldering side with conformal coating
7. Suitable for critical applications power supply
8. Output protections:OLP/OVP/SCP
9. CE RoHS ISO9001 approved
10. 2 years warranty power supply
Customized Logo printing
Cusomized logo is free of charge for quantity over 500pcs
Customized packaging
Customized packaging is supported for quantity over 5000pcs
We devote ourselves to offering humanized serving for each customer! No matter the business is big or small, we are always doing our best to offer our best services to our customers, and developing together
1. Two years warranty for each Item Power supply
2. strict quality control inspection before shipment
3. shockproof & high quality blister packing to protect the item from damaging during shipment
4. OEM design & OEM packing welcome
5. Strong production ability
6. Top 5 Global E-business Company of Alibaba
7. Service online,reply to you within 6 hours
8. Quality is the heart of our factory and service is the soul!
>MOQ:We support sample order. (1~5 pieces)
>More than 500 pieces, can print logo on the products.
>OEM/ODM welcome.
>24 months warranty.
>Shipping methods : by sea, by air, by express.
