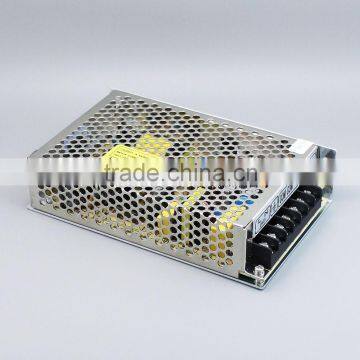

Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > MS-120-15 120w 15v 8a Mini Size Power Supply
US$ 7.2 - 12.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEIHAO
Model Number:
MS-120-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Arrival!!switch Mode 150w 15v 10a Led Power SupplyUS$ 9.9 - 18MOQ: 1 Piece -
ac to dc 300w Single Output Power Supply Transformer 110v to 15vUS$ 14.2 - 18.7MOQ: 1 Piece
-
CE RoHS Approved Weihao S-75-15 75w 15v 5a Power SupplyUS$ 5.9 - 7.8MOQ: 1 Piece
-
Factory Outlet 15 Volt 100w Led Power SupplyUS$ 6.5 - 8.8MOQ: 1 Piece
-
60w dc Single Output 15v Mini-size 4a Switching Power SupplyUS$ 6 - 8MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
WEIHAO
Model Number
MS-120-15
Output Power
101 - 200W
Output Type
Single
Input Voltage
220V
Output Voltage
15V
Output Frequency
47~63Hz
Output Current
8A

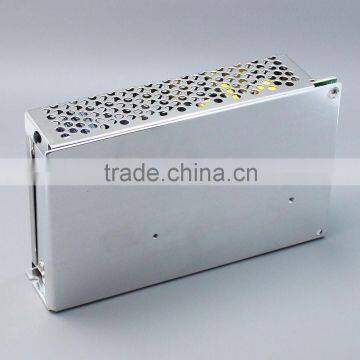

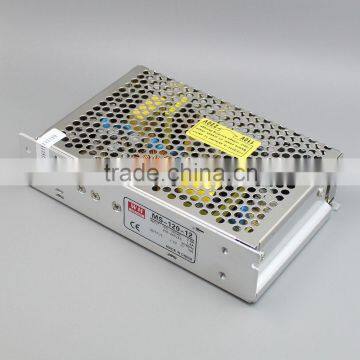

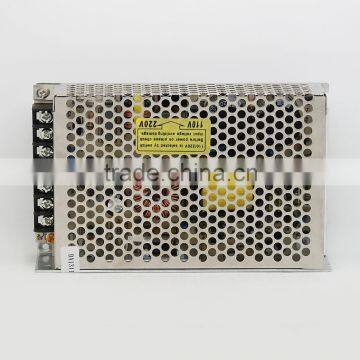

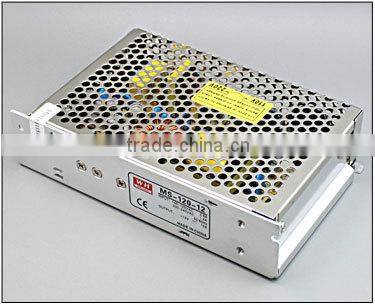

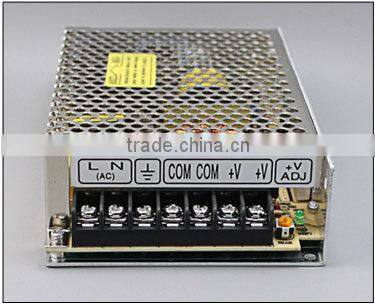

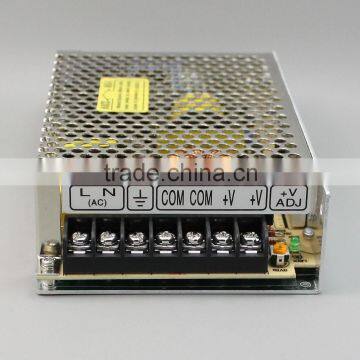

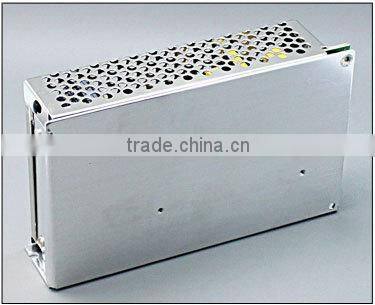

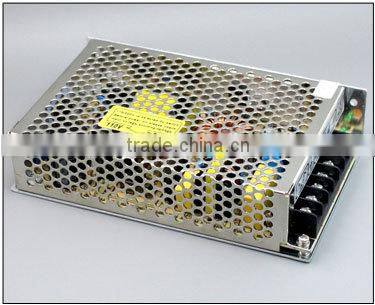

WEHO MS-120-15 120w 15v 8a mini size power supply
| Model | MS-120-5 | MS-120-12 | MS-120-15 | MS-120-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 24A | 10A | 8A | 5A | |
| Current Range | 0~24A | 0~10A | 0~8A | 0~5A | |
| Rated Power | 120W | 120W | 120W | 120W | |
| Ripple & Noise (max.) Note.2 | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | |
| Voltage Adj. Range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | |
| Voltage Tolerance Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise time | 200ms 100ms | ||||
| Hold time (Typ.) | 30ms | ||||
| Input | Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC | |||
| Frequency Range | 47~63HZ | ||||
| Efficiency(Typ.) | 70% | 76% | 77% | 79% | |
| AC Current(Typ.) | 0.5A/115VAC 0.25A/230VAC | ||||
| Inrush Current (Typ.) | COLD START 15A/115VAC 30A/230VAC | ||||
| Leakage Current | <0.5mA / 240VAC | ||||
| Protection | Over Load | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| Environment | Working Temperature | -10 ~ +60°c (Refer to "Derating Curve" ) | |||
| Working Humidity | 20~90% RH Non-condensing | ||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
Safety & EMC (Note 4.) | Safety Standards | UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | ||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | ||||
| Others | MTBF | 522.1K hrs min. MIL-HDBK-217F (25 °c) | |||
| Dimension | 159*97*37mm (L*W*H) | ||||
| Packing | 0.48Kg; 30pcs/4.55Kg/0.9CUFT | ||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | ||||
Product Description
Packaging & Shipping
we use 4 trips to reinforce our carton,
the international standards package methods guaranteed our goods safety during transportationwe are a professional manufacturer of power supplies ,
all of our products have approved CE ROHS and ISO9001:2008
