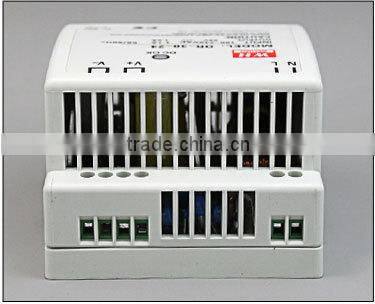

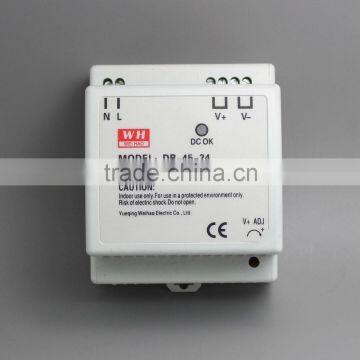

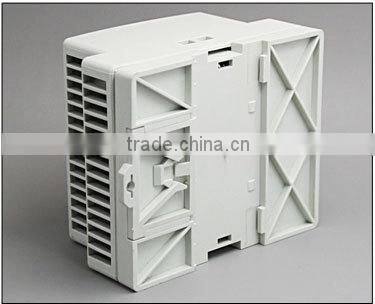

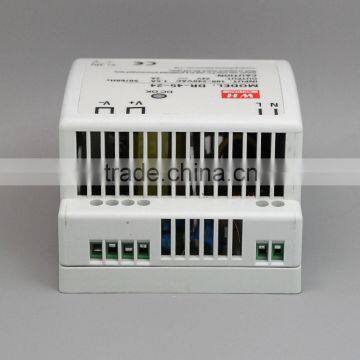

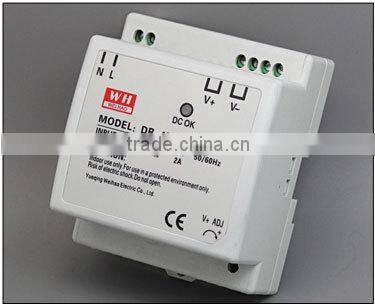

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15

Name: CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15
Brand: weihao
SKU: 120486959
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-1

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-2

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-3

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-4

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-5

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 thumbnail-6

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-1

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-2

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-3

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-4

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-5

CE RoHS Approved 45W 15V DIN Rail High Voltage Switching Power Supply DR-45-15 photo-6

US$ 11.27 - 13.86 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

DR-45-15

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo / ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name weihao

Model Number DR-45-15

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 85~264V

Output Voltage 15V

Output Frequency 47~63HZ

Output Current 2.8A

WEHO CE RoHS approved 45W 15V DIN Rail high voltage switching power supply DR-45-15

MODEL	DR-45-5	DR-45-12	DR-45-15	DR-45-24
DC VOLTAGE	5V	12V	15V	24V
RATED CURRENT	5A	3.5A	2.8A	2A
CURRENT RANGE	0 ~ 5A	0 ~ 3.5A	0 ~2.8A	0 ~ 2A
RATED POWER	25W	42W	42W	48W
RIPPLE & NOISE (max.)	100mVp-p	200mVp-p	240mVp-p	480mVp-p
VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V
VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
SETUP, RISE TIME	80ms, 60ms/230VAC at full load
HOLD TIME(Typ.)	100ms/230VAC at full load
VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	72%	77%	77%	80%
AC CURRENT	1.5A/115VAC 0.75A/230VAC
INRUSH CURRENT(max.)	COLD START 28A/115VAC 56A/230VAC
LEAKAGE CURRENT	<1mA/240VAC
OVERLOAD	105 ~ 150% rated output power
OVERLOAD	Protection type : Constant current limiting,recovers automatically after fault condition is removed
OVER VOLTAGE	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
OVER VOLTAGE	Protection type : Shut down o/p voltage,re-power on to recover
OVER TEMPERATURE	Tj 135ºC typically (U1) Detect on heat sink of power transistor
OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
WORKING TEMP.	-10 ~ +60ºC
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85ºC , 10 ~ 95% RH
TEMP. COEFFICIENT	±0.03%/ºC (0 ~ 50ºC)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS	Design refer to UL508,TUV EN60950-1
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT	Compliance to EN61000-3-2,-3
EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A
MTBF	364.6K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION	937867mm (LWH)
PACKING	0.31Kg; 48pcs/16.1Kg/1.3CUFT

Product Description

Packaging & Shipping

we use 4 trips to reinforce our carton,

the international standards package methods guaranteed our goods safety during transportation

we are a professional manufacturer of power supplies ,

all of our products have approved CE ROHS and ISO9001

Our Services

Company Information

FAQ

1.Voltage

• Output XXV on the switching power supply. XX is the voltage.

E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............

2.Current:

• Output XXA on switching power supply . XX is the current.

E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......

3.Quality

• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.

4.Delivery

• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements

5. Guarantee period

• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.

6. Applications

• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.

• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.

• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.

• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.

• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.

• Electrical filed series: TV,VCRS,Radio ect.

7.Distributor

We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
