Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > S-500-36 500w 36v Industrial Led Switching Power Supply With PFC

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC

Name: S-500-36 500w 36v Industrial Led Switching Power Supply With PFC
Brand: weihao
SKU: 120485267
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-1

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-2

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-3

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-4

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-5

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC thumbnail-6

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-1

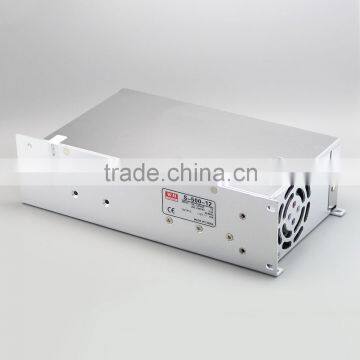

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-2

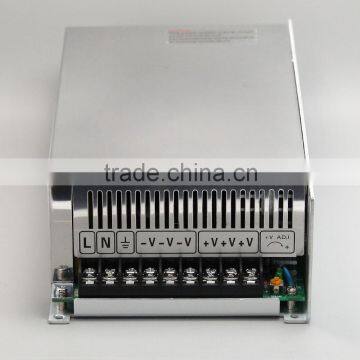

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-3

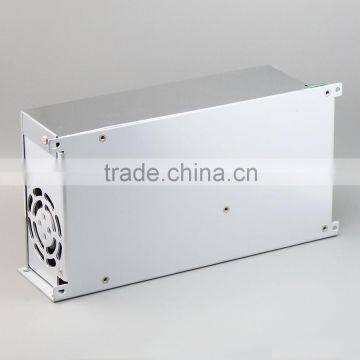

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-4

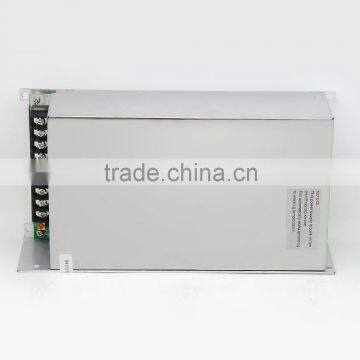

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-5

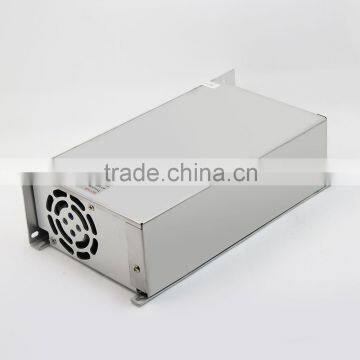

S-500-36 500w 36v Industrial Led Switching Power Supply With PFC photo-6

US$ 42.2 - 45.6 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

SP-500-12

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name weihao

Model Number SP-500-12

Output Power 401 - 500W

Output Type Single

Input Voltage 220V

Output Voltage 12V

Output Frequency 47~63HZ

Output Current 40A

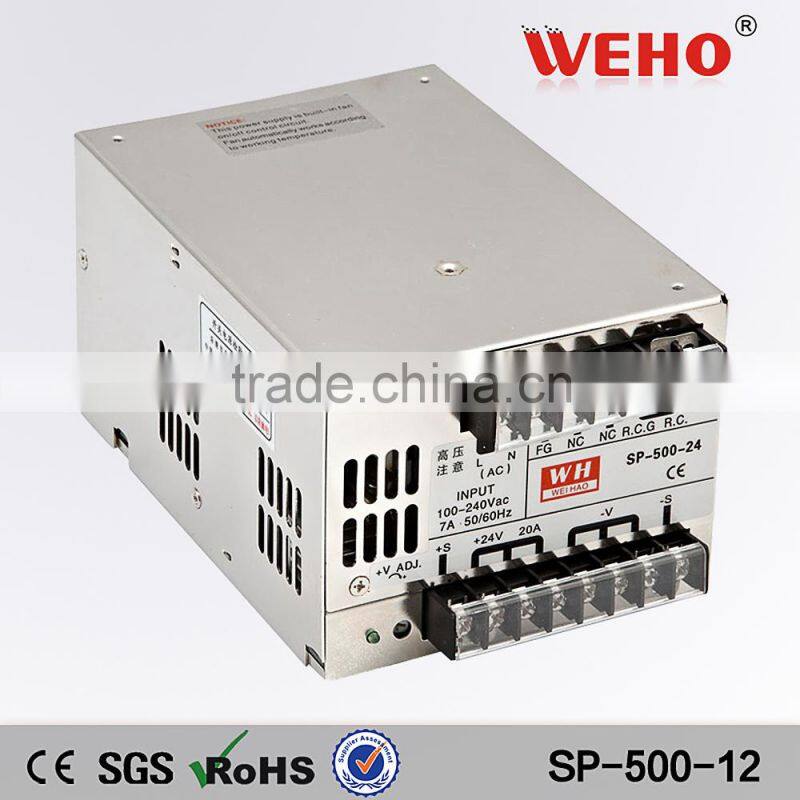

WEHO SP-500-12 500w 12v industrial led switching power supply with PFC

Model Specification	SP-500-12	SP-500-13.5	SP-500-15	SP-500-24	SP-500-27	SP-500-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	40A	36A	32A	20A	18A	10A
Output current rage	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Wave and noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	480W	486W	480W	480W	486W	480W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC
AC Input current	7A/115V 3.5A/230V
Power Factor	0.95/100240VAC
AC impulse current	18A/115V 36A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%135% TypePULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	13.816.2V	15.518.2V	1821V	27.632.4V	3136.5V	57.667.2V
Fan control,O.T.P.	RTH1 OR RTH2>=50 FAN ON,<=45 FAN OFF,>=70 Cut off output
Temperature coefficient	±0.03%(050)
Setup rise hold up time	1.5s,50ms,20ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VDC/100M Ohms
Working temperature and humidity	-10+50,20%90%RH
Store temperature and humidity	-20+85,10%95%%RH
Overall dimension	1852093mm
Weight	1.8Kgs
Safety standards	UL1950,TUV EN60950
EMC standards	IEC1000-42,3,4,5,6,8,11 IEC100-3-2

Product Description

Packaging & Shipping

we use 4 trips to reinforce our carton,

the international standards package methods guaranteed our goods safety during transportation

we are a professional manufacturer of power supplies ,

all of our products have approved CE ROHS and ISO9001:2008

Our Services

Company Information

FAQ

1.Voltage

• Output XXV on the switching power supply. XX is the voltage.

E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............

2.Current:

• Output XXA on switching power supply . XX is the current.

E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......

3.Quality

• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.

4.Delivery

• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements

5. Guarantee period

• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.

6. Applications

• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.

• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.

• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.

• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.

• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.

• Electrical filed series: TV,VCRS,Radio ect.

7.Distributor

We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
