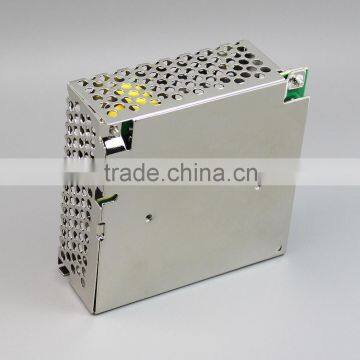

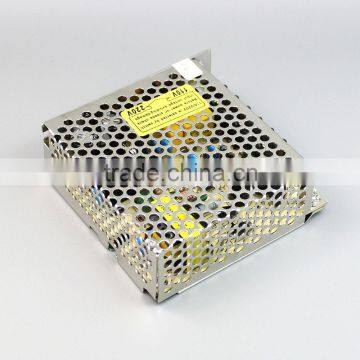

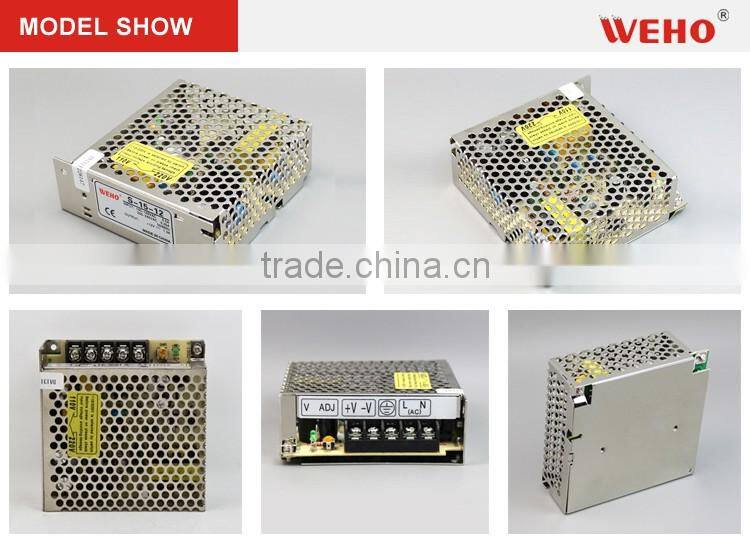

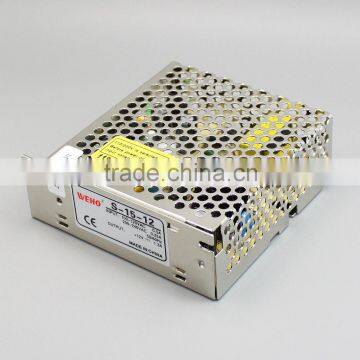

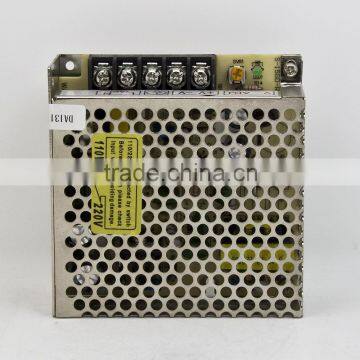

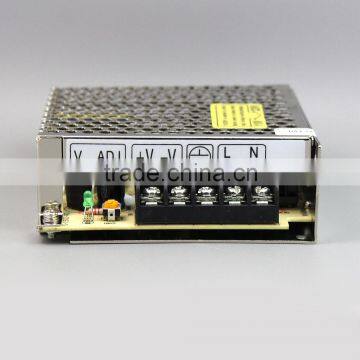

WEHO Yueqing Cheap S-15-12 12V 1.3A 15W AC To DC Mini SMPS Switch Mode Power Supply
You are in:Home>>12V Switching Power Supply>>
WEHO Yueqing Cheap 12V 1.3A 15W AC To DC Mini SMPS Switch Mode Power Supply S-15-12
| Model | S-15-5 | S-15-12 | S-15-15 | S-15-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Rated output current | 3A | 1.3A | 1A | 0.7A |
| Output current rage | 0-3A | 0-1.3A | 0-1A | 0-0.7A |
| Wave and noise | 50mVp-p | 50mVp-p | 75mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 65% | 68% | 70% | 72% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | AC100~240V 47~63Hz;240~370VDC | |||
| Input current | 0.5A/115V0.25A/230V | |||
| AC INnrush current | Cold-start current 15A/115V 30A/230V | |||
| Overload proctection | 105%~150% Tpye:Foldback current limiting Reset: auto recovery | |||
| Over-voltage protection | ||||
| Setup rise hold up time | 200s,100ms,30ms | |||
| Withstand voltage | Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC | |||
| Isolation resistance | Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ | |||
| Working temperature | -10°C~+50°C | |||
| Overall dimension | 98*97*35mm | |||
| Safety standards | Meet ULGB4943 UL60950 EN60950 requirement | |||
| EMC standards | Meet EN55022 GB9254 class A requirement | |||
| Weight | 0.3Kgs | |||


| Related Products | ||
![]() | ||
| Wattage | 15W~1500W | |
| Features | High number of economic type safety with series 3.3V, 5V, 7.5V, 9V, 12V, 15V, 24V, 27V,36V, 48V | |
| Model No. Date Link | MS Series MS-15W MS-25W MS-35W MS-50W MS-60W MS-100W | |
S Series S-250W S-300W S-350W S-400W S-500W S-600W | ||
| SCN Series SCN-600W SCN-800W SCN-1000W SCN-1500W | ||
| DR Series DR-30W DR-45W DR-60W DR-75W DR-120W DR-240W | ||
| MDR Series MDR-20W MDR-40W MDR-60W | ||
| LPV Series LPV-15W LPV-20W LPV-30W LPV-50W LPV-60W LPV-100W LPV-150W LPV-200W LPV-250W | ||
| NES Series NES-15W NES-25W NES-35W NES-50W NES-75W NES-100W NES-350W | ||
WEHO company is a high-tech enterprise which is engaged in the design, development, and production of switching power series products.Our goods are ideal products for the traditional control of transformers.Our power supply design conforms to IEC950, UL1950, UL1012, TUV, EN60950 and ECEMCLVD standards. Therefore our products sell well all over the country and are exported to the United States, Europe and Southeast Asia.We warmly welcome domestic and foreign clients from all walks of life to visit for cooperation and common development and create brilliance.
Packaging Details: Netural packing/Customers packing are acceptable
Delivery Detail: Sample in stock, 3-7days for bulk production
1.Voltage
• Output XXV on the switching power supply. XX is the voltage.
E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............
2.Current
• Output XXA on switching power supply . XX is the current.
E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......
3.Quality
• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.
4.Delivery
• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements
5. Guarantee period
• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.
6. Applications
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
7.Distributor
We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
