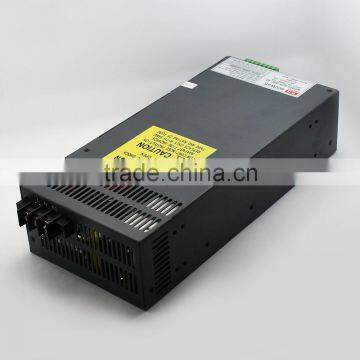

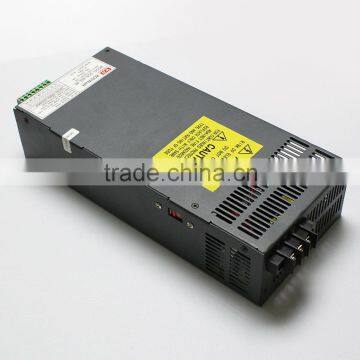

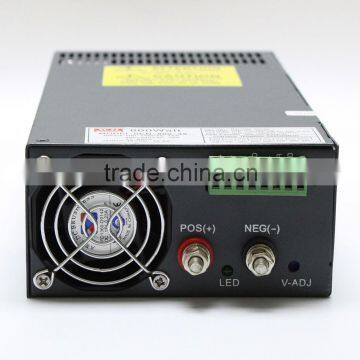

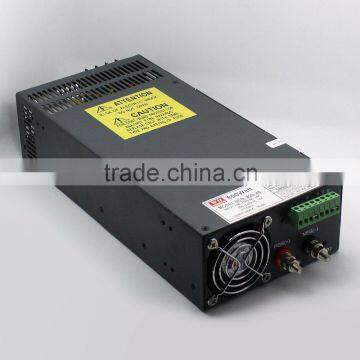

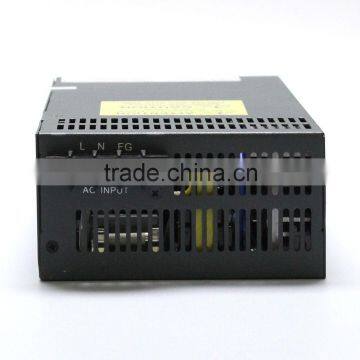

Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Scn-800-12 66a Industrial Big Power 800 Watts 12v Power Supply
US$ 114.8 - 114.8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHO
Model Number:
SCN-800-12
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Output S-600-12 50a Power Supply 600w 12vUS$ 65.9 - 65.9MOQ: 1 Piece -
Cooling Fan Transformer S-300-12 25a 12v Ip20 Switching Power SupplyUS$ 13.7 - 13.7MOQ: 1 Piece
-
S-250-12 With CE RoHS Approved 12v 20a ac to dc Power SupplyUS$ 13.6 - 13.6MOQ: 1 Piece
-
Professional Manufacturer 12v 24v 10w ac dc Single Output Power SupplyUS$ 3.5 - 4.5MOQ: 1 Piece
-
WEHO OEM S-60-12 60W 110V or 220V 12V 5A CCTV UPS Switching Model Power SupplyUS$ 5.6 - 7.2MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
WEHO
Model Number
SCN-800-12
Output Power
Other, >500W
Output Type
Single
Input Voltage
220V
Output Voltage
12V
Output Frequency
50Hz
Output Current
66A
800 watts power supply
1.CE RoHS approved
2.2 years warranty
3.80% efficiency
4.100% test

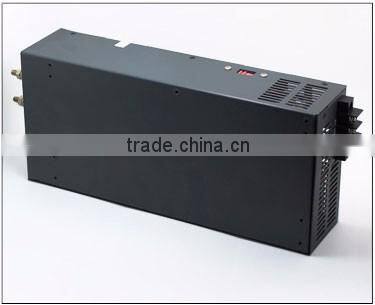

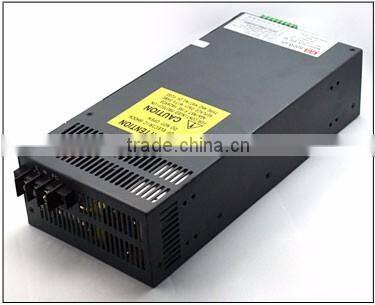

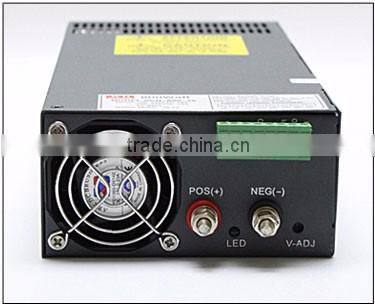

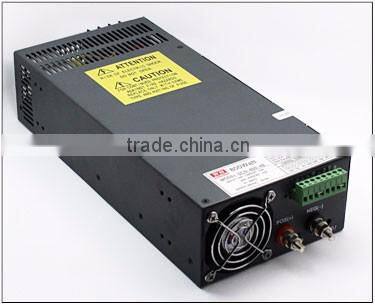

scn-800-12 66a industrial big power 800 watts 12v power supply
| MODEL | SCN-800-12 | SCN-800-15 | SCN-800-24 | SCN-800-48 | |
| OUTPUT | DC Voltage | 12V | 15V | 24V | 48V |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 66A | 54A | 33A | 16.6A | |
| Current Range | 0-66A | 0-54A | 0-33A | 0-16.6A | |
| Rated Power | 800W | 800W | 800W | 800W | |
| Ripple & Noise | 150mVp-p | 150mVp-p | 240mVp-p | 480mVp-p | |
| DC Adjustment Range | ±5%; Can adjust from 40%~100% output voltage by external control 2-5V | ||||
| Setup, Rise, Hold Time | 800ms, 50ms, 16ms at full load | ||||
| INPUT | Voltage Range | 90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC | |||
| AC Current | 13A/115 VAC 8.0A/ 230 VAC | ||||
| Efficiency | 80% | 81% | 85% | 87% | |
| Inrush Current | 60A/230V | ||||
| Leakage Current | 3.5 mA/240VAC | ||||
| PROTECTION | Over Load | 110%~135% | |||
| Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover | |||||
| Over Voltage | 110%~135% | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temp | TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | Working Temp., Humidity | -10°C~+65°C,20%~90 %RH | |||
| Storage Temp., Humidity | -20°C~+85°C,10%~95 %RH | ||||
| Vibration | 10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
| SAFETY | Withstand Voltage | I/P-O/P, I/P-FG:1500VAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
| STANDARD | Safety Standard | Design refer to UL1950,CSA22.2,IEC60950 | |||
| EMC Standard | Design refer to FCC Part 15 Class A | ||||
| OTHERS | Weight | 2.3Kg; | |||
| Packing | 8pcs/24.0kg/CARTON | ||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | |||||
| 3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||
| 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
Product Description
Packaging & Shipping
we use 4 trips to reinforce our carton, the international standards package methods guaranteed our goods safety during transportation
we are a professional manufacturer of power supplies , all of our products have approved CE ROHS and ISO9001:2008
