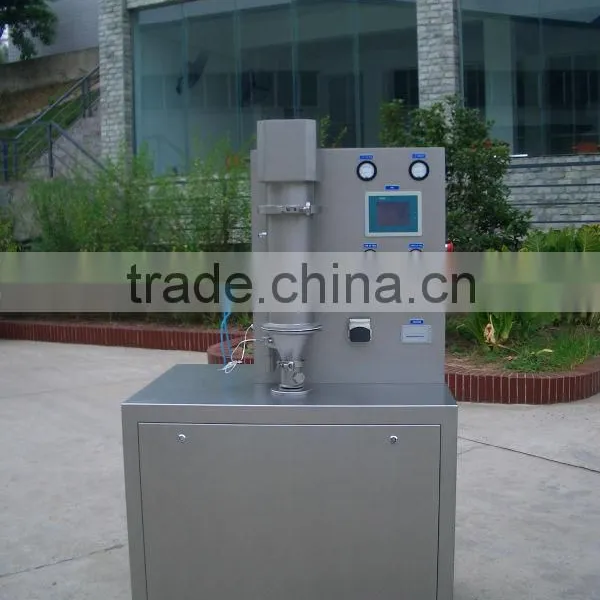

JG DPL Lab Fluid Bed Coater/granulator/dryer

Name: JG DPL Lab Fluid Bed Coater/granulator/dryer
Brand: CQJG
SKU: 120475847

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

CQJG

Model Number:

DPL

Chongqing Jinggong Pharmaceutical Machinery Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

as per your requirments

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name CQJG

Model Number DPL

Application Granules

Type Other, mutifunctional fluid bed

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.PLC control
ply with GMP
3.CE Certification

Product Description

Appliction:

1.This machine is one of the main process equipments in the solid dosage production

procedure in pharmaceutical industry, and is also widely used in chemical, foodstuff

industries, etc… it is set with top spray, bottom spray, and side pray functions in order

to carry out mixing, drying, granulation, coating and pelletizing processes

2.Our machine is particularly designed for the pharmaceutical, food, feedstuff

and chemical research laboratory. Granulation, pelletization, powder layering

and film coating processes can be carried out in the mini-DPL by changing

different container conveniently.

3.PLC is designed to ensure a fully automatic control. All the operations are

automatically finished according to the customer’s set parameters; moreover, process

parameters can be printed and records of original data are fully true and reliable.

Features:

1.dust free

2.easy discharge

3.negative pressure system
4.Clear Human Machine Interface

MIni-DPL Main parameter (as reference)
Specification			Model
Specification		Denomination	0.5	1	3
Material Container	Volume	ml	200-2000	500-3000	1500-6000
Material Container	Dimension	mm	280	320	400
Tower Dimension (mm)		Kg/batch	0.5	1	3
Heater	voltage	v	380 V
Heater	power	kw	4
Compression air	Pressure	mpa	0.4-0.6
Compression air	Steam flow	m3/min	0.6	0.6	0.9
Blower		kw	2.2	4	4
Noise		db	less than 75db
Tower Dimension (mm)	A		1900	2100	2250
	B		1200	1200	1200
	C		750	900	900
	D		280	320	400
