Specifications
CE Approved Pet Food Pellet Machine1. CE certificate
2.Comply with GMP/FDA
3. PLC controls
4.PID system control
Description:
High Quality CE Approved Pet Food Pellet Machine has these functions:
Mixing:All products which can be fluidized e.g. powder, granules, extrudates, pellets etc. are homogeneously mixed in the Jinggong DPL fluid bed process unit. By the special process air flow (horizontal , radial and tangential ) the mixing behaving is particularly good.
Drying:All products which can be fluidized up to every residual moisture physically possible.

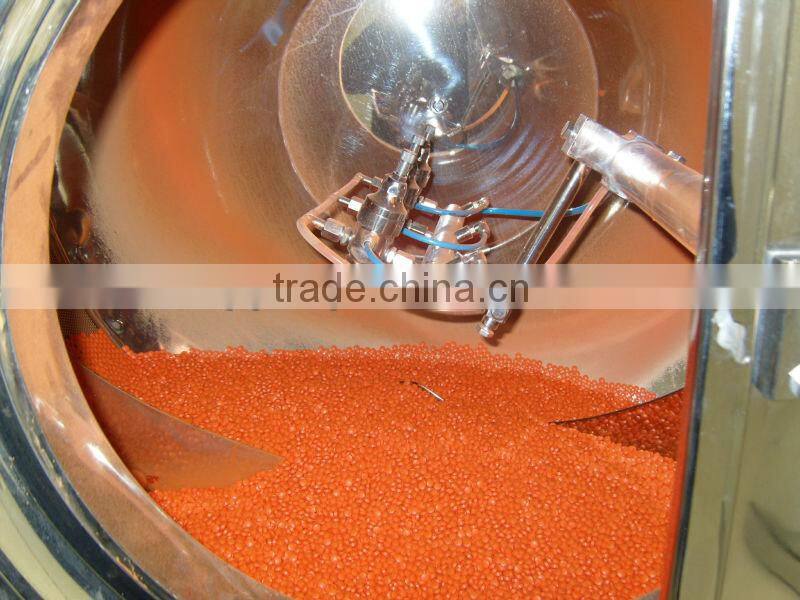

Granulation
Powdery products. By spraying of binders nearly every requested granules can be produced.
Features:
1.with high drying efficiency
2.can print and record operation parameters under the control of PLC and HMI.
3.Inlet handling system consists 3 grades filter
4.Exhaust air can be designed as the customers’ requirments.
5.Lifter unloading or vacuum unloading is designed to form dust free unloading,meets with the GMP.
6.Anti-explosion is optional to guarantee safty.
7.Dehumidification system and WIP online cleaning system are optional
Parameters:
2Bar FL300 | |||||||||||||||
Name |
Unit |
2BarFL300 |
|||||||||||||
Product container |
top spray |
volume |
L |
998 |
|||||||||||
diameter |
mm |
1600 |
|||||||||||||
liquid proportion |
g/cm3 |
1.3 |
|||||||||||||
Capacity rating |
top spray |
kg/time |
max 300min100 |
||||||||||||
power supply |
|
380V±15%,3 ph,50Hz |
|||||||||||||
|
pressure |
MPa |
min 0.3 |
||||||||||||
consumption |
kg/h |
max480 |
|||||||||||||
|
heating exchanger area |
m2 |
135 |
|||||||||||||
heating temperature |
°C |
-10 ~ 90 |
|||||||||||||
|
Main machine granulating compressed air consumption |
pressure |
MPa |
min 0.5 |
||||||||||||
consumption |
m3/min |
1.3 |
|||||||||||||
Induced draught fan |
fan type |
pharmaceutical special |
|||||||||||||
fan power |
kw |
Without dehumidification |
With dehumidification |
||||||||||||
30 |
37 |
||||||||||||||
blowing rate |
m3/h |
8000 |
10000 |
||||||||||||
full pressure |
Pa |
10000 |
11000 |
||||||||||||
muffler |
model |
12# |
|||||||||||||
voice |
dB (isolation treatment ) |
≤75 |
|||||||||||||
WIP washing pump |
motor power |
kw |
2.2 |
||||||||||||
rate of flow |
m3/h |
6 |
|||||||||||||
|
m3/min |
0.1 |
|||||||||||||
|
m3/min |
0.1 |
|||||||||||||
Hot water (consumption) |
m3/min |
0.1 |
|||||||||||||
Cleaning gun head |
Connector size |
2″ |
|||||||||||||
Water supply ball valve |
Connector size |
2″ |
|||||||||||||
detergent pump |
flow (consumption) |
L/h |
60 |
||||||||||||
|
dimension |
mm |
500×800×100 |
||||||||||||
F9 secondary efficient filter |
dimension |
mm |
Plate type |
500×800×150 |
|||||||||||
H13 HEPA filter |
dimension |
mm |
1260×500×295 |
||||||||||||
main machine material |
|
|
|||||||||||||
Auxiliary machine material |
304 |
|
|||||||||||||
Equipment dimension |
see drawing |
|
|||||||||||||
|
about 3200kg(standard configuration) |
|
|||||||||||||
about 3800kg(high-level configuration) |
|
||||||||||||||
Packaging
standard wooden case
Delivery time
Within 45 days after first payment
Payment
30% T/T pre-payment
70%T/T before the delivery time
Warranty
1-2 years under the 8 hours working time
Our Services:
1.Installation, commissioning and training
2.Provide Two years recommended spare parts
3. make trial production with 3 batches material
4.Supply the validation documents
Installation, commissioning:
Company profile:
Chongqing Jinggong Pharmaceutical Machinery co.,Ltd. was established in 1996, company is more than 30mu includes 20000 square meters scientific and production plants. We are certified as a high-new-technology company by the Technologic Council of Chongqing. And the quality management system was founded and assessed to be in compliance with the ISO9001,CMP,CE.
As a full service company, Jinggong always hold on this belief”research and develop independently ,master the core technology,be successful with quality” ,so we have engaged in Fluid bed,granulators,coters etc. in pharmaceutical, food, feedstuff and chemical industry for many years to make our footprints around all the world.
And now, professional engineers and sale teams can provide you better products and technical guidance,but we are still on the way to make our customers more satisfied.
Certificate
JG footprints
Our poducts have been sold to more than 30 provinces in china and all the world
