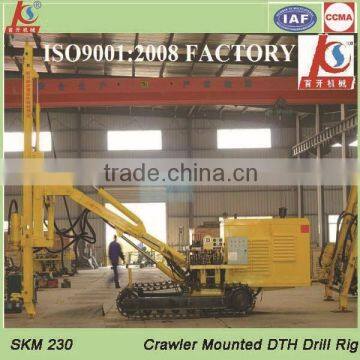

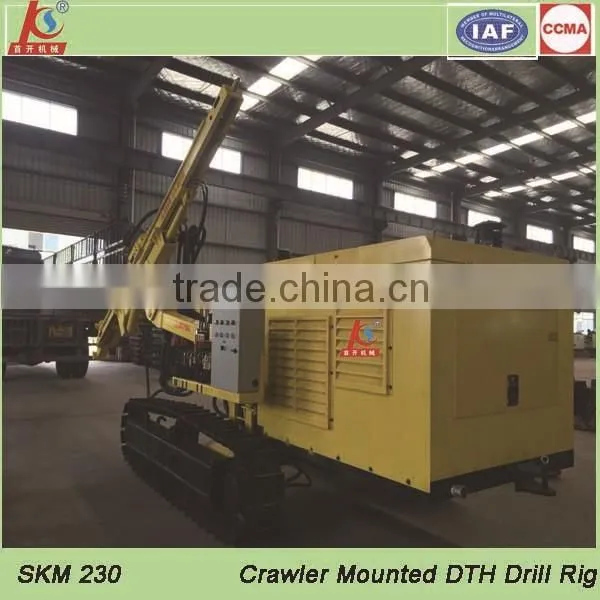

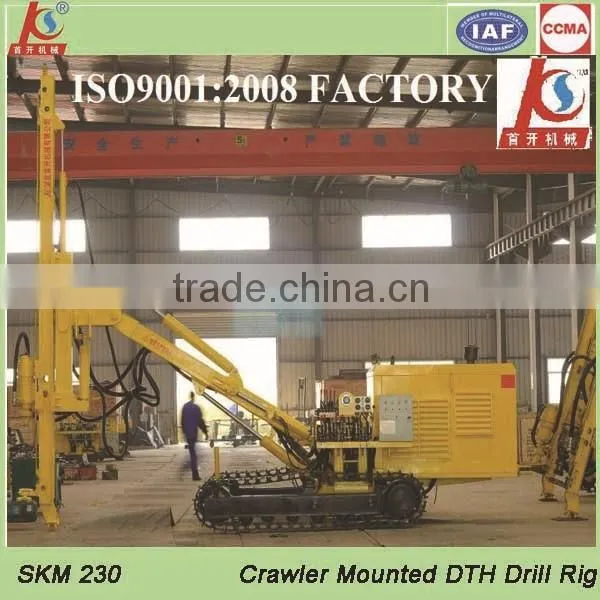

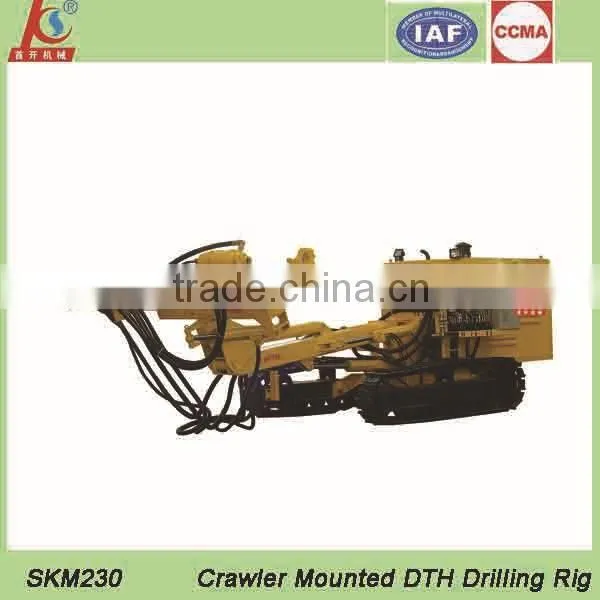

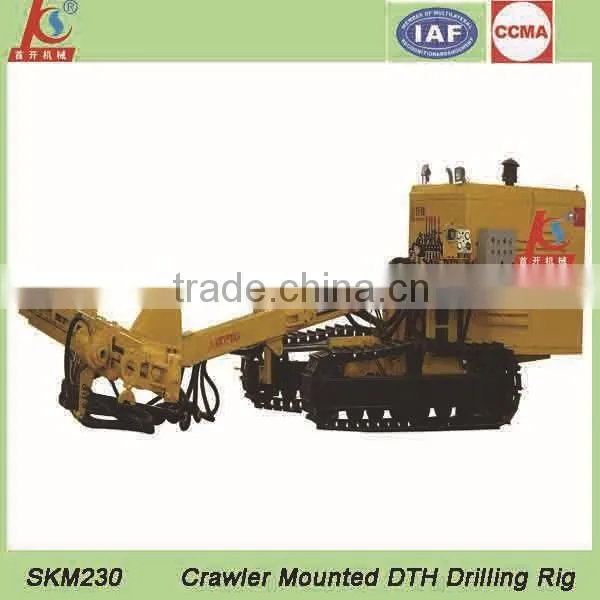

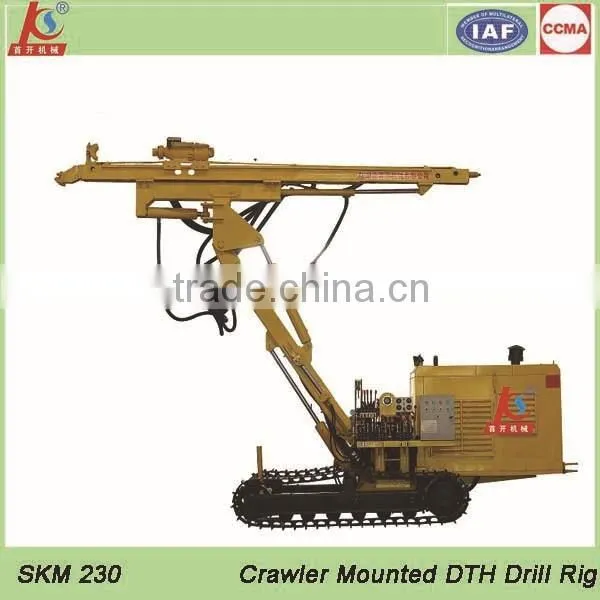

Borehole drilling machine price
1, new propulsion system
use hydro-cyclinder chain pully propulsion system, compact structure, big lifting force and stablity.
2, centralized controls system
It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.
conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for drilling.
The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.

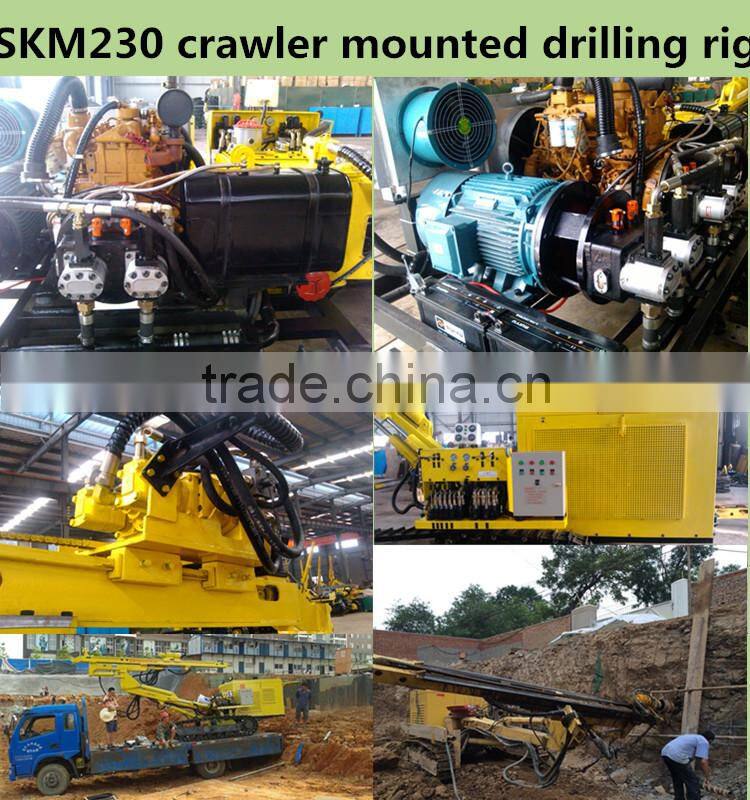

3, reliable hybrid power
providing YC4108 4-cylinder turbo diesel engine and electric motor for this drilling rig. operator can use diesel to run this machine in area where there is no electric power, otherwise can use electric motor.
water tank and hydraulic oil radiator guarantees diesel, electric motor and drilling rig hydraulic system operating safely and reliably.
single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.
4, air lubricator
The specialized air lubricator atomize lubricant using ari source from air compressor and send to hammer. It will lubricate and protect the hammer reliably and prolong hammer's working life.
5, strong power head
Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque.
6, diesel protection device
natural inhaling system combines of desert air filter, second air filter and oil filter to improve the applicability for severe environment and working life of diesel
The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.
Unidirection throttle valve can adjust and stablize air inflow of diesel.
air dryer can remove the water of air source of air compressor efficiently.
7,reliable four wheel and one belt
integrated crawler belt installs conveniently with reliable performance.
care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.

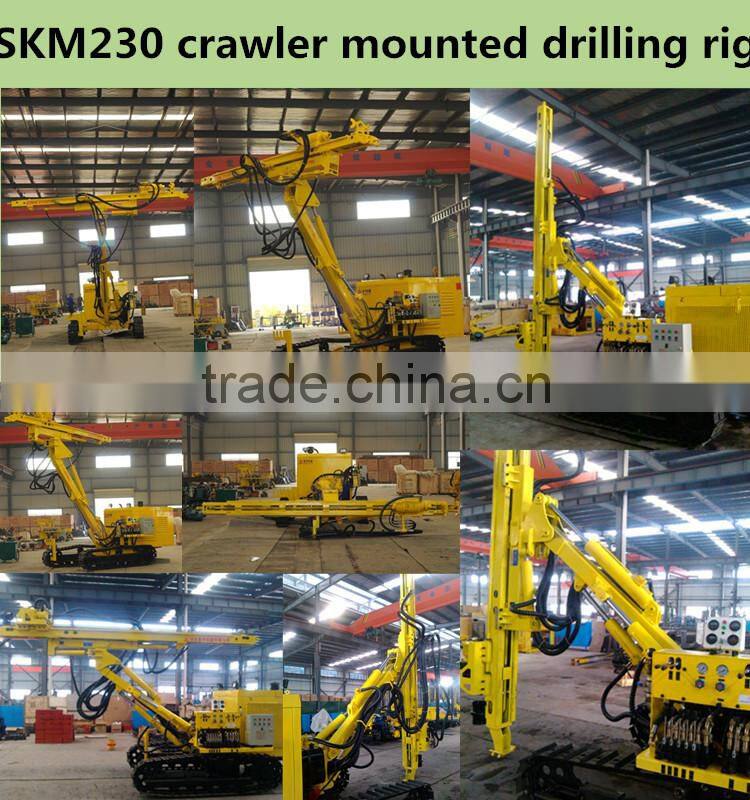

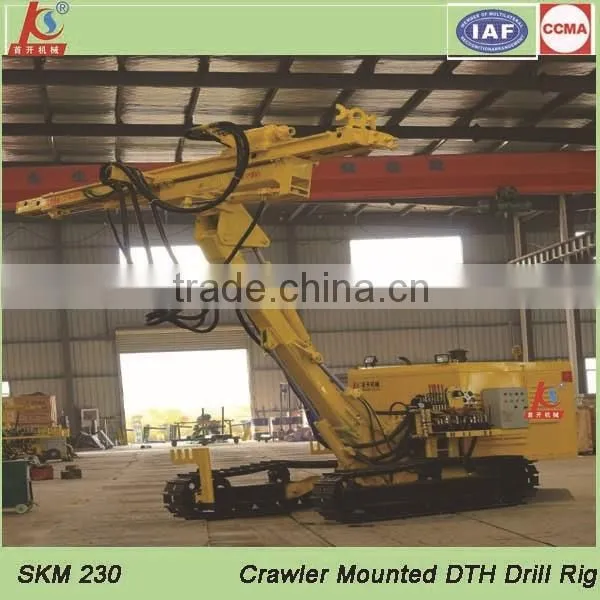

8, very flexible drill arm
the drilling rig has been installed support cylinder, pitching cylinder, two swing cylinders to make it drill in a wide range of angles and hight holes
| rock hardness | f=6~20 |
| bore diameter | 83~140mm |
| bore depth | 35m |
| hightest horizontal hole | 4.5m |
| lowest horizontal hole | 0.3m |
| travel speed | 2.5km/h |
| climbing ability | 30o |
| rotating speed | 0~70r/min |
| max. rotating torque | 2600N·m |
| max. lifting force | 16,000N |
| propulsion stroke | 3m |
| compensation stroke | 900mm |
| working air pressure | 0.7~1.7Mpa |
| air consumption | 9~14M3/ min |
| ground clearance | 295mm |
| mast pitching angle | ↓135°, ↑50° |
| mast swing angle | right 45o, left 100o |
| drill arm pitching angle | ↓50°, ↑25° |
| drill arm swing angle | right 45°, left44° |
| matched power | 36kw/48kw |
| overall dimension(transportation) | 4400 x 2200 x 2050mm |
| weight | 4.2 ton |
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
