Quarry machine !SKM150T pile foundation drilling rig

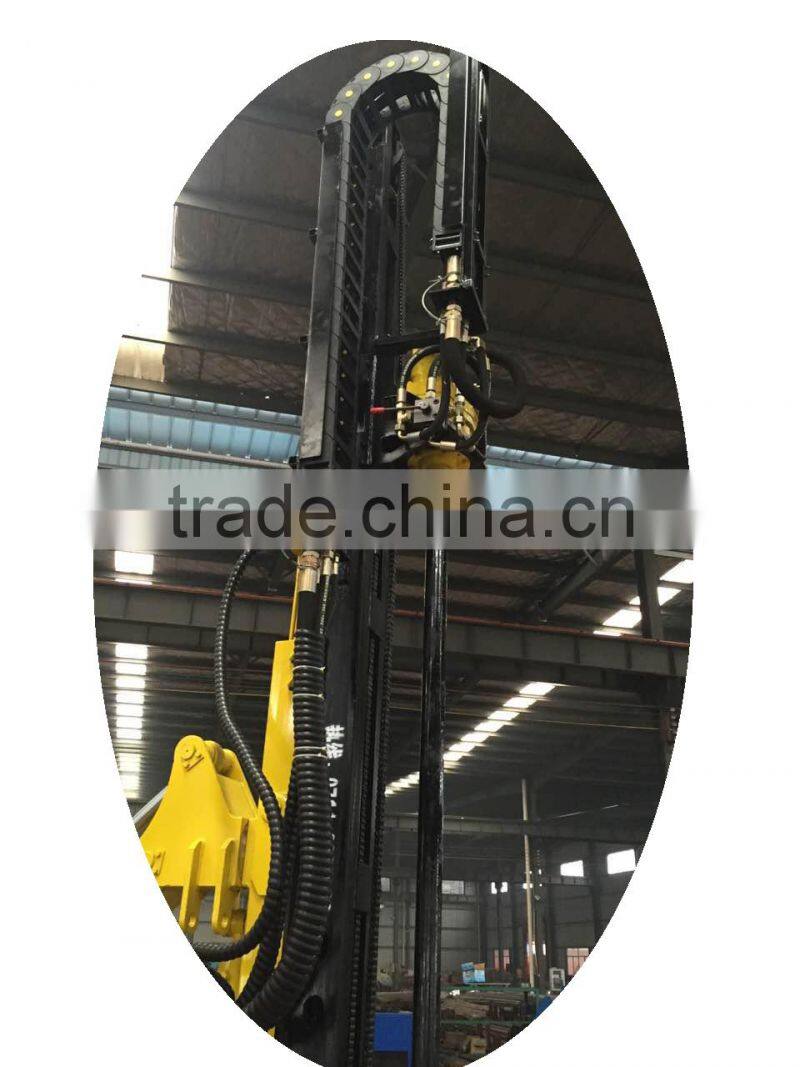

1, new drag chain to protect all air hose and oil hose .

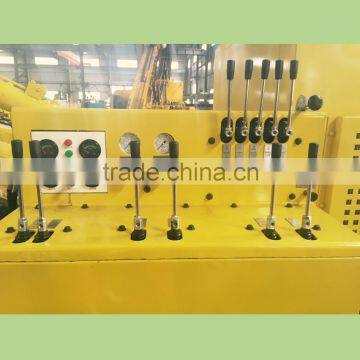

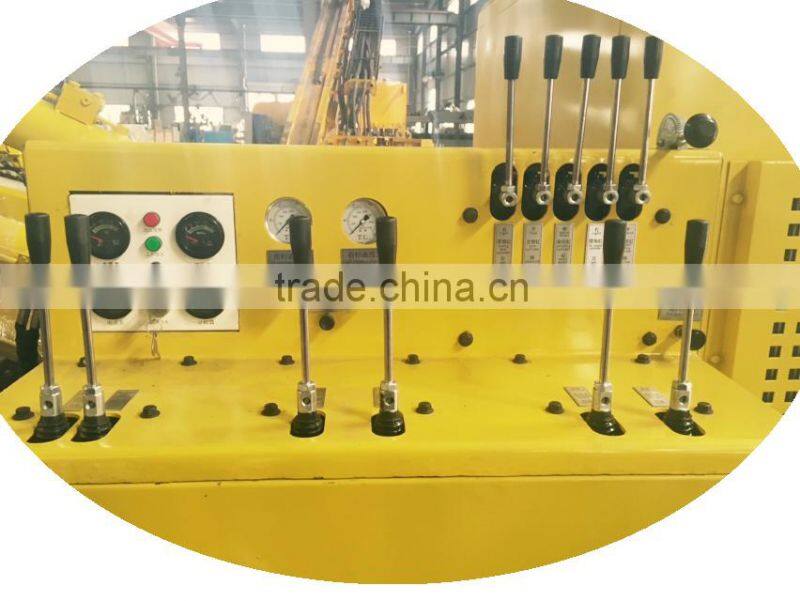

2, centralized controls system
It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.
conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.
The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.
3, reliable matched power

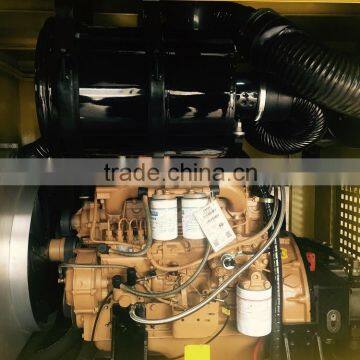

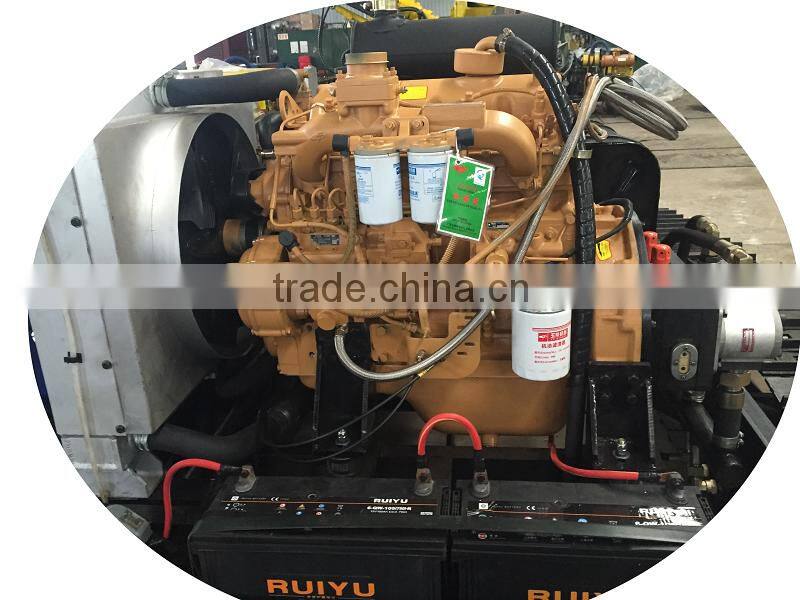

providing YC2115 diesel engine for this drilling rig. 56kw power with four cylinders.
water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.
single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.

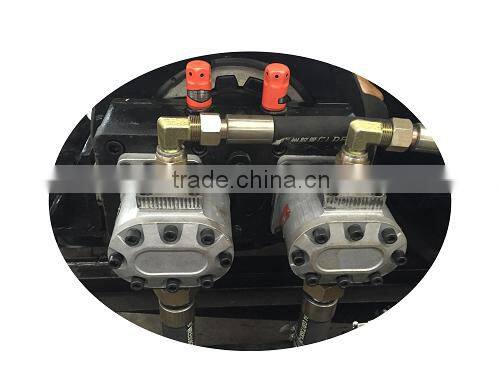

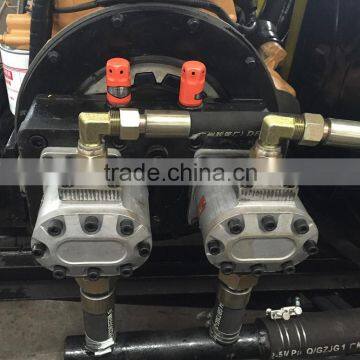

4, two 550C gear oil pump
Makes hydraulic oil produce much higher pressure ,provide much torque and power for hydraulic power head drilling.

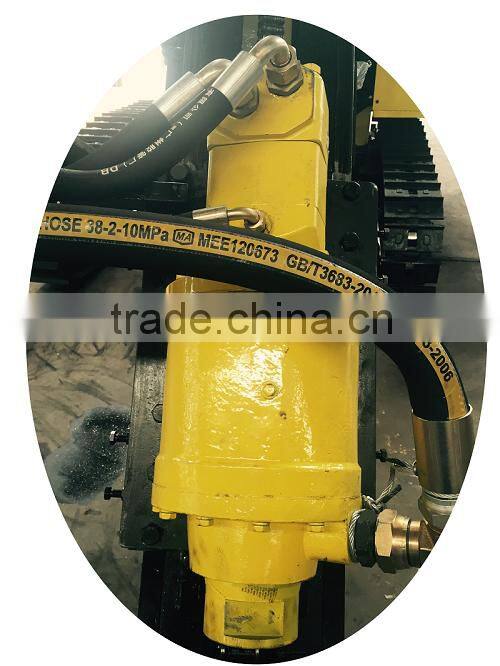

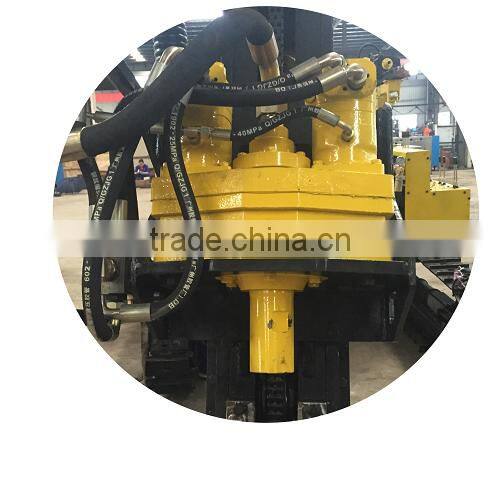

5, strong power head
Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque. one motor and two motor power head for your choose.
6, diesel protection device
natural inhaling system combines of desert air filter, second air filter and oil filter to improve the applicability for hostile environment and working life of diesel
The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.
Unidirection throttle valve can adjust and stablize air inflow of diesel.
air dryer can remove the water of air source of air compressor efficiently.
7,reliable four wheel and one belt
integrated crawler belt installs conveniently with reliable performance.
care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.
Main technical parameters:
| rock hardness | f=6~20 |
| bore diameter | 90~150mm |
| bore depth | 35m |
| hightest horizontal bore | 3.2m |
| lowest horizontal bore | 0.25m |
| travel speed | 2.5km/h |
| climbing ability | 30o |
| rotating speed | 0~70r/min |
| max. rotating torque | 2600N·m |
| max. lifting force | 16,000N |
| propulsion stroke | 3m |
| compensation stroke | 900mm |
| working air pressure | 0.7~1.7Mpa |
| air consumption | 9~14M3/ min |
| ground clearance | 295mm |
| mast pitching angle | ↓135°, ↑50° |
| mast swing angle | right 45o, left 100o |
| drill arm pitching angle | ↓50°, ↑25° |
| drill arm swing angle | right 45°, left44° |
| matched power | 56kw |
| overall dimension(transportation) | 4400 x 2200 x 2050mm |
| weight | 4.2 ton |

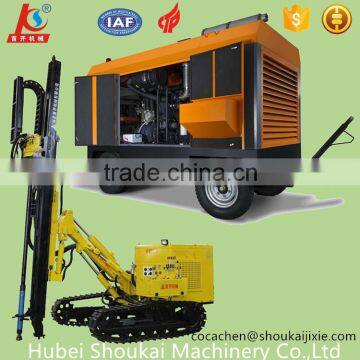

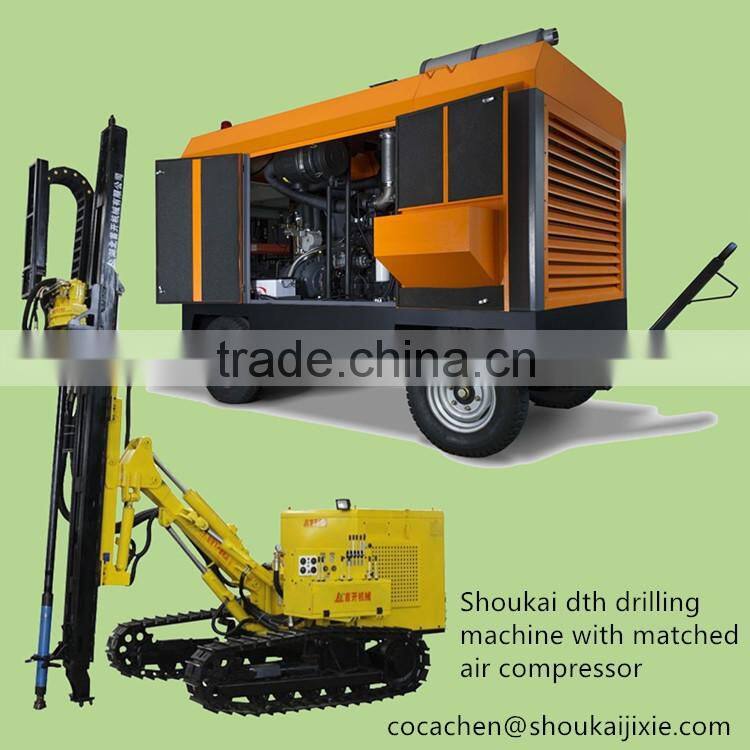

Technical parameters for the matched air compressor :
Model |
15-13 |
Gas displacement (m3/min) |
15 |
Gas displacement pressure(bar) |
13 |
Gasholder content (L) |
130 |
Lubricate oil content(L) |
65 |
Diesel engine manufacturer |
Commis |
Model |
6BTA5.9-C180 |
Rated power(kw) |
132 |
Rated rotate speed(rpm) |
2200 |
Diesel oil content(L) |
18 |
Cooling liquid content(L) |
35 |
Battery |
6-QW-135MF |
Fuel tank content(L) |
335 |
Dimension (mm) |
4200*1980*2210 |
Weight (kg) |
2700 |
Vent valve size |
1-G2” 1-G1” |
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets."Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2.We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Our custmer from Paksitan, Philippines,Vietnam,Indonisia, Russia etc visit our workshop to inspect our machines
Shoukai Machinery Company`s machines are famous at home and abroad,with more than 12 years manufacturer ,sales ,export experiences , our machines are applicated in many site, the following is a part of our machines to working on the site:
