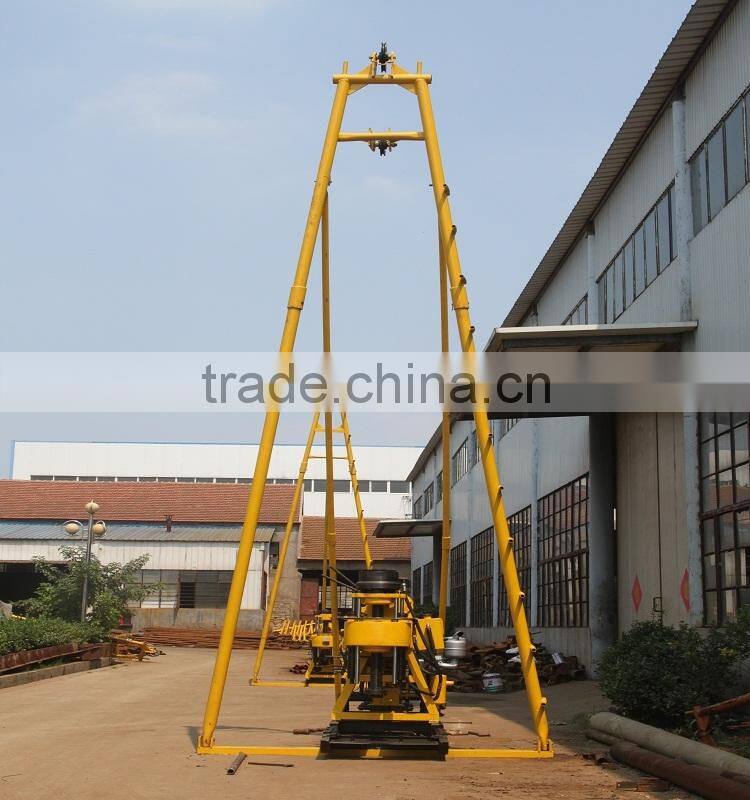

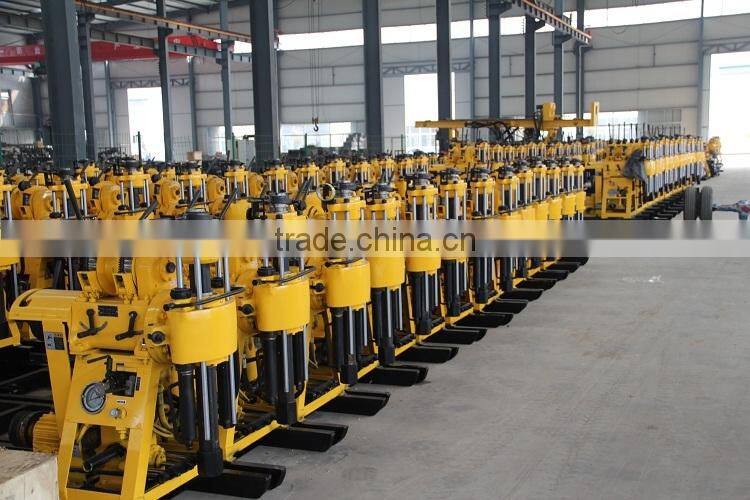

XY-180 hydraulic small water well drill machine
- 30 Set / Sets per Month
- shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Hubei, China | Brand Name: | shoukai | Model Number: | XY-200 |
Usage: | Ore | Power(W): | 15Kw | Dimension(L*W*H): | 2.4-0.8-1.3m |
Weight: | 600Kg | Certification: | ISO | Warranty: | 6-month |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Feature:
XY-180 adopts oil hyduaulic automatic feeding system, big modulus gear transportation, wide rotary speed range and big torque light core drilling rig. It is suitable for geology survery exploration, road and building survey, jet grouting inspection hole, blast hole, small water well and micropiles hole drilling etc.
The characters of XY-180 core drilling rig are listed below:
1, it has oil hydraulic automatic feeding system, improved the drilling efficiency and reduce the labor intensity.
2, adopts ball clamp device rather than chuck and assembled with clamp positioning device to withdraw rods without turn off
3, It has the pressure gauge to monitor the situation inside the hole.
4, integrated hand shanks make operation easy.
5, compact structure, drilling rig and engine are installed on one chassis. small occupying area.
6, light weight, good disassembling, easy to transport, suitable for working on plain and mountain.
7, assembled with safety shield to protect the operator.
Main specification
rated bore depth 180m (no more than 220m)
rated open hole diameter 75mm~220mm
spindle rotation speed 130, 300, 480, 730,830,1045 rpm
spindle stroke 450mm
spindle max. lifting force (single wire) 2100kg
drill rod diameter 42- 60mm
hole inclination angle 90~75°
drilling rig dimension 2.4*0.8*1.3
driling rig weight 620kg
diesel power 22KW
Related accessories and drill tools:
