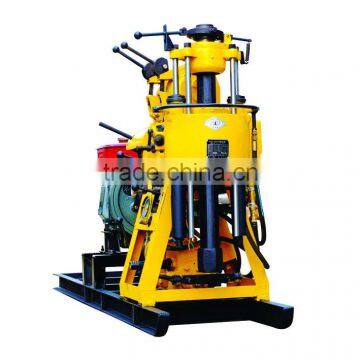

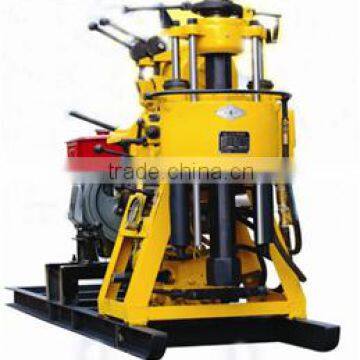

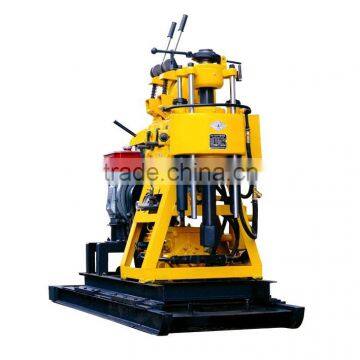

Core Drilling Rig Type and Water Well Usage Hydraulic Water Well Drilling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Core Drilling Rig
Power Type	Diesel	Place of Origin	Hubei, China
Brand Name	shoukai	Model Number	XY-130
Usage	Ore	Power(W)	22kw
Dimension(LWH)	2.70.91.5	Weight	880Kg
Certification	ISO	Warranty	6-month
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feature:

1, Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.

2,Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.

3,Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.

4,24V electric-strat diesel engine reduces the operator`s labor intensity.

5, Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.

6,Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

Portable tralier drilling rig main technical parameters

(Tech parameter)	Model(YYseries is a movable slide type)	XY-130	XY-180	XY-200
	Drilling depth(m)	130	180	200
	Open hole dia(mm)	220	220	325
	End hole dia(mm)	75	75	75
	Drill rod dia(mm)	42-60	42-60	42-60
	Drill angle(°)	90-75	90-75	90-75
	Matching power(kw)	13.2	13.2	15
	Weight without power(kg)	3350	3400	3600
	Dimension(m)	3.81.952.7	3.81.952.7	3.81.952.7
(Spindle)	Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
(Spindle)	Stroke(mm)	450	450	450
(Crawler chassis)	Crawler size(mm)	3509048part	3509048part	3509048part
	climbing angle(°)	20	20	20
	moving speed(km/h)	10km/h	10km/h	10km/h
	hydraulic landing leg valid height	1300	1300	1300
(Drill Mast)	Rated load(ton)	18	18	18
(Drill Mast)	Height(m)	6.5	6.5	6.5
(Mud pump)	Flow(L/min)	160	160	160
	ure(Mpa)	1.3	1.3	1.3
	times/min	165	165	165
	Inlet hose dia(mm)	51	51	51
	Outlet hose dia(mm)	32	32	32

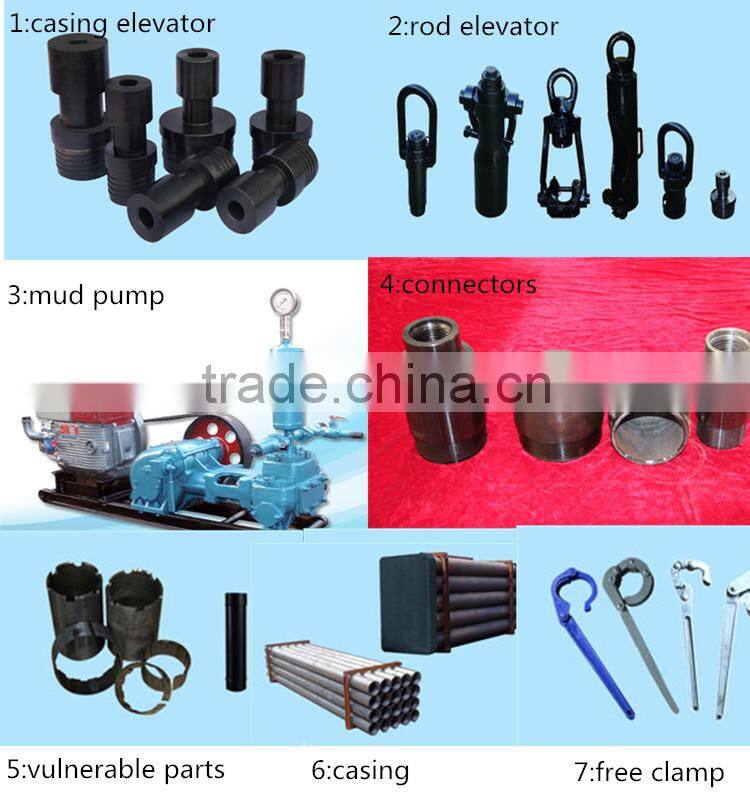

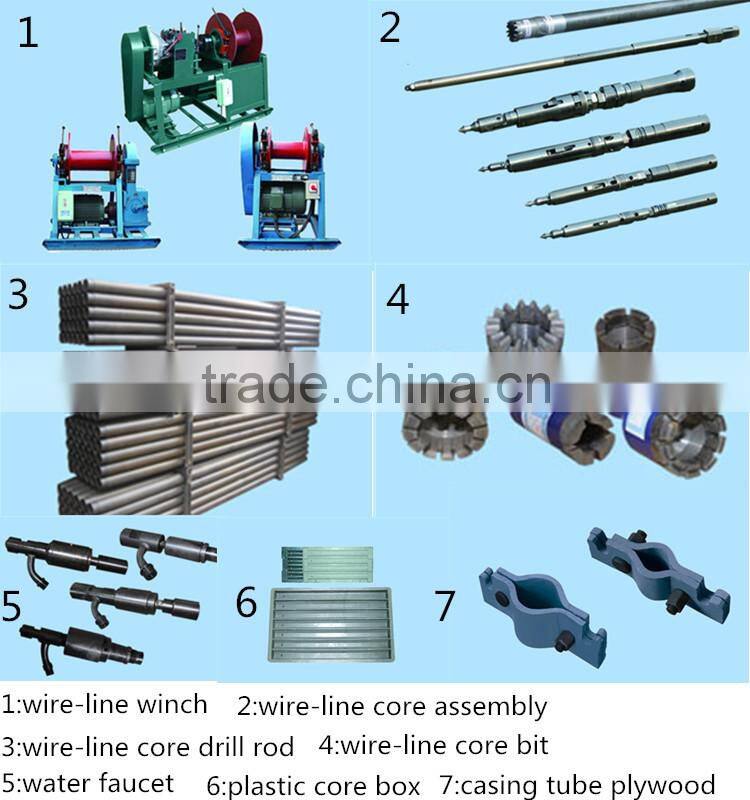

Related HQ,NQ,BQ accessories and drill tools:
