Specifications

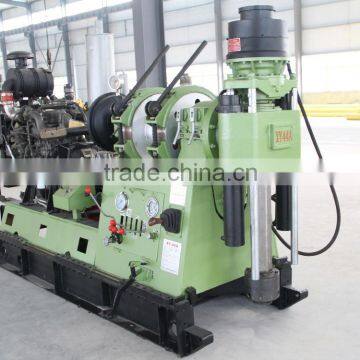

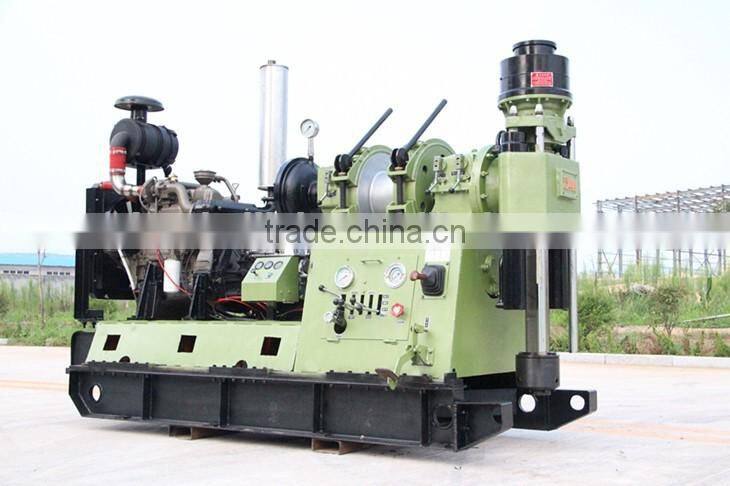

Core drilling rig XY-44A is mainly adapted to core sampling, exploration, foundation piles drilling with up 1400m drill capacity
1, It is an improved product based on XY-42 and XY-44 drilling rig.
2, It adopts guide rod structure and is equipped with water brake and manual oil pump
3, it is a kind of hydraulic-driven spindle, diamond-bit, small-diameter core drill with fairly powerful drilling force.
Bore depth core drilling 750~1400m
foundation pile 100m
hydrological well 300m
spindle rotation angle 0~360°
spindle rotary speed forward 83, 152, 217, 316, 254, 468, 667, 970 rpm
reverse 67, 206 rpm
spindle max. rotary torque 3200N.m
spindle stroke 600mm
ID of spindle 93mm

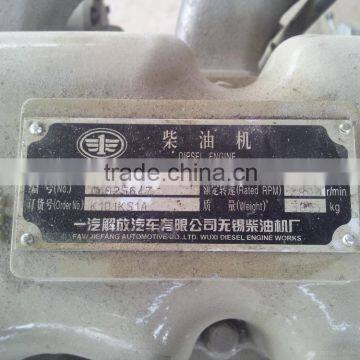

power electric motor 37kW, diesel 50KW
spindle max. lifting force 120KN
spindle max. pressuring force 90KN
overall dimension (L X W X H) 3042 x 1100 x 1920mm
steel wire diameter 17.5mm
steel wire length in winding drum 110m
max. hoist force 45KN
Weight (without power unit) 2300kg
4, It is mainly suitable for exploration of metal or non-metal solid mineral ore bed.
5, It is widely applied in core drill with diamond bit or hard tungsten-carbide-tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling.
6, It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
7, the structure is compact, light weight, powerful capacity, multiuse, steady performance, high responsibility and high standardization and generalization.
Product Picture

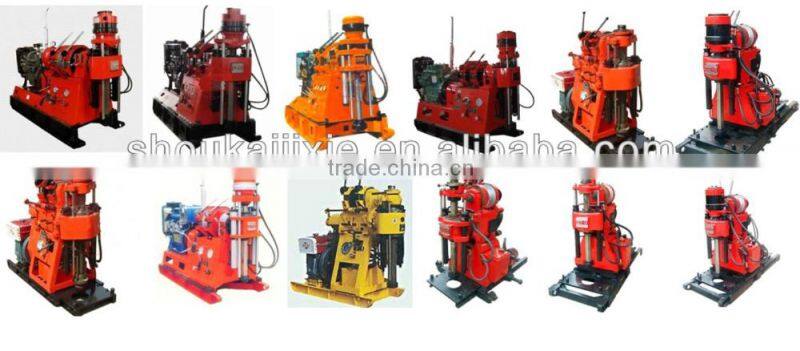

"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
