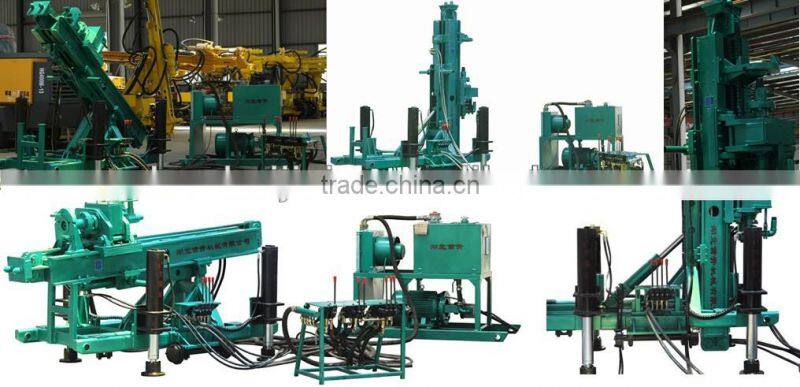

SKMG70A Anchoring Drilling Rig Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Core Drilling Rig
Power Type	Electric	Place of Origin	Hubei, China
Brand Name	shoukai	Model Number	SKMG70A
Usage	Water Well	Voltage	380v
Power(W)	22kw	Dimension(LWH)	3100x1000x1500mm
Weight	1400kg	Certification	ISO9001-2008
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1,full hydraulic power head
2,can be used in water conservancy, railway and road side slope
3,for anchoring hole, waterwell..

1, strong power head

Cycloid motor and gear reductor forms drilling rig's strong power head, Transmit is stable with big torque.

Wear resisting Nylon plate avoids guide rail from wearing when power head operates.

2, flexible chassis

Choosing different mine wheel components in accordance with different gauge in the tunnel to make the drilling rig move its position. Four support hydro-cylinders can move individually. It can adjust the horizontality and verticality of guide rail fast so that the rig can drill high precise horizontal bore and vertical bore.

The height of horizontal bore can be largely improved when four support hydro-cylinder move at the same time.

3, support hydro-cylinder control valve

This will allow the four supportive hydro-cylinders to move as you wish. operator can adjust drilling rig's position or bore position conveniently.

4, reliable propulsion device

It adopts hydro-cylinder and chain feeding pattern with compact structure, big lifting force and good stability

model	SKMG70A
horizontal bore depth	35~80m
vertical bore depth	50m
bore diameter	110~230mm
drilling rod diameter	Φ76 x 1500mm, Φ89 x 1500mm
bore dip angle	0~90°
whole rig horizontal up and down	350mm
power head torque	3900N·m
propulsion stroke	1800mm
mast stroke	500mm
max. lifting force	30KN
max. propulsion force	25KN
electric motor power	22kw
weight	1400kg
overall dimension	3100x1000x1500mm
