Specifications
1.Gas station cylinder cascade,250bar,2.4130X seamless steel material;
3.2x3,4520NM3;
4.Taylor valve;
4.BV, ISO

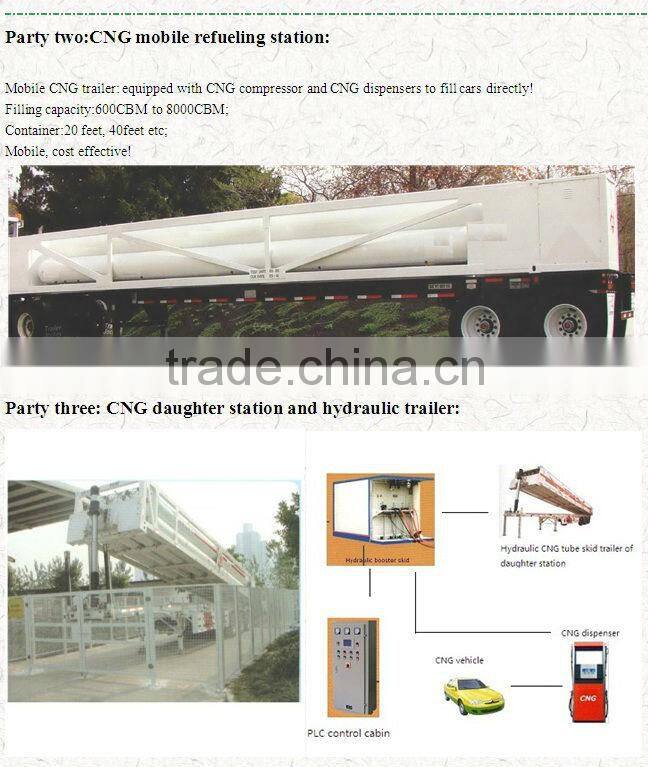

CNG mobile station and CNG daughter station
CNG mobile station to fill cars directly,
CNG daughter station with separate CNG compressors and CNG dipensers;
CNG cascade storage system for gas station.
Technical parameter of gas station trailer:
Working pressure:200bar;
CNG filling capacity:4540NM3/2933kg at 20 centigrade;
Burst testing pressure:334bar;
Woking temperature:-40 to 60 centigrade;
Dimension:12192x2438x1435mm.
Technical Parameter of gas station:
Working pressure:200bar;
Air displacement: no less than 1000NM3/h, 2000NM3/h;
Displacement is no less than 95%;
PLC control;
Continuous working;
Quick coupling transferred from one trailer to another: 3-5 minutes.
CNG hydraulic trailer is part of CNG daughter station. It can store and transport CNG to daughter station, then fill cars via gas dispensers. Working pressure 200bar, it’s same as the CNG cylinder for vehicle, less equipment and easy to operate.
Filling capacity:4540NM3 per trailer, it will take 3-5 minutes to transfer from one trailer to another.
It works together with CNG booster skid, CNG dispensers, etc, as daughter station. Filling capacity is 1000CBM or 2000CBM per hour. It fits for medium size demand of CNG consumption, such as 300 to 500 cars to be filled per day.

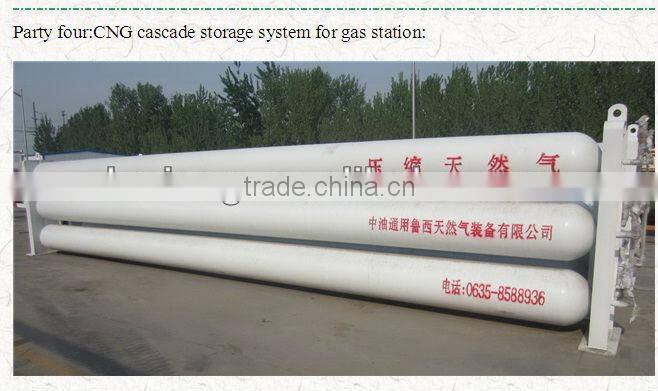

CNG cascade storage system is placed at gas station to store CNG.
Working pressure:250bar
Type:1x3-2120NM3, 2x2-2830NM3, 2x3-4250NM3, 1x3-1220NM3,2x2-1630NM3, 2x3-2440NM3,
1x3-1360NM3, 2x2-1820NM3, 2x3-2722NM3 etc.
Safety valve:Taylor from USA.
Company profile:
