Product Details
Brand Name: | RUNLAN | Model Number: | juice filter |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
RUNLAN bag filter introduction- juice filter
RUNLAN Bag filter is widely applied in worldwide industries and forming standard manufacture.bag filter can be customer made to meet different application requirement according to RUNLAN standard single filter or multiple bags filter.
RUNLAN multiple bag filter is equipped with 1-40 bags for your options, filter housing is designed ,manufactured ,checked and accepted by GB150 or ASME ,U,U2 code.
RUNLAN offers you the most optimized solution with diversification and advanced filter design, precision filter bags, automatic combination.
RUNLAN bag filter materials- juice filter :
The bag filter materials for housing can be made of high-quality stainless steel SS304(06Cr19Ni10), SS316L (022Cr17Ni12Mo2), carbon steel (16MnR),Hastelloy(C276), the filter can refer to steel made pressure vessel GB150 for design, manufacturing and inspection.
RUNLAN bag filter details for all types:

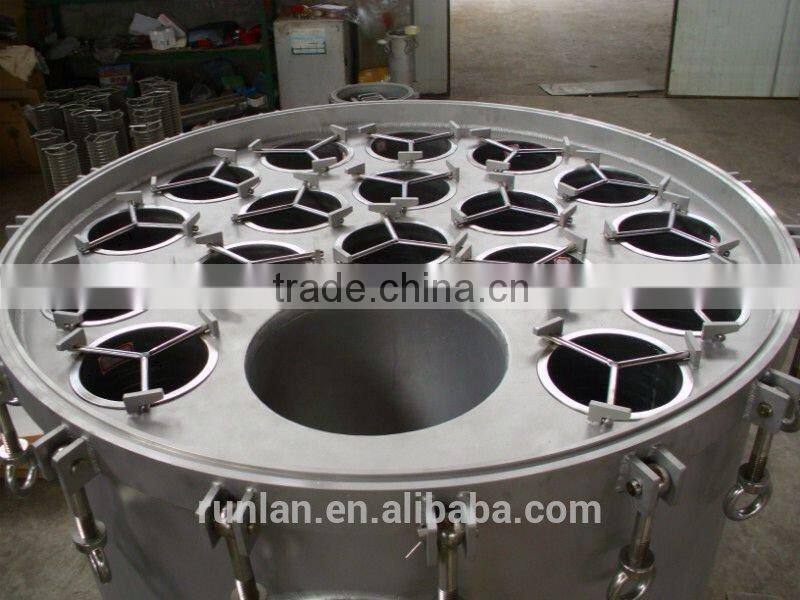

<1>.RUNLAN Multi bag filter- juice filter
Description >>

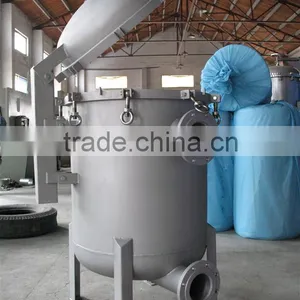

RUNLAN multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.

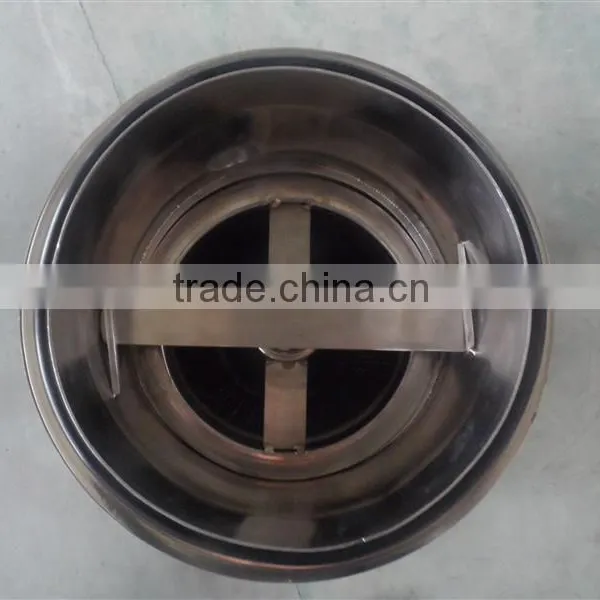

Tapered, electro-polished stainless steel perforated baskets.
Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.

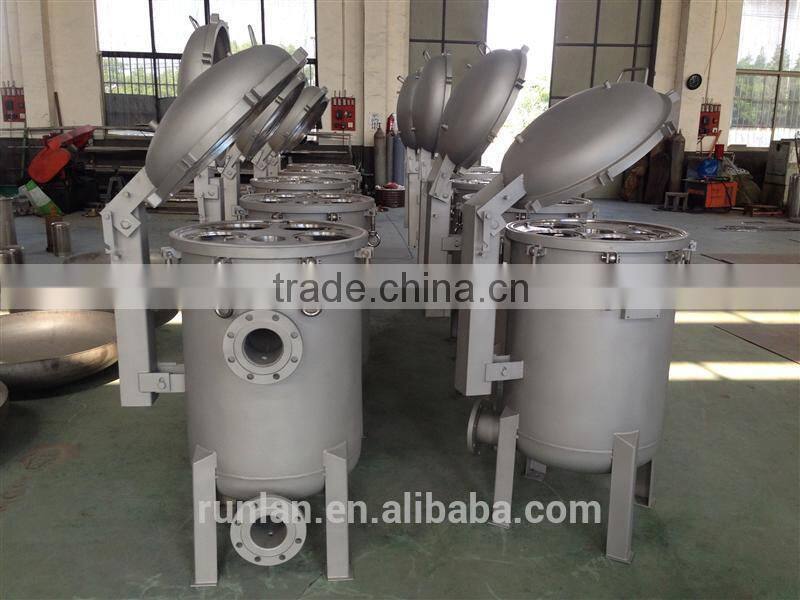

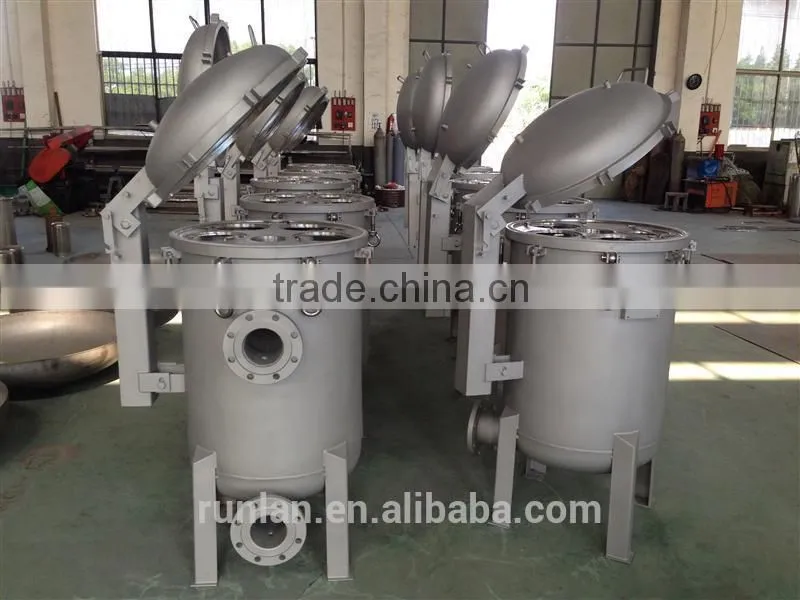

RUNLAN multi-bags filter products show:
RUNLAN multi-bags filter drawing and technical parameters>>
Bag Filter technical data | |||||||
Type | Bag type | Bag No. | Filtration | Max. flow | Pressure | Inlet / | Material |
RUNLAN-SGD-S-2-2 | 2 | 2 | 1 | 90 | 1.0 | 3-4" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-3 | 2 | 3 | 1.5 | 135 | 1.0 | 3-4" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-4 | 2 | 4 | 2 | 180 | 1.0 | 3-6" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-5 | 2 | 5 | 2.5 | 225 | 1.0 | 3-6" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-6 | 2 | 6 | 3 | 270 | 1.0 | 3-6" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-7 | 2 | 7 | 3.5 | 315 | 1.0 | 3-8" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-8 | 2 | 8 | 4 | 360 | 1.0 | 4-8" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-10 | 2 | 10 | 5 | 450 | 1.0 | 6-8" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-12 | 2 | 12 | 6 | 540 | 1.0 | 6-10" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-14 | 2 | 14 | 7 | 630 | 1.0 | 8-10" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-16 | 2 | 16 | 8 | 720 | 1.0 | 8-12" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-18 | 2 | 18 | 9 | 810 | 1.0 | 10-14" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-20 | 2 | 20 | 10 | 900 | 1.0 | 10-16" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-22 | 2 | 22 | 11 | 990 | 1.0 | 12-18" | A516/304/316L/F55 |
RUNLAN-SGD-S-2-24 | 2 | 24 | 12 | 1080 | 1.0 | 14-18" | A516/304/316L/F55 |
Accuracy :0.1, 0.2 .0.3 , 0.5, 1 , 5, 10, 15, 25, 50, 100, 200, 300, 400, 500, 600 Microns |

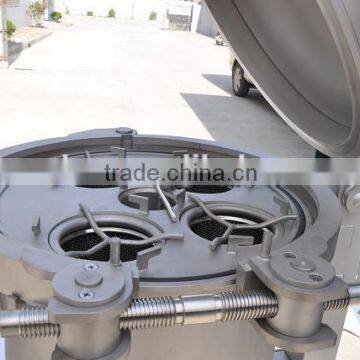

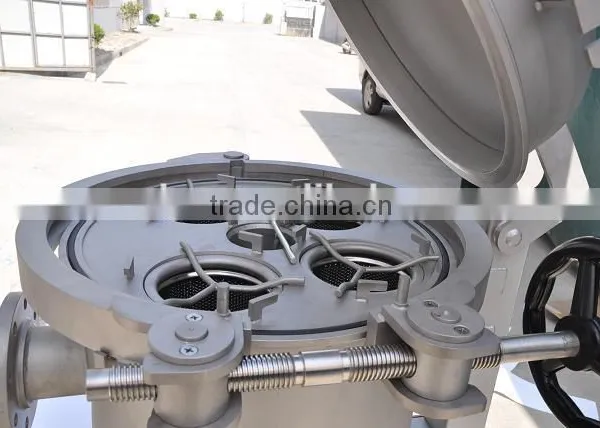

2,RUNLAN Quick open bag filter- juice filter
Easy to operate, high benefit of bag filter, suitable for the application of high flow and frequent replacement of filter bag technology, it is the most suitable filter for batch production process and security filtration
Technical parameters>>
Manufacturing standards: GB150 "CS", ASME "U" seal.
Working pressure: 0.6 Mpa to 5.0 Mpa.
Design temperature: 0 ~ 80 ℃ .
Applicable medium: water, chemicals, gas, etc, including flammable and explosive materials.
Pressure and temperature depends on the strength of filter materials and special condition, please consult with us
Features>>
Quick switch structure is the most simple easy and safety operating system to use, short the downtime to the shortest, boost productivity and reduce operating costs.
Three point pressure ring to ensure a good seal between filter and the filter bag, attached tools make operation very easy.
Spring auxiliary balancing mechanism makes the weight of the roof as light as nothing, only with the hand gently push and pull, can open the roof or down.
High quality O ring seal, ensure the operation is convenient, and reliable.
Side in and bottom out design ensures that the liquid can be completely emissions, at the same time using the tangent exports to choose.
Standard mode for 2 ~ 24 bag (1# and 2# bags), largest bag number is 40 bags.
3, SGD-IN Top-in single bag filter- juice filter
RUNLAN high performance top-in filter with advanced design ensures outstanding filtration efficiency, suitable for strict application requirement with combination of outstanding filtration performance, high reliability and convenient operation.
Suitable for harsh filtration requirements.
Top-in side inlet, liquid flows from top design will make the min liquid without filtering ,it is convenient to replace filter bags, meanwhile provide great sealing .
Technical parameters>>
Refer to HG21637-91,GB150-2011 design ,manufacture ,check and accept .
Flange standard: HG GB SH HGJ JB ANSI JIS.
Connection type: thread, hoop ,flange.
Inlet& outlet: 1-1/2”.
Drain size: 1/4”.
Filter bag model: 1 # 2 #, 3# , 4#.
Filtration accuracy: 0.5um-800um.
Design pressure:1.6Mpa./Design temperature: 120 ℃ .
Surface treatment: Surface treatment: glass ball for sand blast; polish; sanitary level polish

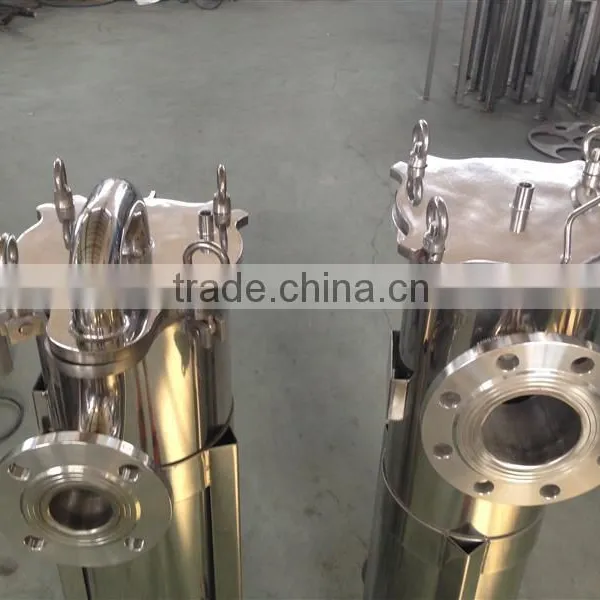

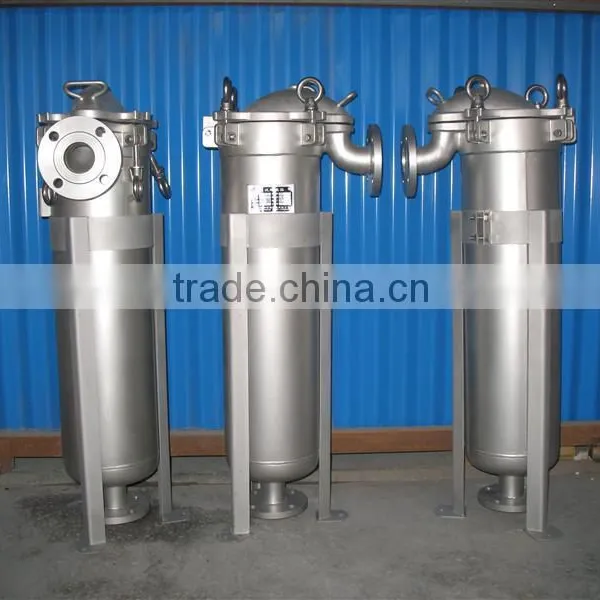

4, RUNLAN single bag filter specification- juice filter :
Side-in single bag filter is the very common filtration equipment.
RUNLAN standard side-in type filter bag including all components are all standardized, also can manufactured by line production or pressure vessel GB150.
Side-in single bag filter adopts standard lug bolt to fix, connection way is standard DN50 and DN 80 flange.
4 type normal size for filter bags: size 1,size 2,size 3 ,size 4.
5, RUNLAN specification- juice filter :

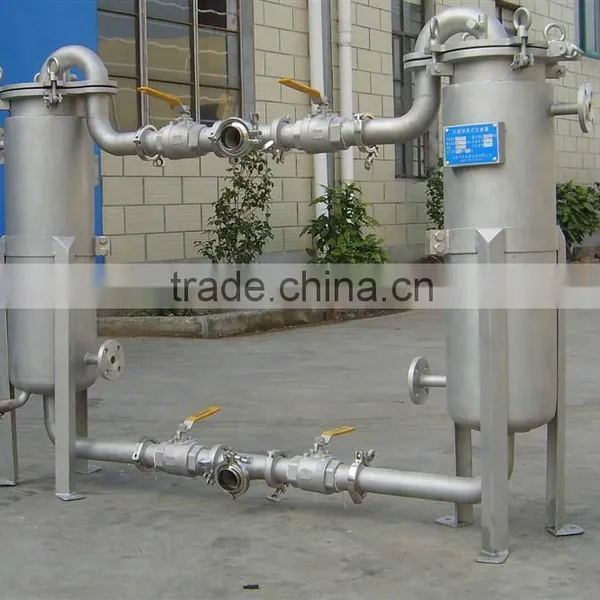

Duplex filter housings are for applications where the system flow cannot be shut down for filter bag change out. Either a butterfly or ball valve assembly is used to divert the flow between the two housings so that the isolated, out of service, housing can be serviced. The flow is never shut down.
