Home > Products > Enameled Copper clad Aluminum wire(ECCA wire) > 0.234mm Modern instrument ECCA wire

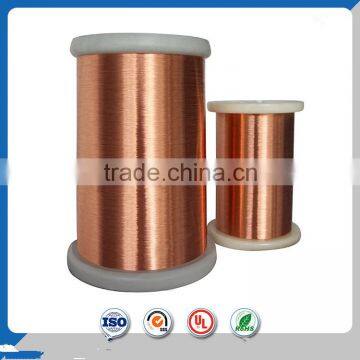

0.234mm Modern instrument ECCA wire
- 300 Ton / Tons per Month
- shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Lianwang | |
| Model Number | MI14 | Type | Bare | |
| Application | Other, electrical wire | Conductor Material | Copper Clad Aluminum | |
| Conductor Type | Solid | Insulation Material | Enameled |
Product Description
ECCA Applications:
1) Inner conductor of CATV coaxial cable
2) Inner conductor of 50ohms RF cable
3) Inner conductor of leak cable
4) Conductor of computer cable, LAN cable and others data cables
5) Inner conductor of micro coaxial cable
6) Strand wire
7) Conductor of Control cable
8) Conductor of automotive cable
9) Building distribution wire
Details Tech Information:
Name | ecca wire | ||
Type | Q(ZY/XY)-1/200 | ||
Diameter | 0.27mm | ||
Standard | IEC60317 | ||
Test Item | Unit | Technical Requirement | Test Result |
Appearance |
| bright and clean, Uniform color, | Ok |
Overall Diameter | mm | <=0.302mm | 0.295 |
Conductor Diameter | mm | 0.270±0.004 mm | 0.27 |
Roundness Tolerance | mm | <=0.004 mm | 0.002 |
Thickness of insulation film | mm | >=0.018mm | 0.025 |
Elongation |
| >=22 % | 30% |
spring-back angle |
| <=47 | 43 |
Flexibility and adhesion | winding test | 1D | 1 |
Jerk test | No Crack, and No losing adhesion | OK | |
heat shock |
| 0.630mm | ok |
cut-through resistance |
| 320C, 2Min no breakdown | 2 |
Resistance to solvent |
| 1H | 1 |
Breakdown Voltage | KV | >=2.2 KV | 7.6 7.0 6.8 6.2 7.7 |
scratch resisting(Average) | N | 3.25 N | 7.98 |
scratch resisting(Min) | N | 2.75 N | 7.12 |

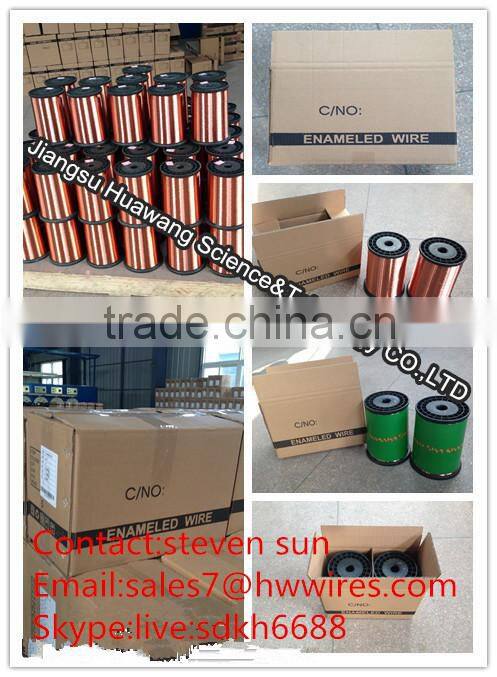

package |
| Meet the export standards | Ok |
Enamel Film continuity |
| <=25 /30m | 0 |

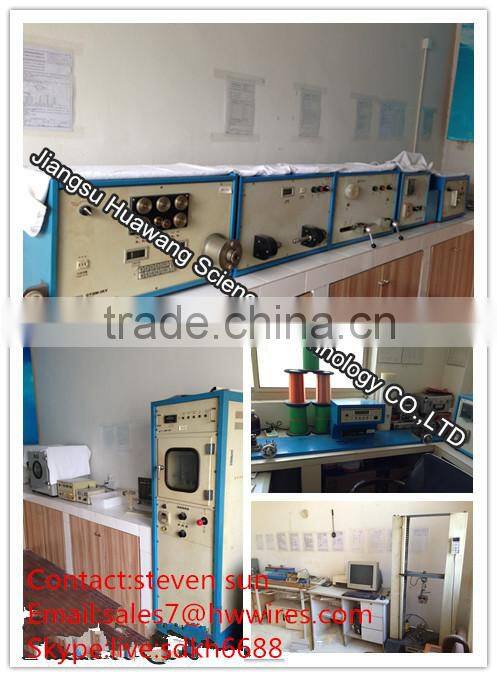

Quality Control Result |
| ||
