Home > Products > Enameled Copper clad Aluminum wire(ECCA wire) > Enameled CCA Wire QZY 0.26mm soft type made in china

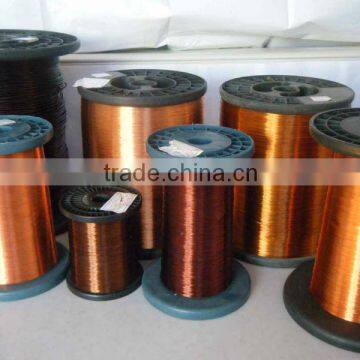

Enameled CCA Wire QZY 0.26mm soft type made in china
- 2000 Ton / Tons per Month
- shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Enameled CCA Wire QZY 0.25mm soft type made in china
-
Enameled CCA Wire QZY 0.24mm soft type made in china
-
Enameled CCA Wire QZY 0.23mm soft type made in china
-
Enameled CCA Wire QZY 0.22mm soft type made in china
-
Enameled CCA Wire QZY 0.21mm soft type made in china
-
Enameled CCA Wire QZY 0.20mm soft type made in china
Product Details
Place of Origin | Jiangsu, China | Brand Name | Lianwang | |
Model Number | 0.160mm 155class | Insulation Material | Other, Aluminum/Steel | |
Type | Other, UEW, EIW, PEW | Application | Other, transformer ,car motor, compressor, microwave oven, charger | |
Conductor Material | Copper | Jacket | Other, Enalmeled |
Product Description
Features of Copper clad aluminum enameled wire:
1.DC resistivity:the DC resistivity of copper clad aluminum enameled wire is 1.40-1.45 times that of the pure copper wire;for equivalent resistance value,the weight of copper- clad aluminum wire is only 1/2 that of the pure copper wire.
2.Supreme solderability; with a coat of pure coat,the Enameled CCA wire boasts the same brazeability ad the pure copper wire,no need for special treatment,meanwhile,Enameled CCA wire is coated witha thick copper layer to ensure that the solderbility shall not be harmed during the scrape
3.Light weight:the density of Enameled CCA wire is only 1/2.5 that of the pure copper wire of the same diameter,which can efficiently reduce the weight of coil;the replacement of copper wire with Enameled CCA wire can realize a cost saving of more than 30%.
Applications:
1. High-frequency transformers, general transformers;
2. Induction coils, magnetic coils;
3. Electrical machines, including household electrical machines, a variety of micro electrical machines, compressors, and other electrical machines with high environment requirements; d. Special electromagnetic wire for audio coils and CD drivers;
4. Electromagnetic wire for monitor deflection coils;
5. Various types of magnetic coils and induction coils;
Application Examples of Enameled CCA Wire:
Windings with requirements of light weight, relatively high conductivity, and good heat dissipation, especially the winding for high-frequency signals; electromagnetic wires for high-frequency transformers, general transformers, inductors, electrical machines, household electrical machines and micro-electrical machines;
Packaging & Shipping
Normal Packing:
spool size:PT-4,PT10,PT-15,PT-25
PEW | |
Thermal | B 130 F 155 |
Standard | Q/320292AAAB01-2009 |
Application | Fan, air-conditioner, electric tool, washing-machine, micro-motor, explosion-proof motor, ballast, dry-type transformer and other windings in electrical tool |
Features | Natural color |
Excellent resistance to abrasion and solvent, excellent electricity performance | |
Polyester-imide Enameled Aluminum Wire (PEW/EIW ) | |
Type | QZY |
Diameter | Round Aluminum Wire : 0.2mm-3.50mm |
Thermal | H 180 ºC |
Standard | Q/320292AAAB01-2009 |
Application | electric tool, washing-machine, compressor |
Features | dish brown color |
|
|
Polyester-imide Overcoated With Polyamide-imide Enameled Aluminum Wire | |
Type | QZY |
Diameter | Round Aluminum Wire : 0.2mm-3.50mm |
Thermal | HC(200ºC) C(220ºC) |
Standard | Q/320292AAAB01-2009 |
Application | Electric tool, washing-machine, compressor, |
Features | Dish brown color |
APPLICATION
