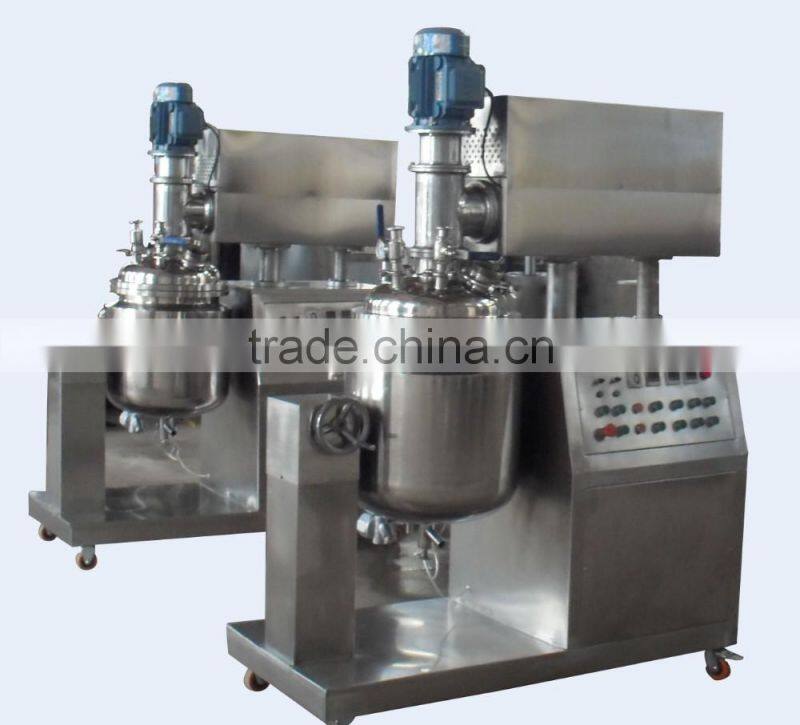

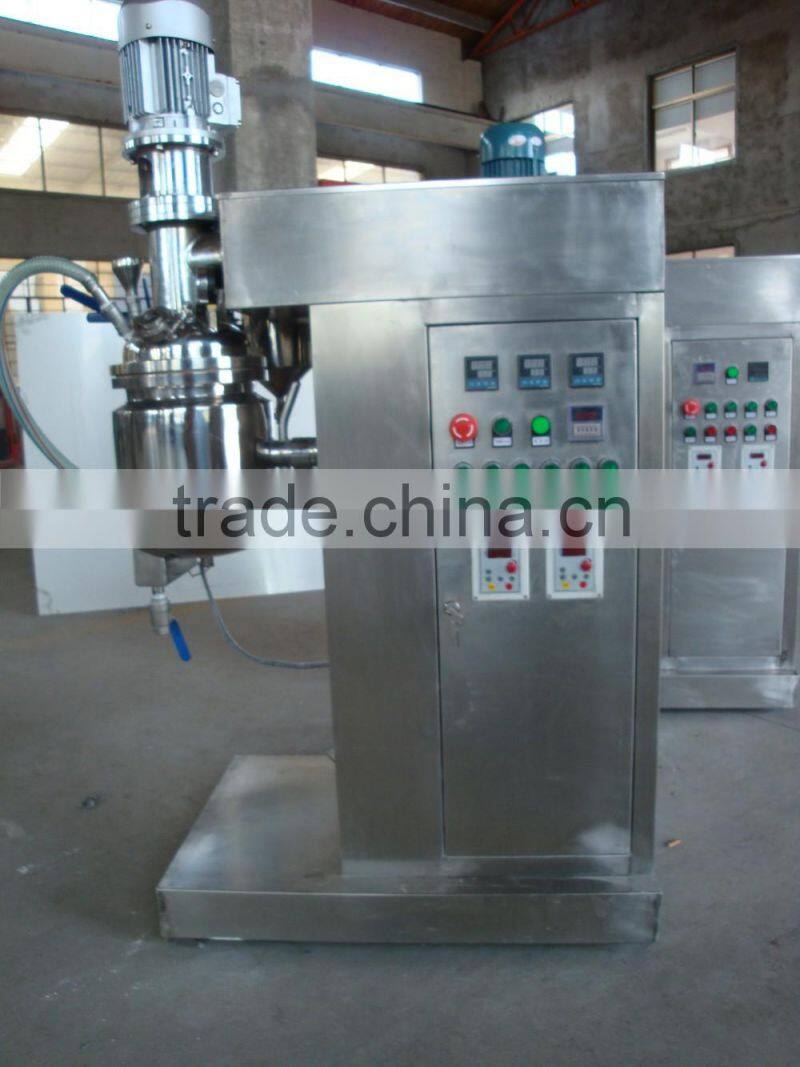

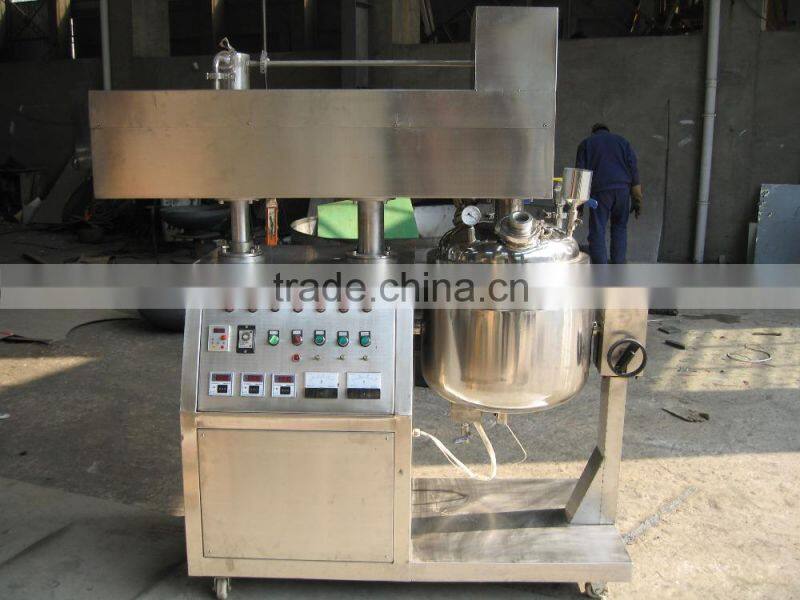

30L Emulsion Tank,Laboratory Emulsifier Homogenizer,Emulsion Reactor

The materials are heated and mixed in water pot and oil pot to be fully reacted.

Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the wall.

In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then,the materials are sent to the cut-off mixing until where they are finally crushed into small pellets of 200μm~2μm.

Because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from materiallotion making machine

1.Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.

2.Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.

3.With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.

4.Scraping unit is with moveable teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The teflon scrapers are maintained manually and easily without any tool.

5.Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.

6.All contacted parts of equipments are SUS316L,the product homogenized in vacuum and close vessel can be sanitary and high quality.

7.The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled.

Vacuum Emulsifying Mixer Series that is include: emulsification boiler(fluctuating nanhead, overturn boiler), water boiler, oil water, vacuum set, heating and temperature control systems, cooling systems, electric machinery control systems, ect.

Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo;

Pharmaceutical Industry: Ointment, Syrup, Injection;

Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine;

Chemical Industry: Polyester, Synthetic Fiber.

woodencases or container for sea freight or accoding to the clients requirements.

1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.

3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.

5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

6:Certificate services: we can provide related certificates to customers freely according to the request of customers.

7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.

1.The warranty is one year.

2. Long time technology supply and replace the machine parts.

3. Supply for training process, so your engineers can fit and debug machines by themselves.

1. The equipment can be customized according to customer's material, in order to meet the needs of the process. Like high viscosity , strengthen the function of homogeneous, heat sensitive materials etc.

2. Interface way can choose (hoop, thread, and flange).

3. Material contact parts can choose SS 304, SS 316, SS316L, 2Cr13,9Cr18 etc.

4. Sealing material: Standard rubber ring is silicone rubber, according to the media requests; you can choose fluorine rubber, EPDM, PTFE

5. Frequency speed regulation, non frequency  speed regulation, explosion proof design, non explosion proof design6. According to customer's workshop height, our engineers will be optimized to facilitate customer needs.
