Help CenterHight Speed Barbed Wire Making Machine Price
Related Products
-
Full Automatic Razor Barbed Wire Making Machine PriceUS$ 8,000 - 12,000MOQ: 1 Set -
Hot Sale Razor Barbed Wire Machine Cheap PriceUS$ 8,000 - 12,000MOQ: 1 Set
-
High Quality Razor Barbed Wire Making Machine FactoryUS$ 8,000 - 12,000MOQ: 1 Set
-
Full Automatic Gabion Wire Mesh Machine FactoryUS$ 29,000 - 35,000MOQ: 1 Set
-
High Quality Gabion Mesh Machine China SupplierUS$ 29,000 - 35,000MOQ: 1 Set

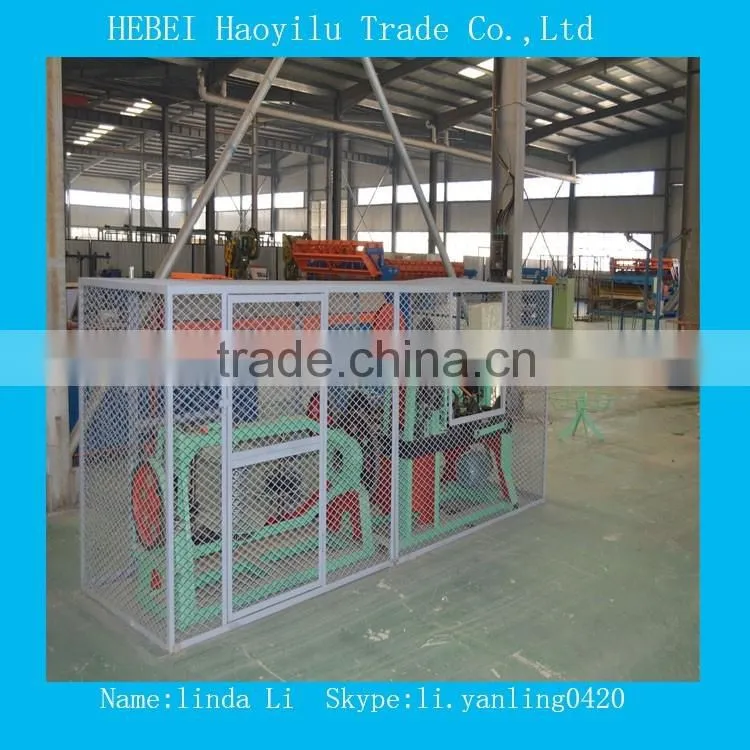

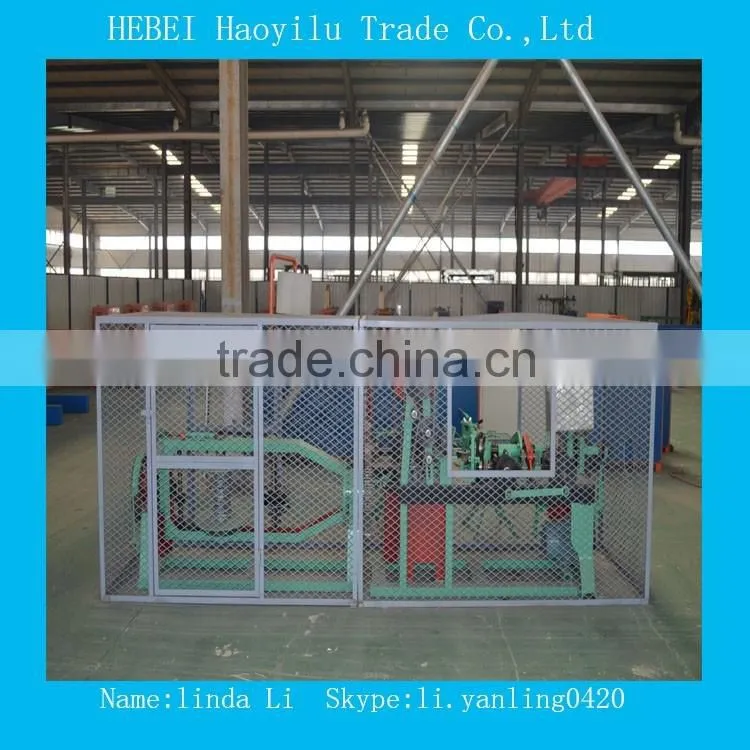

Barbed Wire Making Machine is designed to produce screens with double (or single). Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
Gauge of Strandand Barb in B.W.G. |
Approximate Length per Kilo in Meter |
|||
Barbs spacing 3" |
Barbs spacing 4" |
Barbs spacing 5" |
Barbs spacing 6" |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
Diameter, screen wire |
2.5-3mm |
Material, screen wire & barbed wire |
Low carbon steel wire, thermo-plated with zinc |
Diameter, wire for barbs |
2-2.5mm |
total weight |
1500 kgs |
Barb pitch spacing |
3,4,5,6in |
power of motor |
3 kw |
PVC-plated |
- |
||
Send Inquiry to This Supplier
