Help CenterTA3 2.6''' HSCI Tubular FeSiCr Anode
Related Products
-
2.6''X60'' HSCI Tubular AnodeUS$ 25 - 150MOQ: 50 Pieces -
FeSiCr Anode With M8 BoltUS$ 40 - 200MOQ: 30 Pieces
-
TA2 2.2'' High Silicon Cast Iron Anode for Cathodic ProtectionUS$ 10 - 200MOQ: 1 Piece
-
4.8''X60'' HSCI Tubular Anode Made by Chinese ManufacturerUS$ 40 - 200MOQ: 30 Pieces
-
4.8''X60'' Best Quality HSCI Tubular Anode for Cathodic Protection Made by Chinese ManufacturerUS$ 30 - 200MOQ: 20 Pieces
HSCI Tubular Cathodic Protection Anode
1.By chill cast & centrifugal cast with Center connection
2.Compact crystal structure, High density, Low consumption rate and Long operating life
3.Conform to ASTM A518M and or BS 1591:1975
Tubular Cast Iron Anodes
1/Specification:
Model |
O.D. mm (in) |
I.D. mm (in) |
Length mm (in) |
Nominal Area m2 (ft2) |
Nominal Weight kg (lb) |
HL-TC-7 |
66.0 (2.60) |
42.5 (1.67) |
1524 (60) |
0.316(3.40) |
21.0 (46.3) |
The dimensions above are nominal. HSCI tubular anodes can be customized in accordance with client's drawings and requirements.
2/Description:
HSCI tubular anode works well as deep well anode for cathodic protection of offshore platform, underground steel oil tube, underground cables, subsea pipelines, etc. It has high corrosion resistant capacity and high electrical conductivity, fully conforming to ASTM A 518M-99 Grade 3.
Their tubular design provides greater surface area over solid cast iron anodes of identical weight. This in turn lowers anode-to-earth resistance, decreases the current density on the surface of the anode and permits any generated gases to be distributed over a larger area. The tubular design also means the wire connection can be made in the center of the anode, thus eliminating the problem of end-effect consumption.
3/Chemical Composition(ASTM A 518M Gr3):
| Element | Content % |
| Silicon | 14.20-14.75 |
| Chromium | 3.25-5.00 |
| Manganese | 1.50 max |
| Carbon | 0.70-1.10 |
| Copper | 0.50 max |
| Molybdenum | 0.20 max |
| Iron | Remainder |

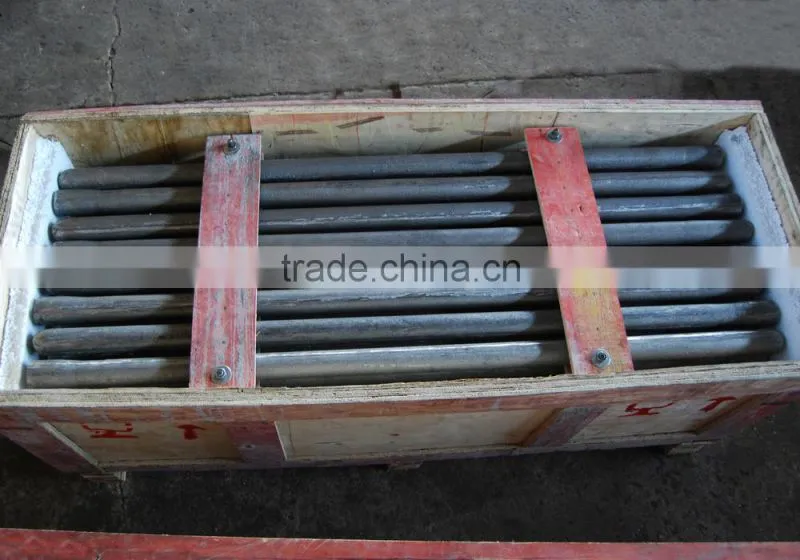

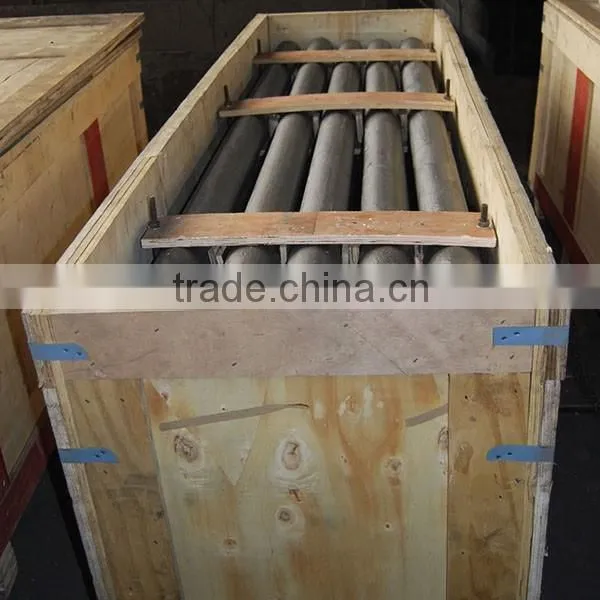

With export experience of over 14 years, we provide our customers with the most suitable seaworthy plywooden crates with best quality and reasonable price.
For conventional high silicon cast iron anodes, we can offer sample to our client for free. Since we have our own R&D department, we can customize irregular high silicon cast iron anodes as per client's specific requirements and drawings. We have Warranty Certificate for each batch of your ordered HSCI anodes. Our After-sale team is always at the service for the questions after our customer clear the anodes.
Jiaonan Haili Valve Casting Co., Ltd. (Haili) established in 2000, is an export-oriented machinery manufacturer. Haili was certified by ISO9001:2008 in 2011. The company is located in a beautiful seaside city - Huangdao district of Qingdao City with convenient transport. The main products include high silicon casting iron anodes, machine parts, train parts and so on. Its annual output is beyond 1500 tons, and 90% of the products are exported to America, Europe, Africa, Middle East and all around Asia. The company has almost 100 employees, including 10 senior technicians and 2 senior engineers. Haili sincerely expects to cooperate with customers from all around the world to achieve mutual benefits and create a glorious future together.
