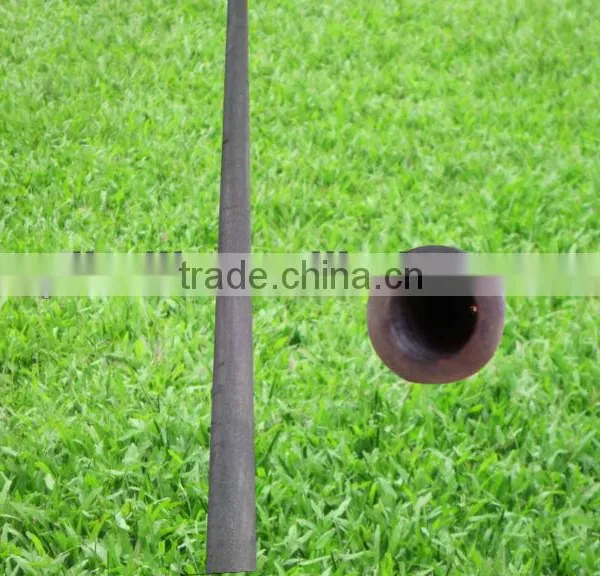

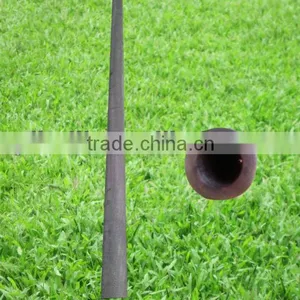

Help Center2.6''X84'' High Silicon Iron Tubular Anode
Related Products
-
2.6''X60'' HSI Tulular AnodeUS$ 38 - 160MOQ: 50 Pieces -
2.6''*60''HSCI Tubular AnodeUS$ 38 - 160MOQ: 50 Pieces
-
3.8''X60'' HSCI Tubular AnodeUS$ 40 - 200MOQ: 30 Pieces
-
2.6''X60'' Cast Iron Tubular Anode Made by Chinese ManufacturerUS$ 25 - 150MOQ: 10 Pieces
-
4.8''X60'' HSCI Tubular Anode for Cathodic ProtectionUS$ 40 - 200MOQ: 30 Pieces
Specifications
High Silicon Iron Tubular Anode1.By Centrifugal Cast
2.Greater Density, Uniform Structure
3.Highly Anti-corrosive
Silicon Cast Iron Tubular Anodes
1/Anode's Specification:
Model |
O.D. mm(in) |
I.D. mm(in) |
Length mm(in) |
Nominal Area m2(ft2) |
Nominal Weight kg(lb) |
HL-TS-2 |
66.0(2.60) |
42.5(1.67) |
2134(84) |
0.442(4.76) |
28.8(63.5) |
Note: The above dimensions are nominal. The silicon iron tubular anodes' sizes can be modified as per customers' drawings and requirements.
2/Anode's Description:
With tubular cast iron anodes, effective protection is provided at a low and very uniform consumption rate. To form these anodes, a centrifugal casting is employed. Using this technique, the anodes are spun during casting, to exert pressure. This pressure gives the anodes a denser, more homogeneous surface that is resistanct to deterioration. Their tubular design also provides greater surface area over solid cast iron anodes of identical weight. This in turn lowers anode-to-earth resistance, decreases the current density on the surface of the anode and permits any generated gases to be distributed over a larger area. Moreover, the tubular design means the wire connection can be made in the center of the anode, thus eliminating the problem of end-effect consumption.
3/Chemical Composition:
(ASTM A 518M-99(2008) Gr3)
Element |
Content% |
Si |
14.20-14.75 |
Cr |
3.25-5.00 |
Mn |
1.50 Max |
C |
0.70-1.10 |
Cu |
0.50 Max |
Mo |
0.20 Max |
Fe |
Remainder |
