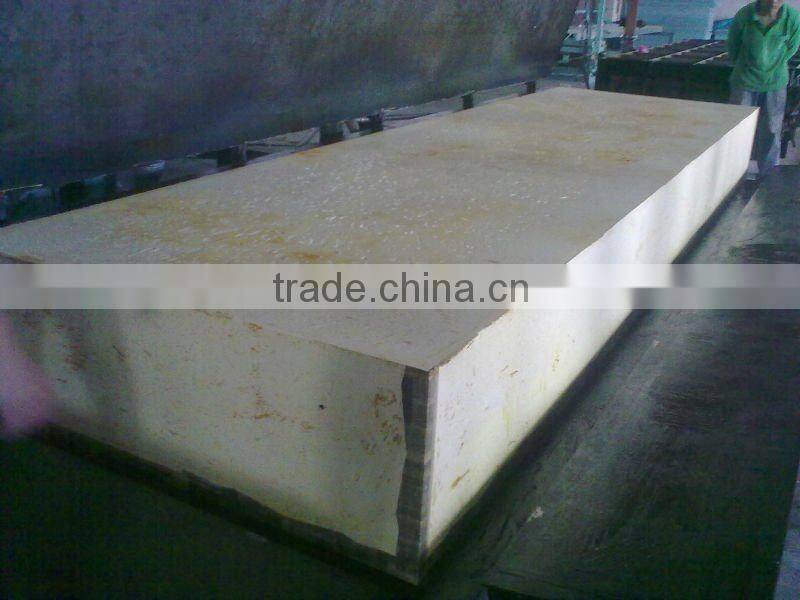

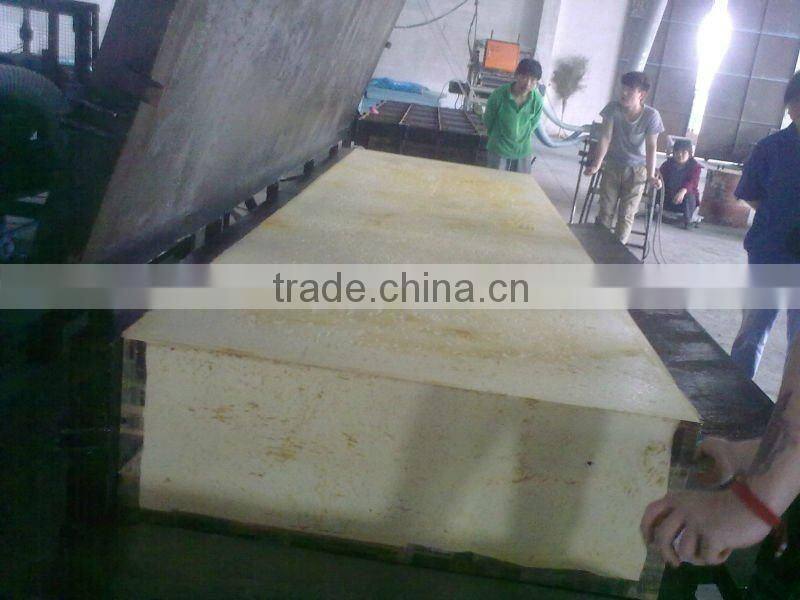

Polyurethane Blend Polyether Polyols for Block Foam
- shanghai
- T/T D/P D/A
You May Like
-
Polyurethane Blend Polyether Polyols for Block Foam
-
Rigid Polyurethane Blend Polyols Foam System for Pipeline Insulation
-
Pipe Shells
-
Rigid Polyurethane Blend Polyols Foam Systerm for Pipeline Insulation
-
Polyurethane polyether polyols for pipe insulation made by rigid foam polyether
-
The data provided above are typical value, which are tested
Product Details
| Place of Origin | Shanghai, China | Brand Name | Dongda | |
| Model Number | DQT-502S |
Product Description
Specifications
Polyurethane Blend Polyether Polyols for Block FoamPolyurethane Blend Polyether Polyols for Pipe Shells
DQT-502S
Products Introduction
This product is a type of blend polyols with HCFC-141B as blowing agent, which is specially researched for rigid PUF to produce thermal insulation pipe shells. It is widely used in steam pipes, liquefied nature gas running pipes, oil pipes and other fields. The characteristics are as follows:
(1)good flowability, by regulating formula to suit different pipe diameters.
(2)good high temperature-resistance performance
(3)excellent low temperature dimensional stability
Physical Property
Appearance Hydroxyl value mgKOH/g Dynamic viscosity(25°C) mPa.s Density (20°C) g/ml Storage temperature °C Storage stability Month | Light yellow to brown yellow transparent liquid 300-450 200-500 1.14-1.18 10-25 6 |
Technology and Reactivity Characteristics
Component temperature is 20°C, the actual value is varied according to pipe diameter and processing condition.
| Manual mixing | High pressure machine |
Ratio(POL/ISO) Rise time s Gel time s Tack free time s Core Free density kg/m3 | 1:1.0-1.1.20 20-40 80-120 ≥120 25-35 | 1:1.0-1.20 15-35 60-100 ≥100 25-35 |
Foam Performance
Molded foam density Closed-cell rate Thermal conductivity(15°C) Compressive strength Water absorption Dimensional stability (24h,100°C) (24h,-30°C) High temperature-resistance | GB 6343 GB 10799 GB 3399 GB/T8813 GB 8810 GB/T8811 | 40-65kg/m3 ≥90% ≤0.020mW/(m.K) ≥150kPa ≤3(V/V)% ≤1.5% ≤1.0% ≤120°C |
