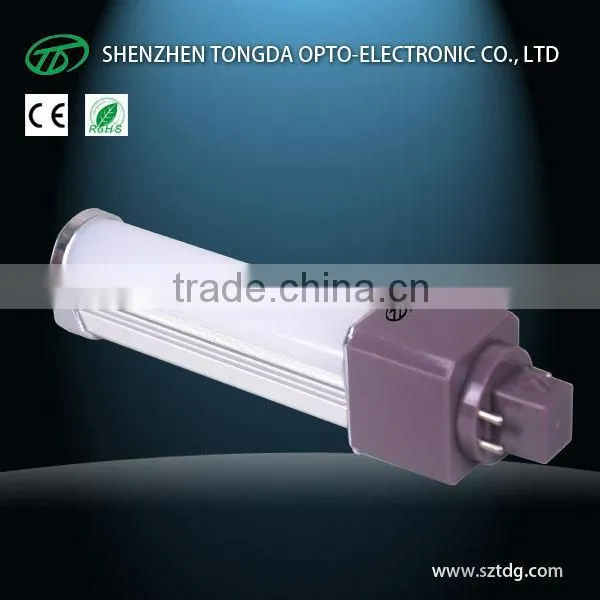

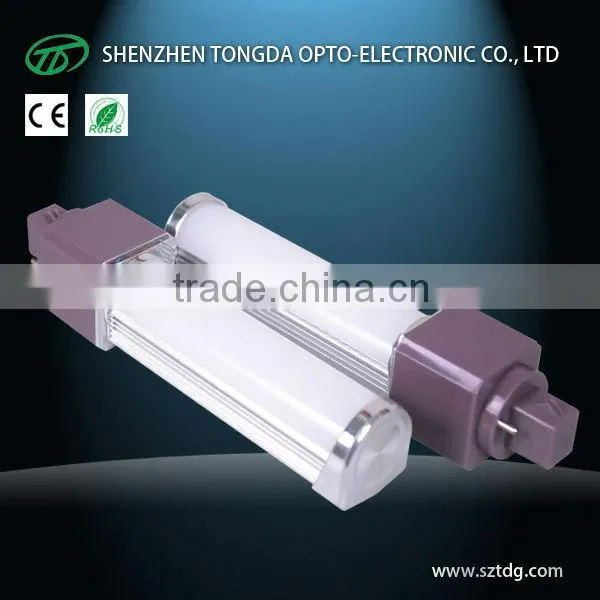

6w 2pins 12pcs Smd5050 Cool White G24 Plc Led Lamps

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

TD-G23-6WT

Shenzhen TongDa Opto-Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TD

Model Number TD-G23-6WT

Specifications

6w ce rohs approved g24 pl lamp with g24d base
1.Samsung 5630,CRI>80Ra
2.isolated driver,pf>0.93
3.rotatable

Specification

Dimension(mm)	Φ 35* 146mm
Led Source	SMD5630
Led Quantity	12PCS
Power	6W ± 1W
Lumen	≥500±100lm
Color Temperature	Warm white	Natural white	Cool white
	2800-3000K	4000-4500K	5000-6500K
CRI	>85	>85	>85
Input Voltage	90-265VAC
Line Frequency	50-60 Hz
Beam angle	180°
Lamp base	G24 LED(2 pin or 4 pin)/G23/E27
Material	Aluminum alloy +PC cover
Life Span	30,000hours
Warranty	3 years
Applications	Indoor lighting/Public place lighting
Package	White box/customized

Features :

1.Isolated driver can ensure safeness,PF above 92%.

2.Super brightness 5050,20lm/piece LED.

3.Beam angle is flexible and largely to 120 degees.

4.Energy-saving, Environment friendly no UV or IR radiation.

5.Replacement of traditional bulbs less than 20% power consumption.

6.Wide voltage design available.

7.Three years warranty and good service before,during and after sale.

8.Long life span:more than 50,000hours

Advantage:

Using G24 rotatable base for LED PL lamp, the direction of the light can be adjusted
Taiwan Original Epistar LED as light source, with the features of high brightness, low light decay and long lifespan etc
Unique design with Square shape and Round shape, increasing heat-dissipation area for better heat-sink, decreases the LED lighting attenuation, prolong LEDs working lifetime
Base type: G24(2Pin and 4Pin) and E27 are Optional; Clear PC cover and frosted PC cover are optional
Widely applicable as a replacement of traditional energy-saving plug-in tube lamp

Application

Good replacement for the traditional PL Lamp, suitable for window display in fashion shop
Fashion show, notebook pc shop,hotel,entertainment place
LED PL Lamp installation is easy, remove the traditional bulb, then connect 85-265VAC directly, Without ballast, and put the LED PL Lamp on as the following photos
