Specifications
Corn Snack Extruder Chips1. Food Grade Stainless Steel
2. Screw Self-cleaning
3. 1 Year Warranty
4. CE, ISO9001
Hot Products ! ( Click the pictures to see the details )
---------------------------------------------------------------------------------------------------

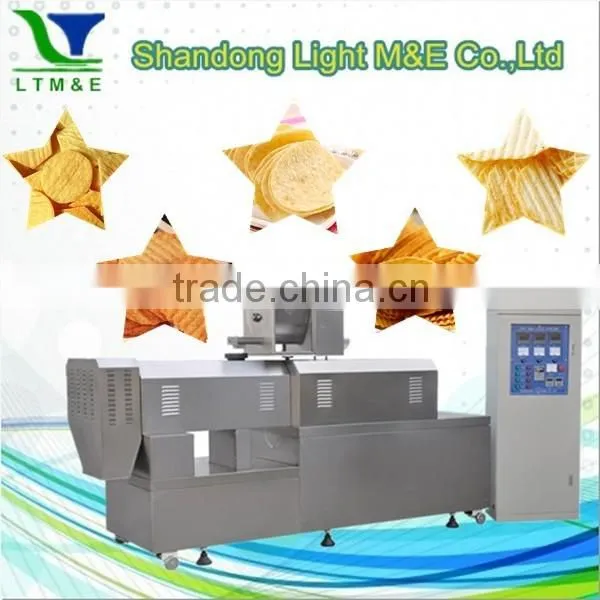

Corn Snack Extruder Chips
I. Description of Corn Snack Extruder Chips
Doritos/Tortilla/Corn chips are kinds of snacks made from corn powder, which are cut and then baked. The main raw materials are corn powder, vegetable oil, salt and water. Although usually made of yellow corn(as pictured), they also can be made of white or red corn. After frying and flavoring, we get very crunchy triangle or other shapes chips, which are popular with both children and adult.
1. Raw Materials: Corn Powder as Usual
2. Products: All shapes of Doritos, shapes like round, triangle, hexagon etc. The size of products can be changed according to clients’ requirements.
3. Capacity: 120-150 KG/H, 200 -250KG/H
4. Flow Chart: Mixing—Extrusion —Shaping —Separating—Frying/Baking —Flavoring
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.

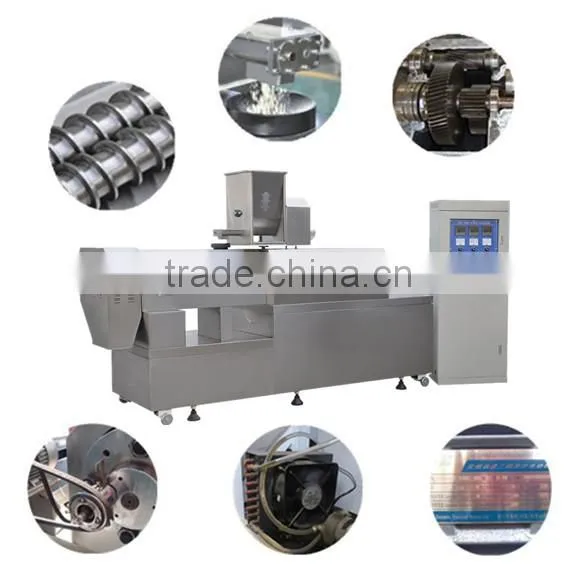

II. Details and Physical
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

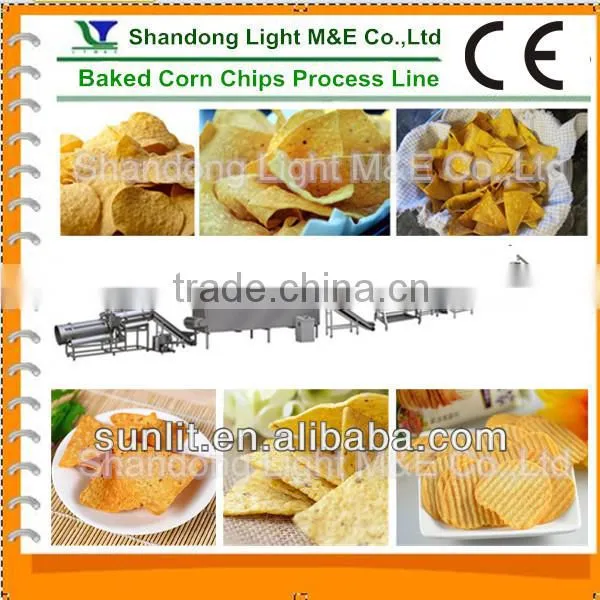

III. Sample Picture of Corn Snack Extruder Chips
IV. Technical Parameters of Corn Snack Extruder Chips
Model |
Installed Power |
Main Motor Power |
Output |
Size(LXWXH) |
LT65 |
34kw |
22kw |
150kg/h |
2550x900x1850mm |
LT65L |
47kw |
30kw |
180kg/h |
3500x950x1850mm |
LT70 |
53kw |
37kw |
200-250kg/h |
3200x760x2000mm |
LT70L |
54kw |
37kw |
200-250kg/h |
3200x760x2000mm |
LT85 |
99kw |
75kw |
500-700kg/h |
3800x1100x2350mm |
LT85A |
101kw |
90kw |
800-1000kg/h |
3800x1100x2350mm |
VI. Service & Turnkey Solution
a.) Consultation service before, during,and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
VII. Company Image
VIII. Glories of Company
IX. World Market
