Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Variable Power Supply 12V120V,24V60A,40V40A,48V30A,110V15A,300V5A 1600W Constant Voltage Constant Current Switch Power Supply

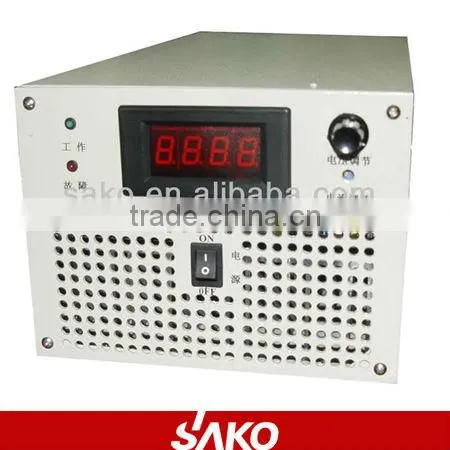

Variable Power Supply 12V120V,24V60A,40V40A,48V30A,110V15A,300V5A 1600W Constant Voltage Constant Current Switch Power Supply

Variable Power Supply 12V120V,24V60A,40V40A,48V30A,110V15A,300V5A 1600W Constant Voltage Constant Current Switch Power Supply thumbnail-1
Variable Power Supply 12V120V,24V60A,40V40A,48V30A,110V15A,300V5A 1600W Constant Voltage Constant Current Switch Power Supply photo-1
US$ 100 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAKO
Model Number:
SKK-1600W-48
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAKO
Model Number SKK-1600W-48
Output Power Other, >500W
Output Type Single
Input Voltage 220V
Output Voltage 48V
Output Frequency 47-63Hz
Output Current 30A

Specifications

Constant voltage constant current switching mode adjustable power supply,output voltage adjust from 0V,current adjust from10%

Model:9V110A 12V120A 15V100A 24V60A 30V60A 36V40A 36V50A 40V40A 45V30A 48V30A 60V30A 100V15A 110V15A 150V10A  220V8A 300V5A



Features

High reliability

100% full load burn-in test

Protections:over load ,over voltage,short circuit

1 year warranty

can be customized according to customer's requirements



Technical Datasheet

Input Voltage Range:175~264VAC

Input frequency:47-63Hz

Inrush Current:100A/230V (cold state)

Leakage Current:<0.7mA/230VAC

Line Regulation:≤±0.5% at full load

Load Regulation: V1:≤±0.5%,V2:≤±1%

Output Voltage Adjustment Range:V1:15%~105% rated output voltage

Overload Protection:110%~150%

Withstand Voltage:I/P-O/P:1.5KVAC/1min; I/P-FG:1.5KVAC/1min;O/P-FG:0.5KVA/1min

Rise,Hold Up Time:50ms,20ms (typical)

Working Environment:-10 ~ 50 °c, 20% ~90%

Storage Environment:-20 ~ 85 °c, 20% ~95%

Safety Standards: design refer to GB4943,UL60950,EN60950

EMC Standards: design refer to GB9254,EN55022 class A, EN61000-3-2.3 , EN61000-4-2.3.4.5.6.8.11

Cooling Method:Wind

Ripple Noise:50mV

Size:280x145x115mm

Weight:6.5kgs



Specifications

Item No. DC output Load Regulation Ripple and Noise Efficiency
SKK-1600W-5 5V200A 0.5% 160mV 87%
SKK-1600W-12 12V120A 0.5% 160mV 88%
SKK-1600W-15 15V100A 0.5% 180mV 88%
SKK-100W-30 30V60A 0.5% 190mV 88%
SKK-1600W-48 48V30A 0.5% 200mV 88%
SKK-1600W-60 60V30A 0.5% 200mV 89%
SKK-1600W-110 110V15A 0.5% 600mV 87%
