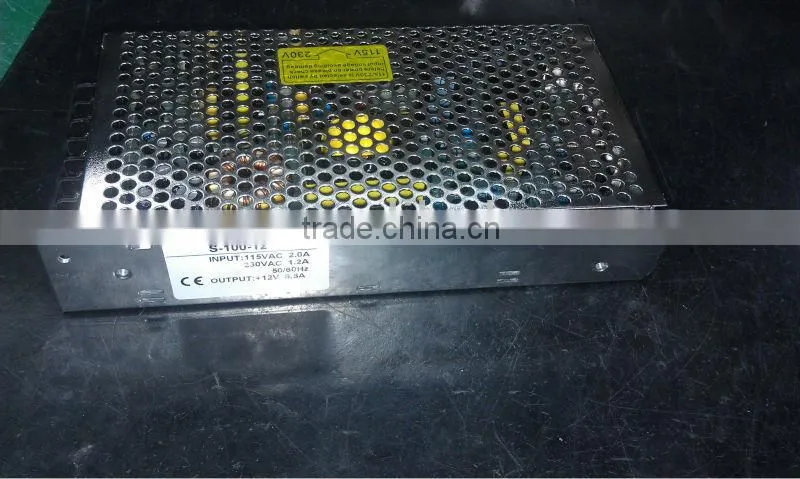

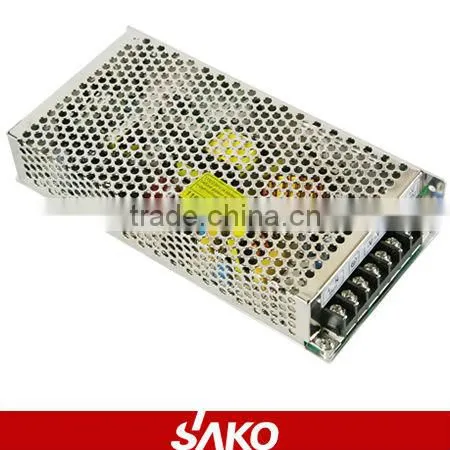

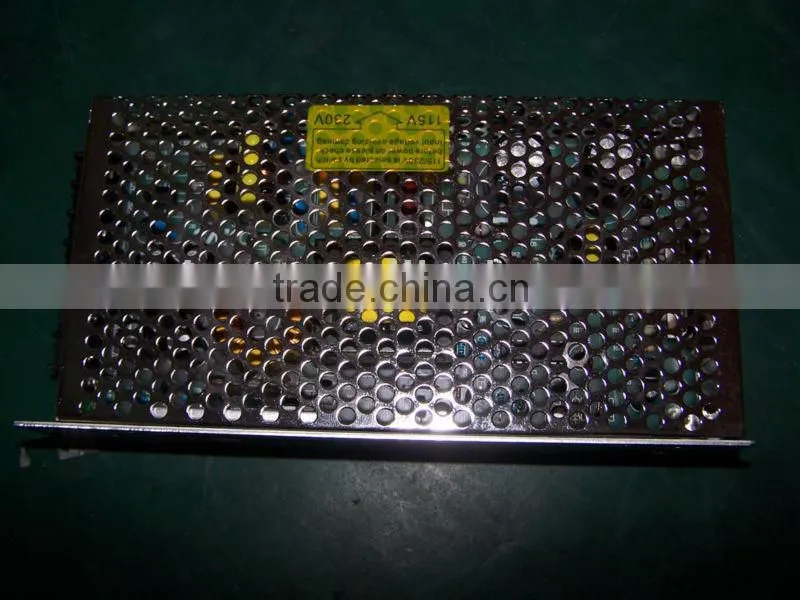

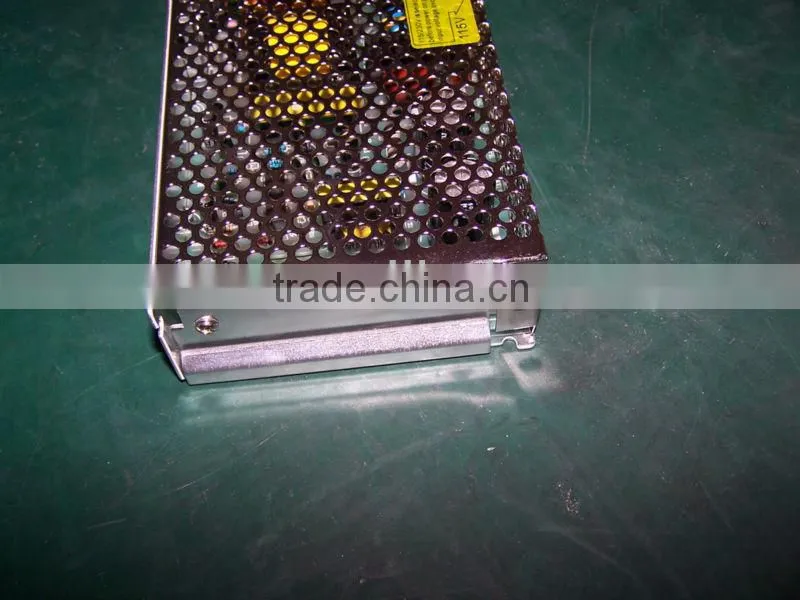

New 12V DC 8A 100W Regulated Switching Power Supply Factory Price

SKK-S-100W

DC output voltage

5V

7.5V

12V

15V

24V

27V

48V

Rated output current

20A

13.6A

8.5A

6.7A

4.5A

3.7A

2A

Output current range

0~20A

0~13.6A

0~8.5A

0~6.7A

0~4.5A

0~3.7A

0~2.1A

DC output power

100W

102W

102W

100.5W

108W

100W

100W

Ripple and noise

80mVp-p

100mVp-p

100mVp-p

120mVp-p

120mVp-p

150mVp-p

150mVp-p

DC voltage adjustment range

4.5-5.5V

6.75-8.25V

10.8-13.2V

13.5-16.5V

21.6-26.4V

24.3-29.7A

43.2-52.8V

Output voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

±1%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, rise, hold up time

200ms,50ms,20ms

Input voltage range

88~132VAC/176~264VAC  47-63Hz

Input current

2.4A/115V 1.2A/230V

Efficiency

76%

77%

78%

76%

78%

78%

80%

AC Inrush current

Cold start current 30A/115VAC  6A/230VAC

Leakage current

<1mA/240VAC

Overload protection

105-150%hiccup mode auto-recovery

Over voltage protection

115-135% rated output voltage

Working temperature & humidity

-10°C~+50°C,20%~90%RH non-condensing

Storage temperature & humidity

-20°C~+85°C,10%~95%RH non-condensing

Vibration

10~500Hz,2G 10min./1cycle, period for 60 min. each along X, Y, Z, axes

Withstand voltage

I/P-O/P 3KVAC I/P-FG 0.5KVAC O/P-FG 0.5KVAC 1min

Isolating resistor

I/P-O/P,I/P-FG  ,O/P-FG:500VDC/100MΩ

Safety standards

GB4943  UL60950-I EN60950

EMC standards

GB9254  EN55022 class A

MTBF

50,000hrs min. MIL-HDBK-217F (25ºC)

Dimensions

199x98x38mm

Packaging

0.56kg,36pcs/0.040CBM

Note

1.     All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature

2.     Tolerance: includes set up tolerance, line regulation and load regulation

3.     Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor
