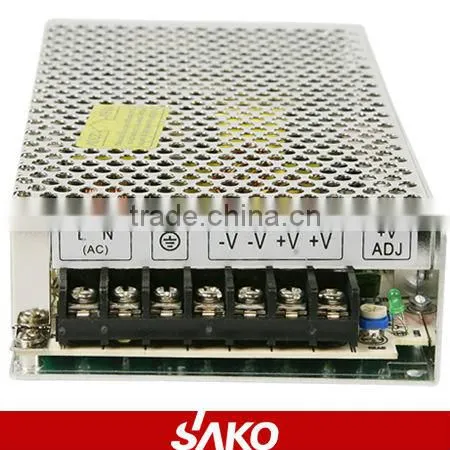

China Supplier Enclosed Frame 12V DC 10A 120W Single Output Switch Mode Power Supplies for LED Strips

China Supplier Enclosed Frame 12V DC 10A 120W Single Output Switch Mode Power Supplies for LED Strips thumbnail-1
China Supplier Enclosed Frame 12V DC 10A 120W Single Output Switch Mode Power Supplies for LED Strips photo-1
US$ 5 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAKO
Model Number:
SKK-S-120W
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAKO
Model Number SKK-S-120W
Output Power 101 - 200W
Output Type Single
Input Voltage 220V
Output Voltage DC12V
Output Frequency 50/60
Output Current 10A

Specifications

1.High quality,low price
2.IN:AC110V/220V 50/60Hz
3.OUT:DC12V 10A
4.Closed frame metal case

120W Single Output Switching Power Supply

Features

AC input range selected by switch

100% full load burn-in test

Protections:over voltage,over current ,short circuit,over load

Fixed switching frequency at 25KHz

High reliability,low cost

Cooling by free air convection

1 Year warranty



Specification



Model SKK-S-120-12 SKK-S-120-15 SKK-S-120-24 SKK-S-120-27 SKK-S-120-48
Output DC Voltage 12V 15V 24V 27V 48V
Rated Current 10A 8A 5A 4.5A 2.5A
Current Range 0-10A 0-8A 0-5A 0-4.5A 0-2.5A
Rated Power 120W 120W 120W 120W 120W
Ripple & Noise (max.) Note.2 10 mVp-p 120 mVp-p 120 mVp-p 120 mVp-p 150 mVp-p
Voltage ADJ. Range 10.8-13.2V 13.5-16.5V 21.6-26.4V 24.4-29.7V 43.2-52.8V
Voltage Tolearance Note.3 ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Rise,Hold Up Time 50ms,20ms at full load
Input Voltage Range 90~132VAC/176~264 VAC selected by switch 255~370 VDC  47~63 Hz
AC Current 2.8 A/115 V 1.4A/ 230 V
Efficiency 76% 74% 76% 77% 78%
Inrush Current (max.) Cold start 30A/115VAC 60A/230VAC
Leakage Current <1 mA/240VAC
Protection Over Load 110%~150%  rated output power
Protection type:Shut down o/p voltage,re-power on to recover.
Environment Working Temp,Humidity -10°C~+50°C;20%~90 %RH non-condensing
Storage Temp,Humidity -20°C~+85°C;10%~95 %RH non-condensing
Temperature Coefficient ±0.03%/°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle, period for 60 min. each along X, Y, Z, axes
Safety &EMC Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG :100MΩ/500VDC
Safety Standard Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022
Others MTBF 50,000hrs min. MIL-HDBK-217F (25ºC)
Dimension 199x97x38mm(L*W*H)
Packing 0.61kg,36pcs/0.040CBM
Note 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
