Rubber Tile Mould For Rubber Floor Tile Machine
Feature:
Floor tile work flow: Elevating - Mixing - Fixed-quantity filling -Pressure forming -Mould unloading - Forming tiles - Maintenance - Finished products
1.this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable.
2. This series of products have high press in unit area , so that we can ensure the quality .
3.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.
4.The working layer number can be designed as the request.
5. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine .
6.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.
TECHNICAL PARAMETERS:
XLB-DQ 550X550x4/0.5MN | |
The total pressure |
50 ton |
The plate size |
550x550x45mm |
The plate unit pressure |
1.6 Mpa |
The daylight |
180 mm |
The daylight No |
4 |
The piston stroke |
400 mm |
Hydraulic system pressure |
16.0 Mpa |
The piston diameter |
Φ200 mm |
The piston quantity |
1 |
The motor power |
3.0 kw |
The weight |
About 2200 kg |
The Main material of rubber tile making machine:
1. platen 40# steel
2. frame Q235 (A36)
3. ram chilled cast iron
4. hydraulic cylinder: EG35#
5. upper base carbon steel
6. bottom base nodular cast iron
7. plate form : nodular cast iron
8. seals: from Taiwan
9. electric element: Simens
10. hydraulic element: Huade , China-Germany joint-stock company
11. The press contain main unit+ hydraulic power pack +electric cabinet.
12. The press is automatically: auto-exhausting, auto-stuffy, auto-count vulcanizing time, auto mould-opening/closing.
Main pictures of the machine:
Mold of the rubber tile:
Main parts of the machine:

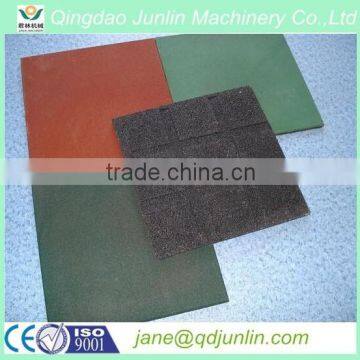

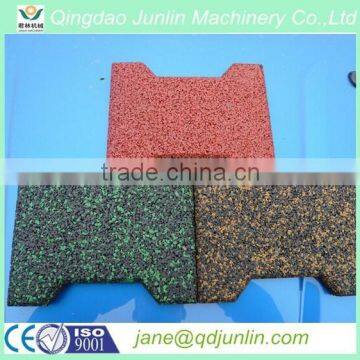

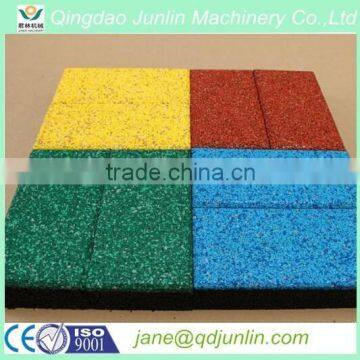

Final products:
Processing workshop show;
After-sales service:
One year guarantee for whole machines
24 hours technical support by email
Calling or door - to -door service
Provide videos for each machine
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled.
Our customer:
Our certificate:
CE ISO9001 SGS
Welcome to send inquiry and visit us to check the quality!
