Solar System SL-300/600W

Solar System SL-300/600W thumbnail-1
Solar System SL-300/600W thumbnail-2

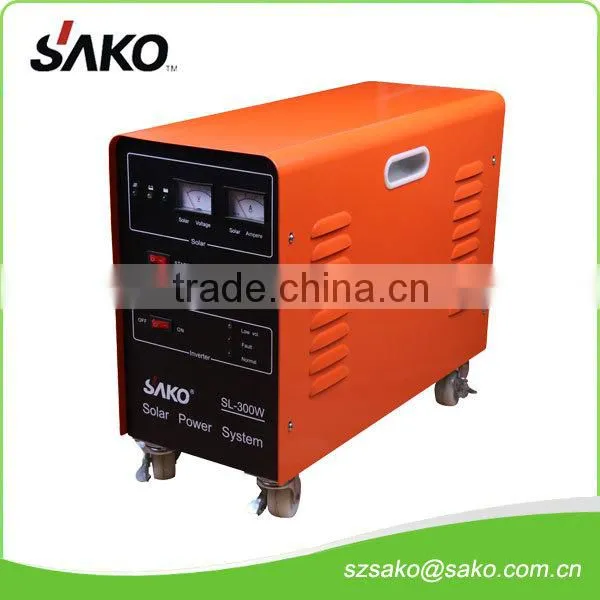

Solar System SL-300/600W photo-1

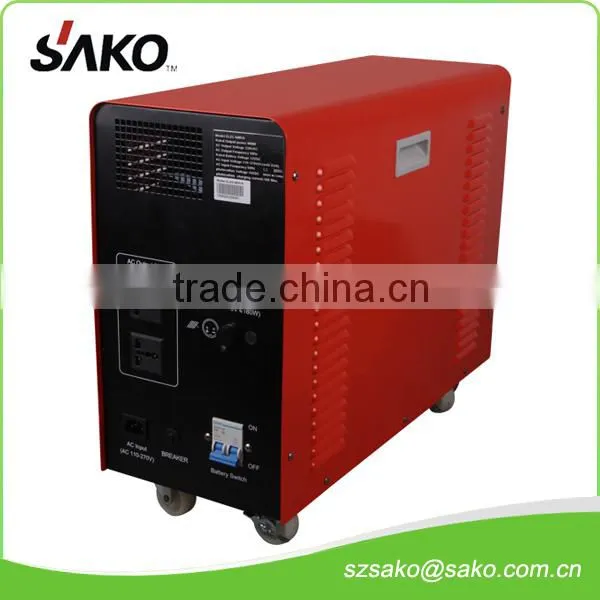

Solar System SL-300/600W photo-2
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO.OEM,ODM
Model Number:
AC 300W,600W
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO.OEM,ODM
Model Number AC 300W,600W
Specification Normal
Application Home
Output Voltage (V) DC 12V, 24V
Load Power (W) 300w,600W
Solar Power (W) 100w,200w
Work Time (h) 4-6hours

Specifications

controller build inside
meter show A and voltage
all in one system
with DC output function

Solar power integrated  AC system
Wide Input solar voltage Range
compact design ,with solar controller,battery,and inverter built inside,save more power and space ,high efficiency

short circuit protection
Over voltage,Low voltage,over discharge.over load protection
display meter and LED show all the conditions
only solar panel and load connection outside, more conveniently
easy to move anywhere
With DC 12v/24v and AC 220 doulbe output voltage together



MODEL
 solar -SL300W Solar -SL600W
SPECIFICATION
Solar panel INPUT parmeter
rated input panel (WATT) 100W 200W
peak Input Voltage Vmp(V) 17.5vdc 35vdc
Peak Input Current Imp(A) 5.71A 5.71A
open -voltage Voc(v) 21.5V 43V
material polycrystal /single crystal
shortage current Isc(A) 6.46A 6.46A
Battery
Battery built inside(VA) 12V/100AH 12V/100AH*2
over charge protected voltage(v) 14.5V±0.2V 29V±0.2V
over charge back voltage 13.2V   26.4V±0.2V
over discharge protected voltage 10.5V±0.4V 21V±0.2V
 OUTPUT
Output Power(W) 300 600
Output Voltage  12VDC 3A & AC 220V±10% 24VDC 3A & AC 220V±10%
Output frequency 50HZ±5% 50HZ±5%
output waveform step wave step wave
back up time(full load) >10hour(36W AC lamp or 50w ACFAN)  >10 hours(one PC)
overload &shortage protection yes
Output overload capacity 120%
PROTECTION
Protection over load/ over voltage/
 low battery/ low voltage/ Input low/ hight voltage/ short current protection
AMBIENT
Noise(dB) < 5 (1 mter)
working Temperature 0~40 degree(storage -40°C~50°C)
Humidity 0~95% ( no condensation)
Sea Level(m) <=1500
DIMENSION
 L×W×H 514.0*212.8*404.6MM 524.0*372.8*427.6MM
Weight(Kg)

solar system SL-300/600Wsolar system SL-300/600Wsolar system SL-300/600Wsolar system SL-300/600Wsolar system SL-300/600Wsolar system SL-300/600W
